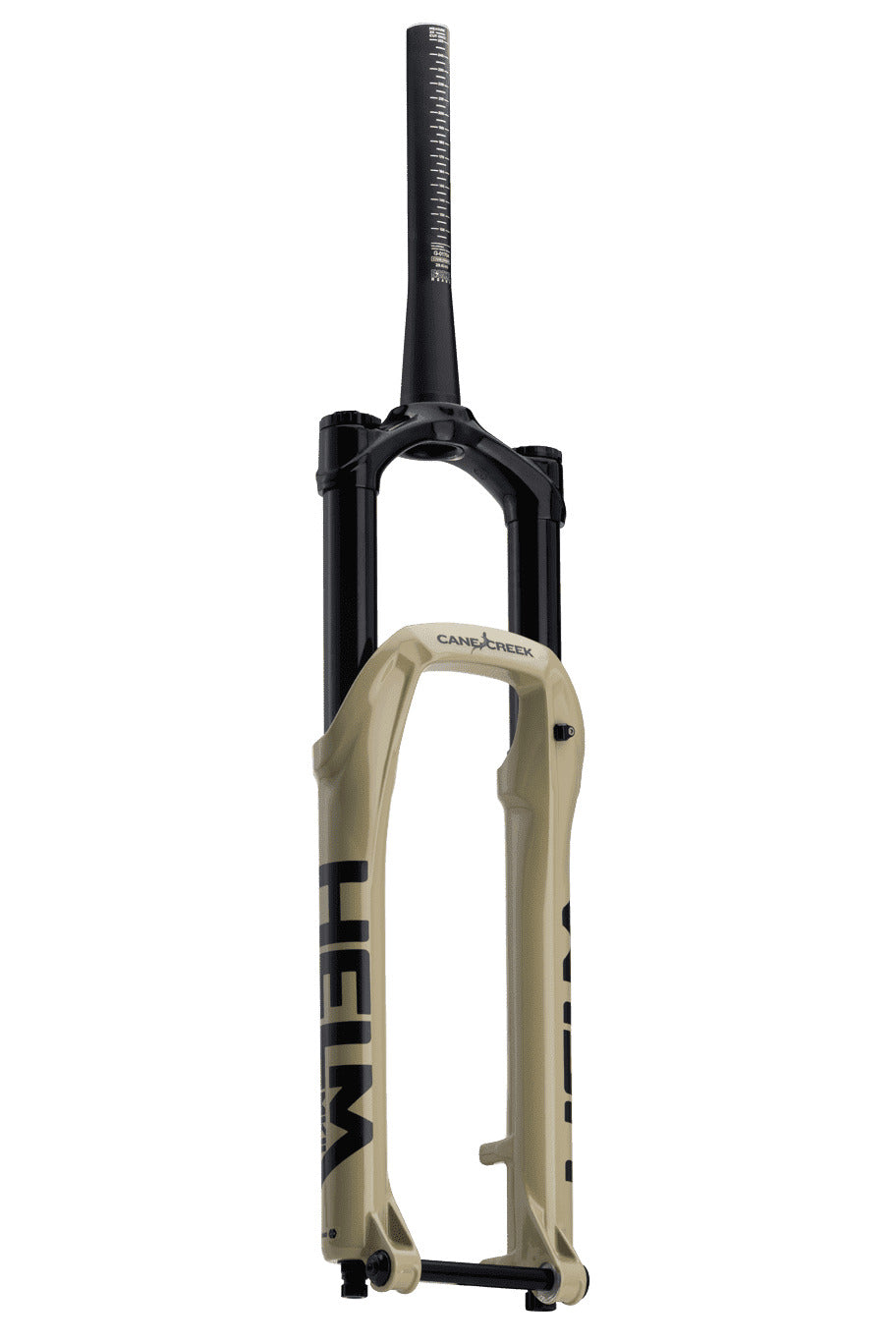

Helm MKII Air 29 Tan
Introducing our latest limited edition Helm MKII 29 in Tan.
All Helm MKII forks are easily travel adjusted at home. Helm MKII’s include a newly designed damper featuring a new compression and mid-valve circuit for increased support and control while a new SKF oil seal head and 2.5 weight damper oil reduce friction and provide a more supple ride-feel.
Helm MKII 29 Tan forks are no longer available to order direct. Available at select retailers.
Technical Documents
More Details
Fully Revised Damper Tune
- New compression and midvalve circuit for increased support and control
- New SKF low friction oil seal head cartridge
- High performance damper oil from Motorex

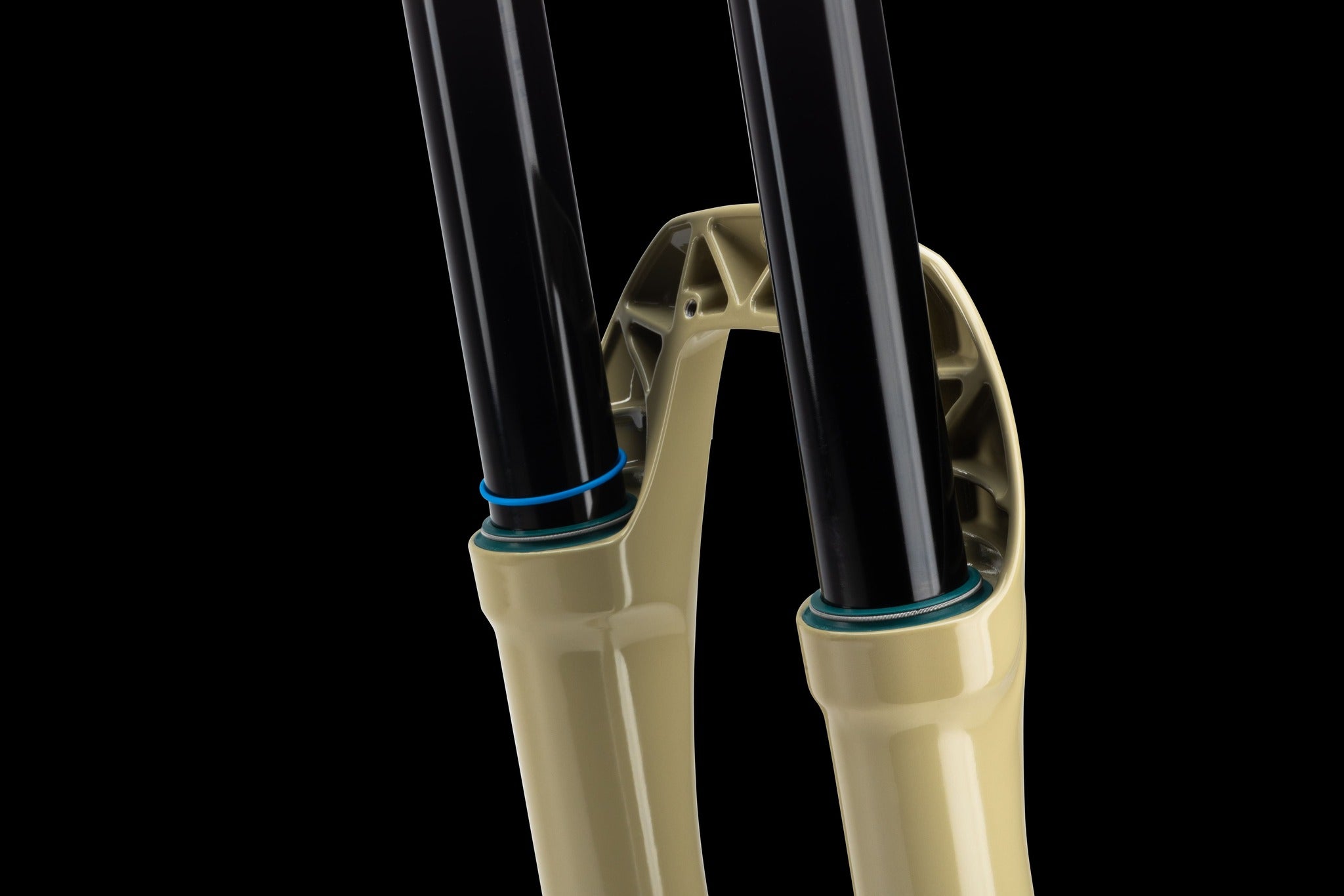

New SKF low friction wiper seals installed in the castings.
Redesigned Air Spring
- Increased air volume for better traction and suppleness
- New air piston for reduced friction
- New threadless air seal head for easier travel change
Marketing Assets
Details
PRODUCT SPEC
2080 grams
High Speed Compression, Low Speed Compression, Low Speed Rebound
High speed compression (10 positions)
Low speed compression (17 positions)
Low speed rebound (10 positions)
Independent positive air spring
Independent negative air spring
Indexed travel adjust system (8 positions)
Double-Air spring system. High volume positive and negative air springs
35mm
180mm. *If you are using a Hope Tech brake on a Helm fork, you will need to use a 200mm rotor with appropriate adapter.
Preset to 160mm travel. Optimized for 130 – 160mm travel.
"D-Loc" 15mm Bolt-on thru axle / 15mm x 110 BOOST spacing / 44mm
64mm wide by 749mm tall (29) / 75mm wide by 739mm tall (27.5+)
Tan
