Helm DJ
*Orders containing suspension are built to order and ship in 5-7 days. Please call customer support to confirm inventory.
Built by us – Built for us.

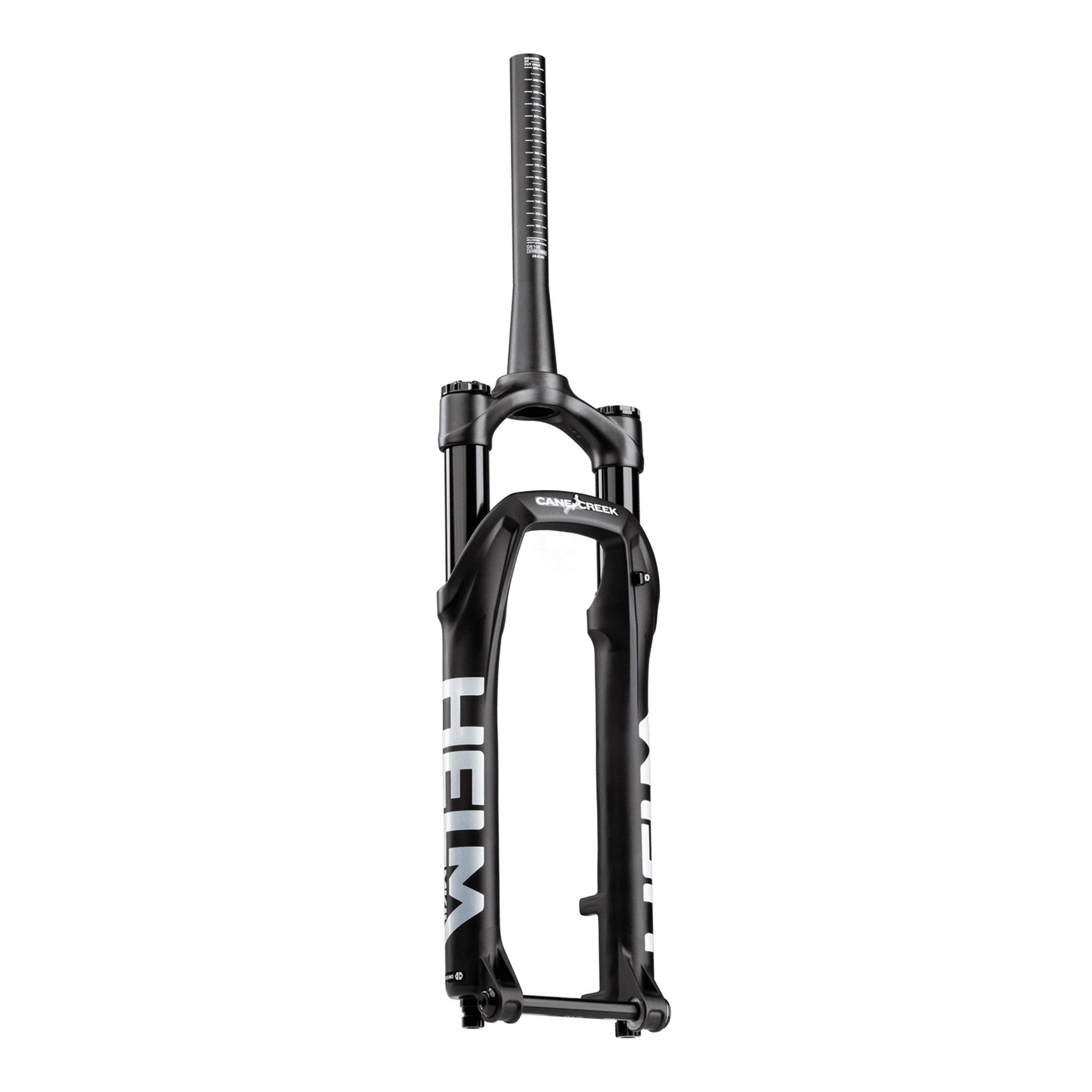

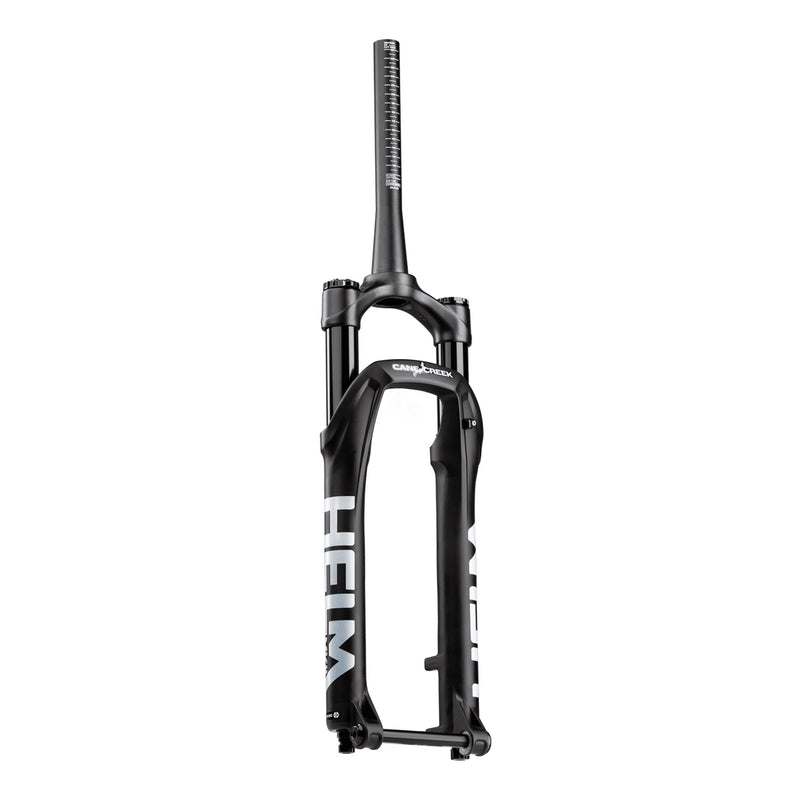

The Cane Creek Helm DJ combines the proven performance, reliability and strength of the HELM MKII’s chassis with a new short travel air spring optimized for Dirt Jumps, Dual Slalom and Street riding.
Highlights:
- Preset at 90mm travel and a 483mm axle to crown to accommodate a 26″ wheel without changing the geometry of your dirt jump bicycle
- 15mm X 110mm BOOST SPACING (Additional adapter kits may be required for compatibility)
- 35mm stanchion
- Handbuilt by riders in Fletcher, NC
Technical Documents
More Details
Helm DJ Setup Recommendations:
Air Pressure – Between 95 and 125 psi based on rider weight and sag / ride height preference.
Rebound – Between 5 and 10 clicks from closed due to the increased air pressure.
Marketing Assets
Details
PRODUCT SPEC
2140g
35mm
Preset at 90mm.
27.5" chassis designed to be used with a 26" wheel.
65mm wide by 714mm tall
15mm X 110mm Boost Spacing
483mm
44mm
Bolt-On
Matte Black with Metallic Silver Decals
