Tigon

SKU: BDD0022
Sale price$500.00 USD

*Orders containing suspension are built to order and ship in 5-7 days. Please call customer support to confirm inventory.

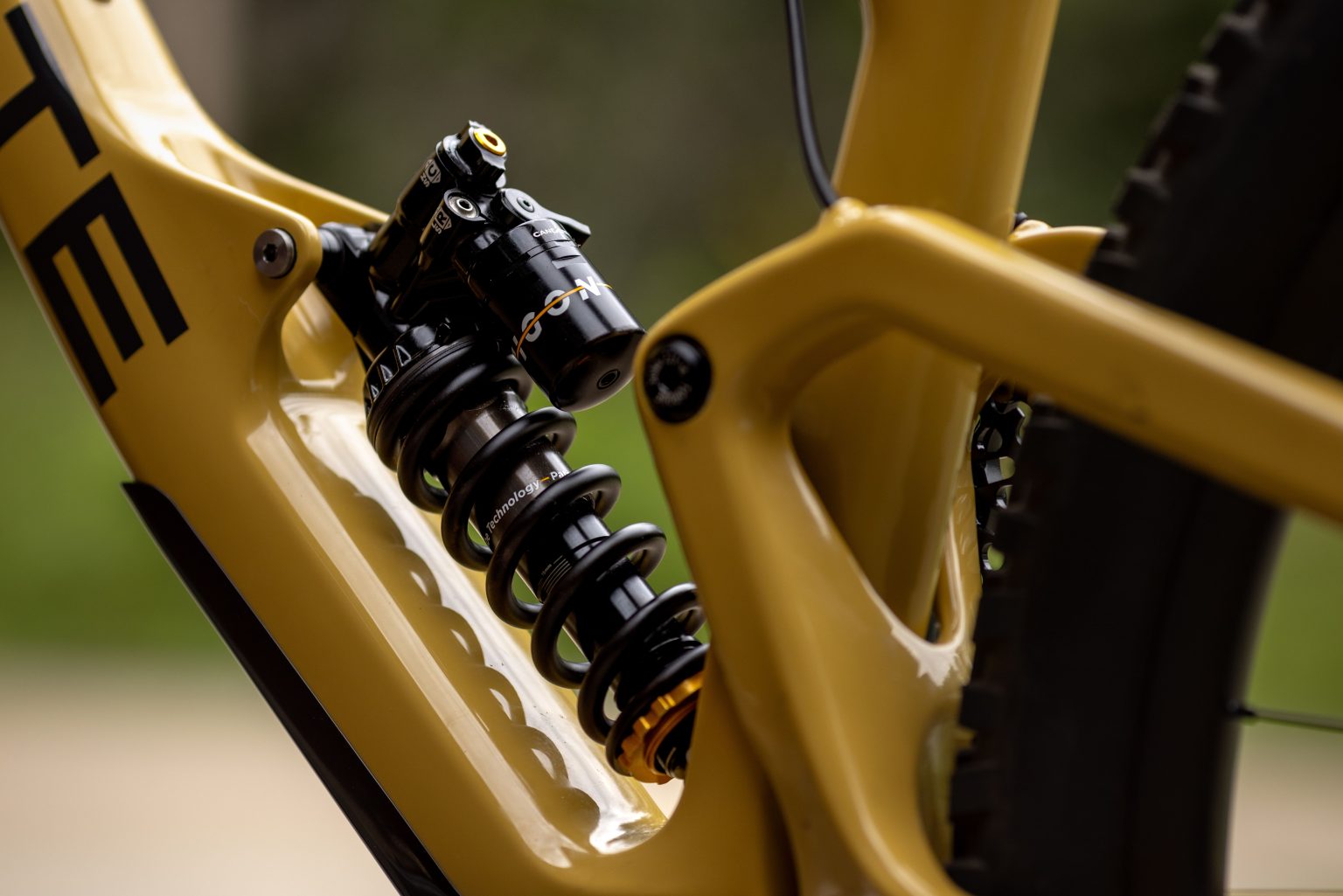

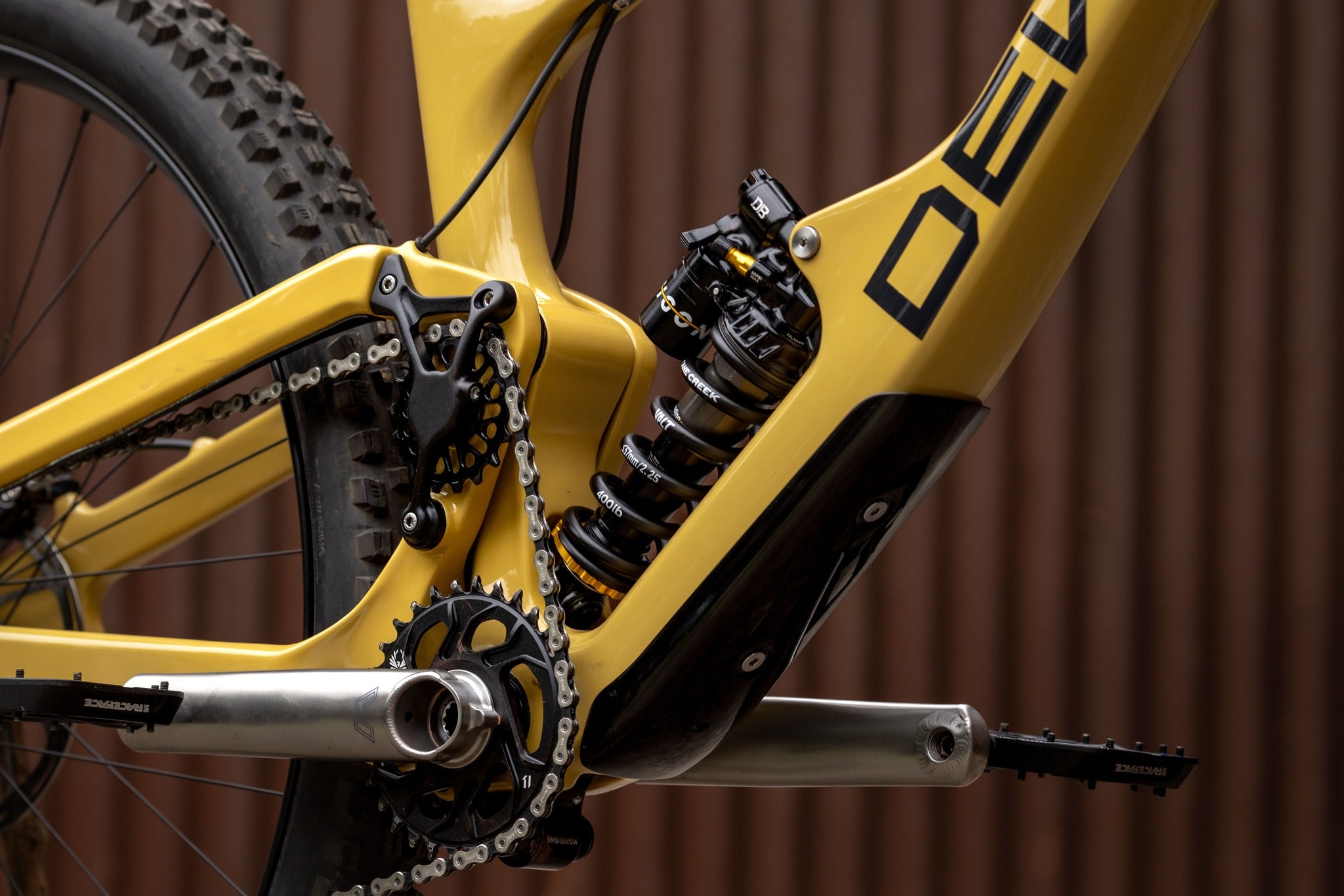

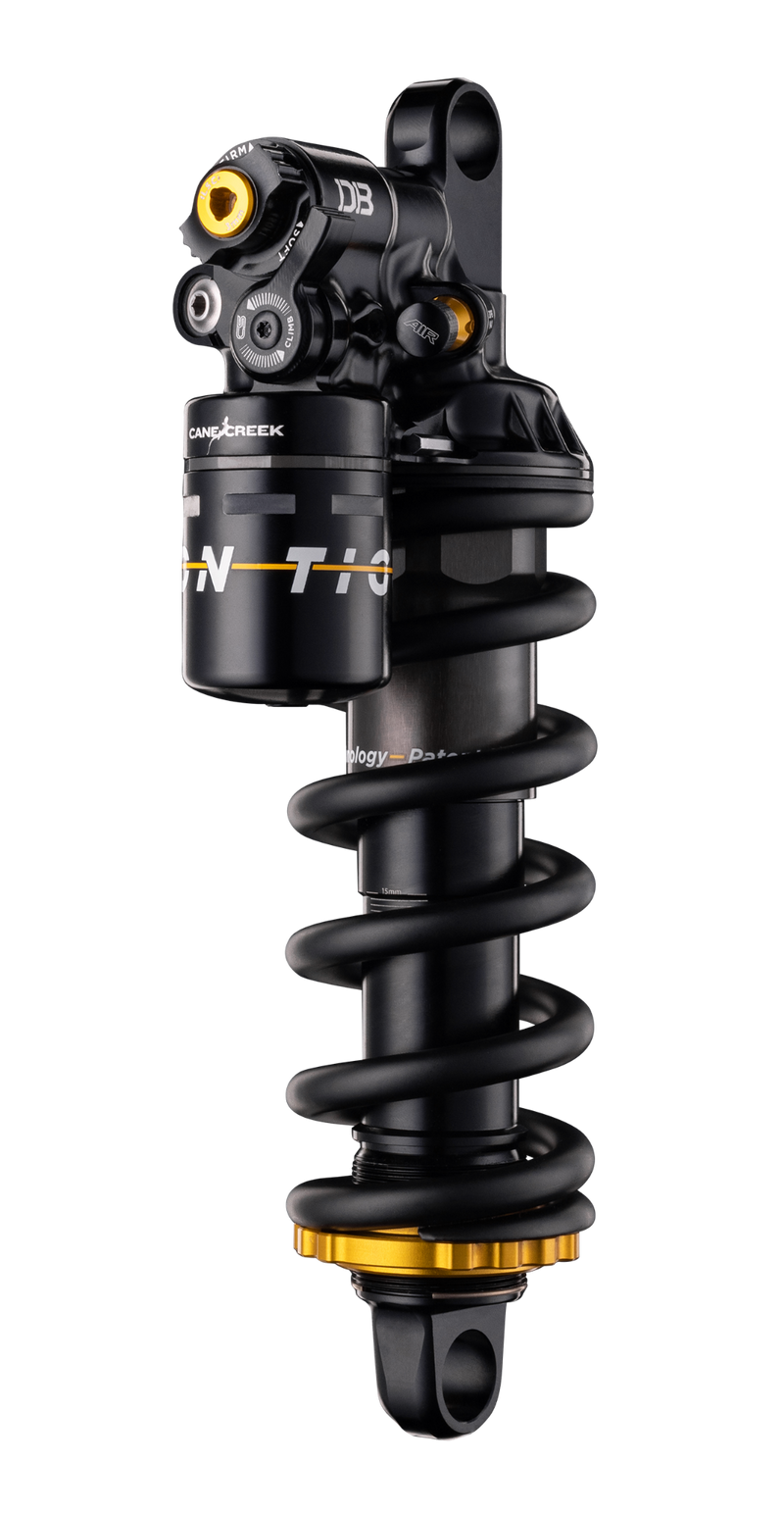

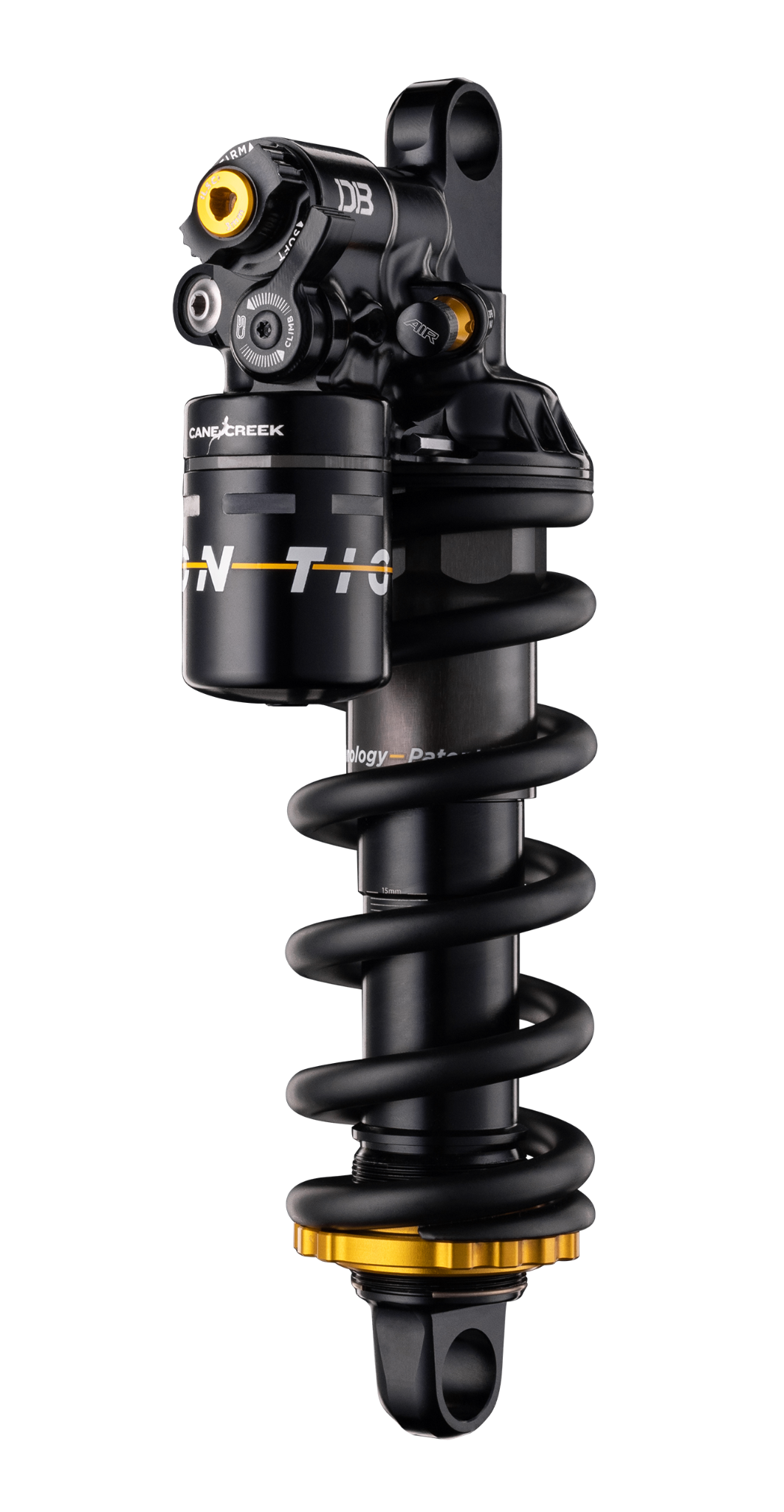

Tigon is an entirely new DB Twin Tube shock that combines the sensitivity of a coil shock with the tunable support of an air spring – to fuel your most creative and playful riding yet.

Tigon tracks the ground and grips like a coil shock, but thanks to our new patent-pending RAMP Tube Technology it also offers the mid-stroke and bottom out support that is often required from an air shock. Both of these benefits are now delivered in an entirely new layout that better withstands side-loading and buckling forces that can harm traditional coil shocks.

Want sensitivity and grip? Tigon delivers.

Want more support? Just add air!

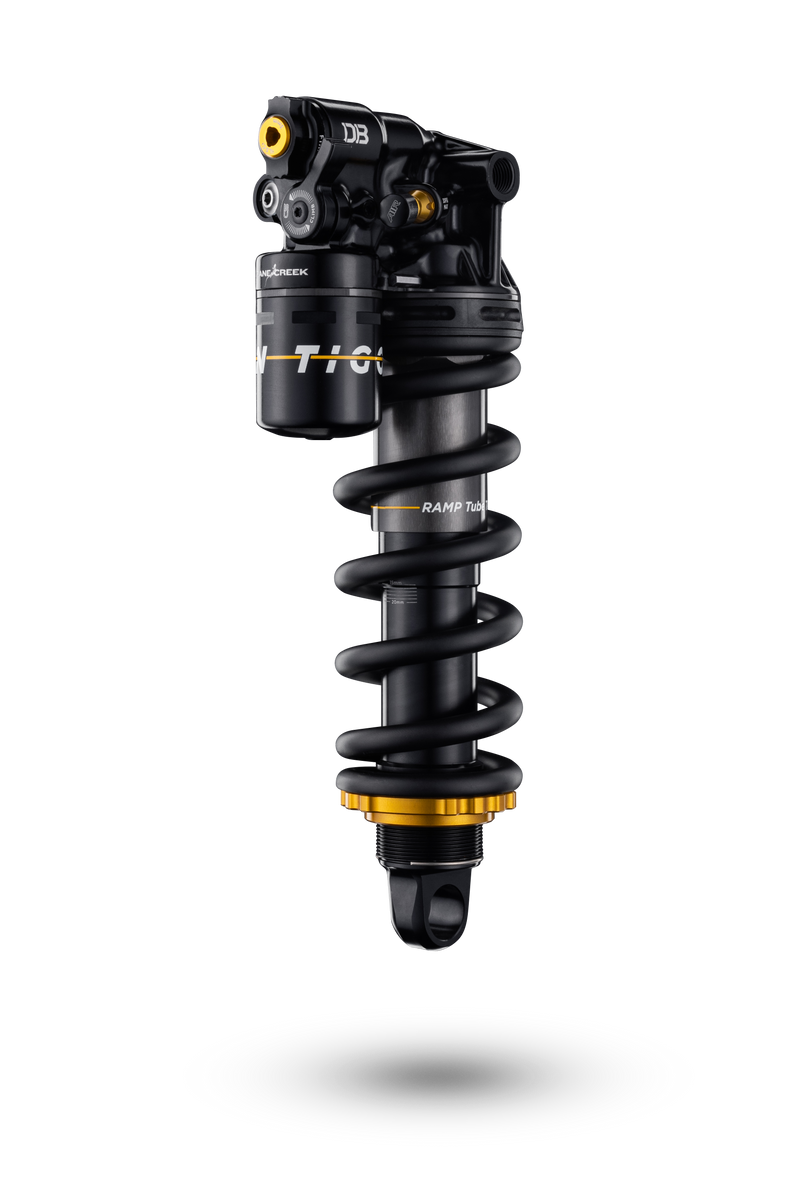

Tigon’s RAMP Tube is a small air spring that works in conjunction with its main coil spring to control the shock’s progression. With this added feature, a rider will still rely on the main coil to support their body weight while setting sag – but can easily add up to 35% progression relative to a traditional coil shock. These adjustments are made using a basic shock pump.

Highlights:

  • Coil sensitivity with air support
  • Main coil spring allows Tigon to offer incredible grip and ground-tracking sensitivity
  • RAMP Tube Technology allows riders to add 20-35% more progression than typical coil shocks (30psi max)
  • Significantly increased strength due to the bracing provided by RAMP Tube
  • Hand-built by riders in Western North Carolina

More Details

Show details Collapse

- Coil sensitivity with air support

-Main coil spring allows Tigon to offer incredible grip and ground-tracking sensitivity

-RAMP Tube Technology allows riders to add 20-35% more progression than typical coil shocks (30psi max)

-Significantly increased strength due to the bracing provided by RAMP Tube

-Hand-built by riders in Western North Carolina

Marketing Assets

Show details Collapse

Details

PRODUCT SPEC

Weight

+/- 438g* (210 – without spring, varies by size)

Damping

DB Twin Tube Technology

Adjustments

RAMP Tube, independent high & low-speed compression, low-speed rebound, 2 position Climb Switch

Shaft Diameter

12.7mm (1/2")

Manufacturing

Designed, tested, and hand assembled in Fletcher, NC

Warranty

Limited 2-year warranty

BIKE FITMENT

This list is not exhaustive, and represents 30 popular bikes that we know Tigon fits. There are many many more bikes out there that are also fit the shock! If you have any question regarding shock fitment or hardware, please contact our support team at 828-641-9560 or support@canecreek.com. We'll help you figure out exactly what you need!

Make Model Mounting Config. Shock Size Hardware
Specialized Enduro Trunnion 205 x 60 none
Levo Standard S1: 52.5x210mm, S2-S6: 55x210mm 8 mm ID x 20 mm W (front), No Hardware (rear)
Levo SL 2021-2023 Standard 210x52.5 20x8
Levo SL 2024 Standard S1 210x50, S2-S6: 210x55 Front: 20x8 Rear: No Hardware
Stumpjumper Evo Standard 210 x 55 20 x 8
Trek Fuel EX Trunnion 185x55 40x8
Fuel EX-e Trunnion 205x60 40x8
Slash gen. 6 Standard 230 x 65 54mm x 10mm upper, 20mm x 8mm lower
Giant Reign Trunnion 205x62.5
Norco Optic (latest gen) Trunnion 185 x 50 30x8
Sight (latest gen) Trunnion 205x60 30x8
Santa Cruz Bronson Standard 230x60 Front: 30x8 (Standard Bushing), Rear 30x8 (Roller Bearing)
Megatower Standard 230x62.5 Front: 30x8, Rear: 30x8
Heckler SL 210x55 Front: 30x8, Rear: 30x8
Transition Sentinel Trunnion 205 x 62.5 25 x 8
Patrol Trunnion 205 x 60 30x8
Spire Trunnion 205 x 65 30x8
Repeater PT Trunnion 205 x 65 30 x 8
Kona Process X Trunnion 205x62.5 20x8
Ibis Ripmo Standard 210 x 55 Front: 25x8, Rear: 15x8
HD6 Standard 230 x 65 Front: 25x8, Rear: 15x8
Oso Trunnion 205x60 Proprietary (None)
Scott Genius (latest gen) Trunnion 185x55 20x8
Cannondale Jekyl Trunnion 205 x 65 30 x 8
Habit LT (latest) Standard 210 x 55 20x8
Yeti SB140 Standard 210x55 Front: 36x8, Rear: Proprietary
SB160 Standard 230x65 Front: 36x8, Rear: Proprietary
Forbidden Dreadnought Trunnion 205 x 65 Rear: 30x8
Druid V2 Trunnion 185 x 50 Rear: 30x8
Druid V1 Standard 210x55 Front: 30x8, Rear: 30x8
Deviate Highlander II Standard 210x55 Front: 40x8, Rear Eyelet Bushing
Claymore Standard 230x60 Front: 40x8, Rear: Eyelet bushing
Revel Rail 29 Standard 230x60 Front: 22.2x8, Rear: Open Eyelet
Rail 27 Standard 230x65 Front: 22.2x8, Rear: Open Eyelet
Rascal Standard 210x50 Front: 25x8, Rear: 25x8
Ari La Sal Peak Standard 230x65 30 x 8, front & rear
