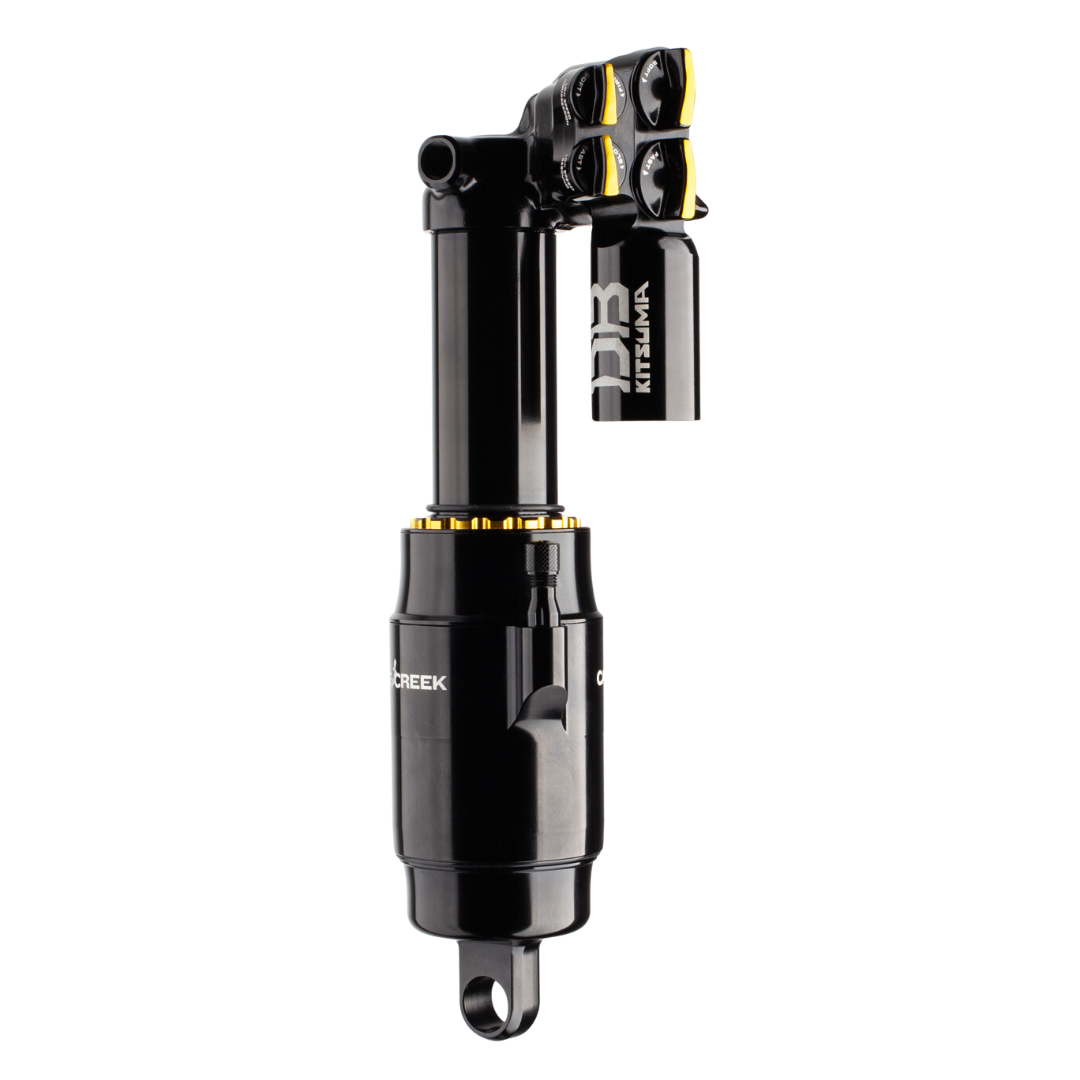

DB Kitsuma Air G1
*Orders containing suspension are built to order and ship in 5-7 days. Please call customer support to confirm inventory.
FASTER WITH THE TURN OF A DIAL
Kitsuma is a strong, gravity-first shock that allows you to go faster thanks to a more personalized tune. With a high-volume air spring and the most damper oil of our entire shock family, it offers amazing downhill performance, while still giving you the easy setup and tunable support of an air shock.
Kitsuma’s defining feature is its tool-free, 4-way damper controls. Easily adjusted by hand and offering a visual indication of your settings, Kitsuma encourages you to develop your own custom, pro-level tune – all in the name of supporting you getting down the hill faster and with more control than before.
Kitsuma favors descending but it’s not afraid to climb, with a rock-solid firm setting, it’s a gravity-first shock that wants to be pedaled to the top of the mountain for another run down.
Highlights:
- Tool-free, 4 way adjustment
- 3 position Climb Switch: Descend, Climb, Firm
- Our largest volume air shock for incredible grip with the greatest tunability
- Larger diameter damper shaft, more bushing overlap, and redesigned oil seal head for greater durability
- Need help tuning your shock? Visit our Rear Shock Tuning Guide
Technical Documents
More Details
Kitsuma has seen a series of significant improvements over previous Double Barrel shocks, including:
- Redesigned Main Piston that’s been Ported and Polished = Increase Responsiveness
- Higher volume positive and negative air springs for increased sensitivty = GRIP
- Monoblock Oil Seal Head Design = Improved Alignment and Durability
- Progressive Bottom-Out Bumper = Greater End of Stroke Support
- Larger Quad-Rings, Shaft Bushings, and Uncut Back-Up Rings = Improved Performance and Reliability.
- 16% larger diameter damper shaft over our previous model for increased lateral strength
Marketing Assets
Details
PRODUCT SPEC
585g (Kitsuma Air 210 length)
DB Twin Tube Technology
High speed compression, Low speed compression, High speed rebound, Low speed rebound
9.5mm
Designed, tested, and hand assembled in Fletcher, NC
Limited 1-year warranty
300 psi
