Invert

SKU: BBG0005
Sale price$840.00 USD

*Orders containing suspension are built to order and ship in 5-7 days. Please call customer support to confirm inventory.

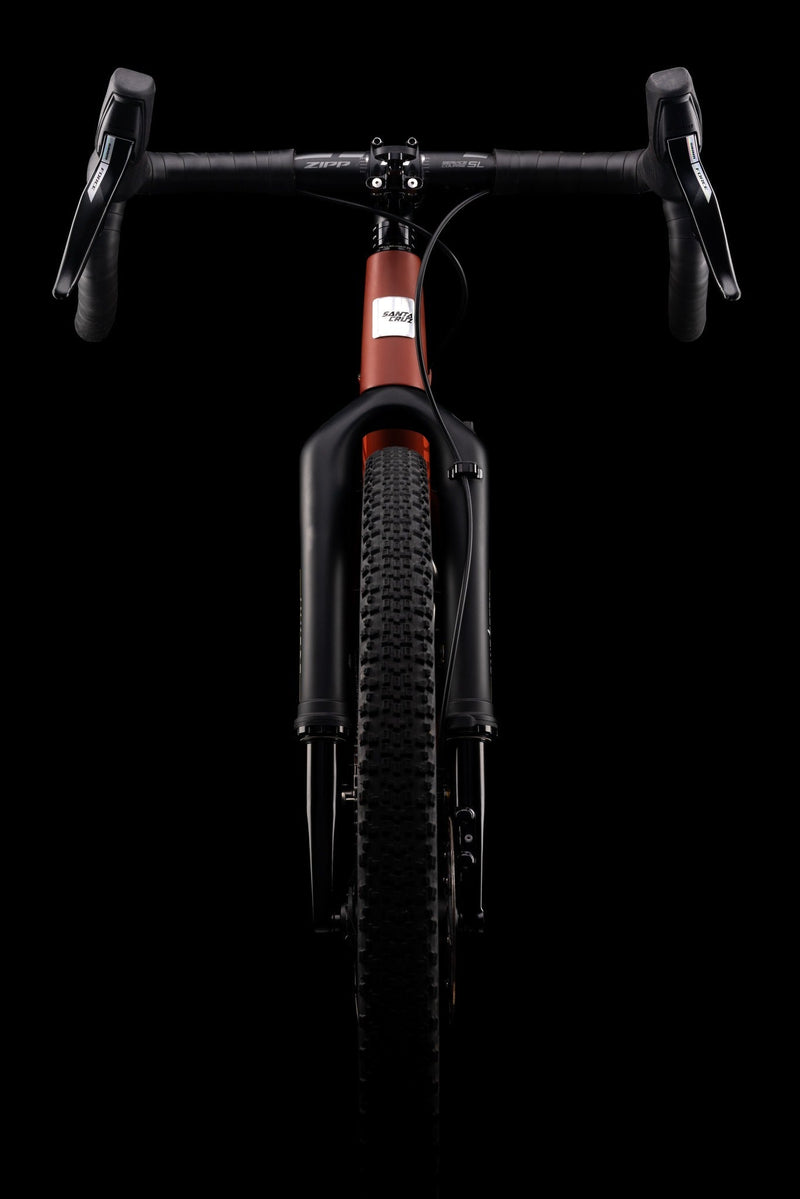

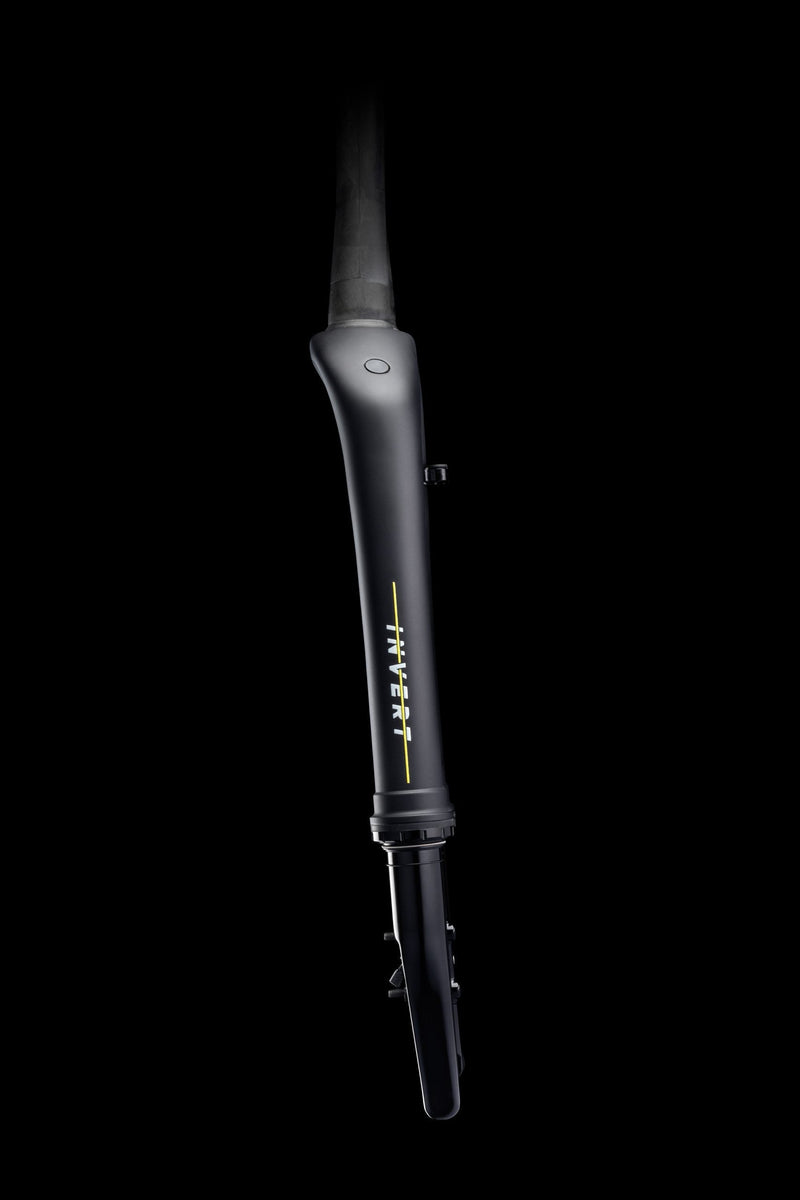

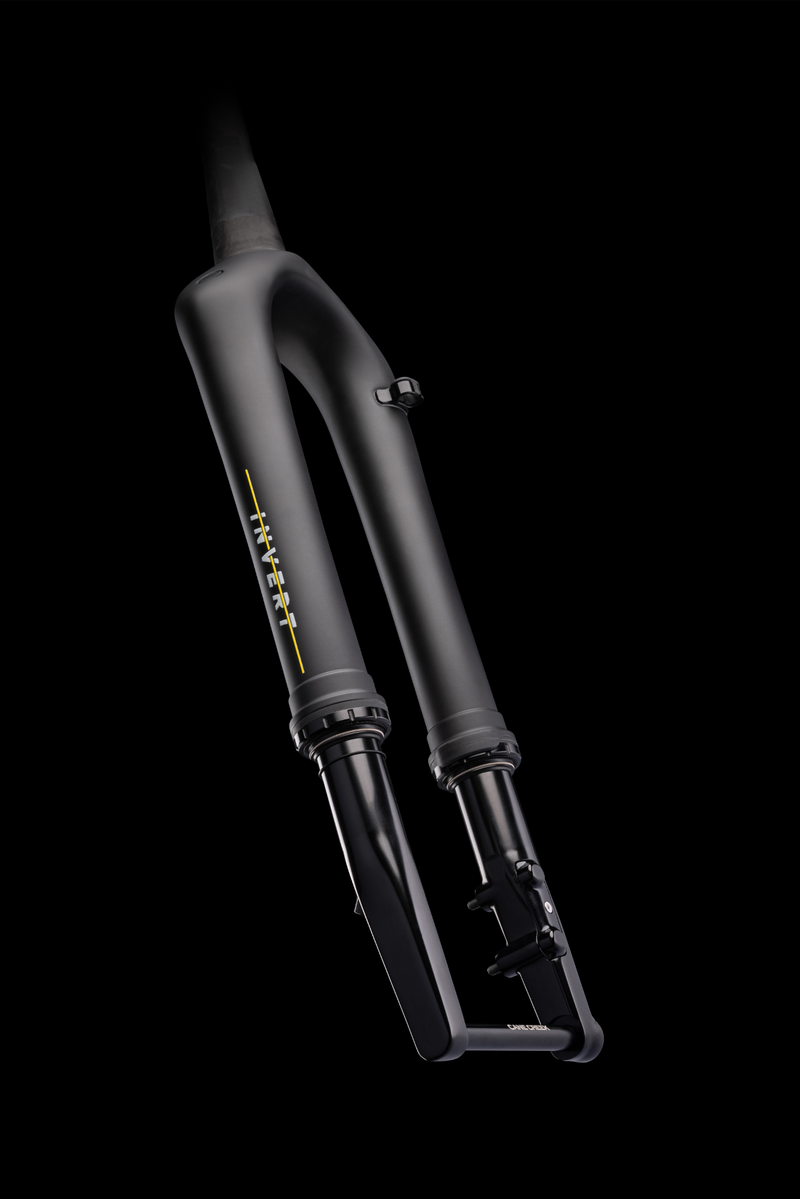

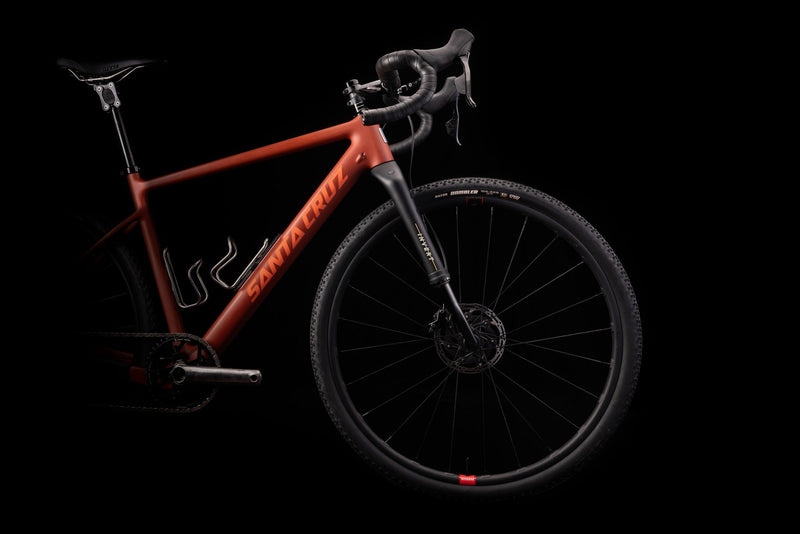

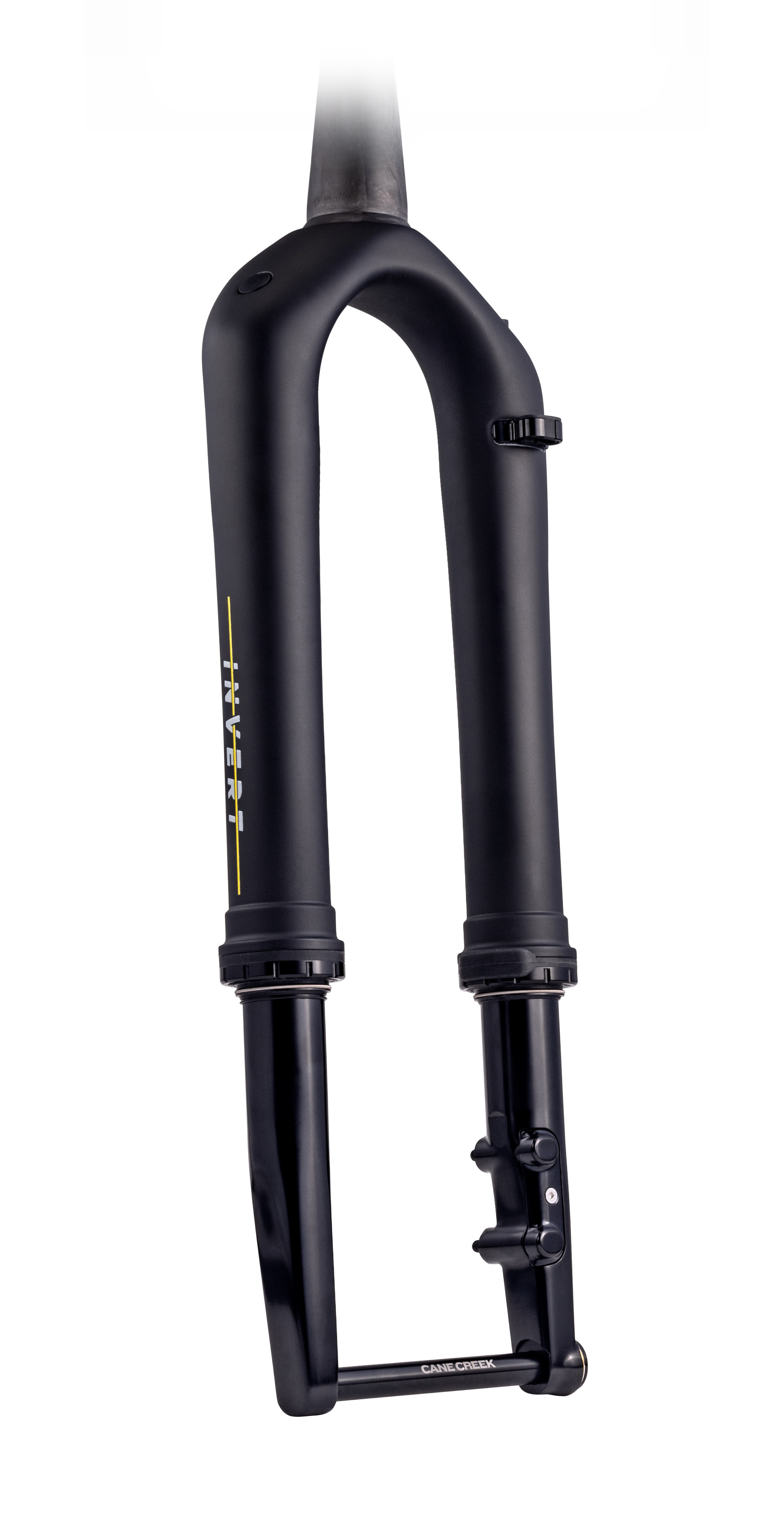

Invert is the World’s First Gravel Fork.

Invert smoothes your ride and gives unbelievable control of your bike on rough roads, loose turns, and steep descents. It's surprisingly lightweight, easy to use, and strikingly attractive. Until this point, no fork made for drop bars has been able to combine the smooth ride, lightweight, simplicity, and good looks into one complete package.

Riding beyond the pavement can be rough, physically taxing, and unpredictable. Invert goes straight to the source of this problem to offer a smoother ride with more traction, both uphill and down. With Invert, you’ll be more efficient, more relaxed, and have confidence to glide over gravel like you’ve never experienced before.

Invert CS (Climb Switch, 40mm, 1113g)
Invert SL (No Climb Switch, 30mm, 990g)

Invert SL available end of September 2024

Technical Documents

Show details Collapse

More Details

Show details Collapse

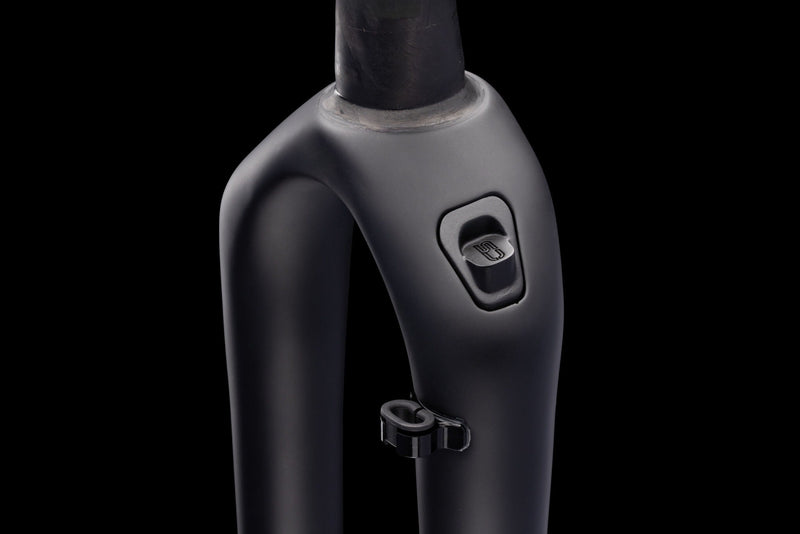

Invert CS comes with 40mm of fork travel and a Climb Switch button that when clicked, dramatically reduces the amount of fork movement for pedaling out of the saddle. The Climb Switch button is inspired by the simple click of a pen, and is as satisfying to click as the feature is to use.

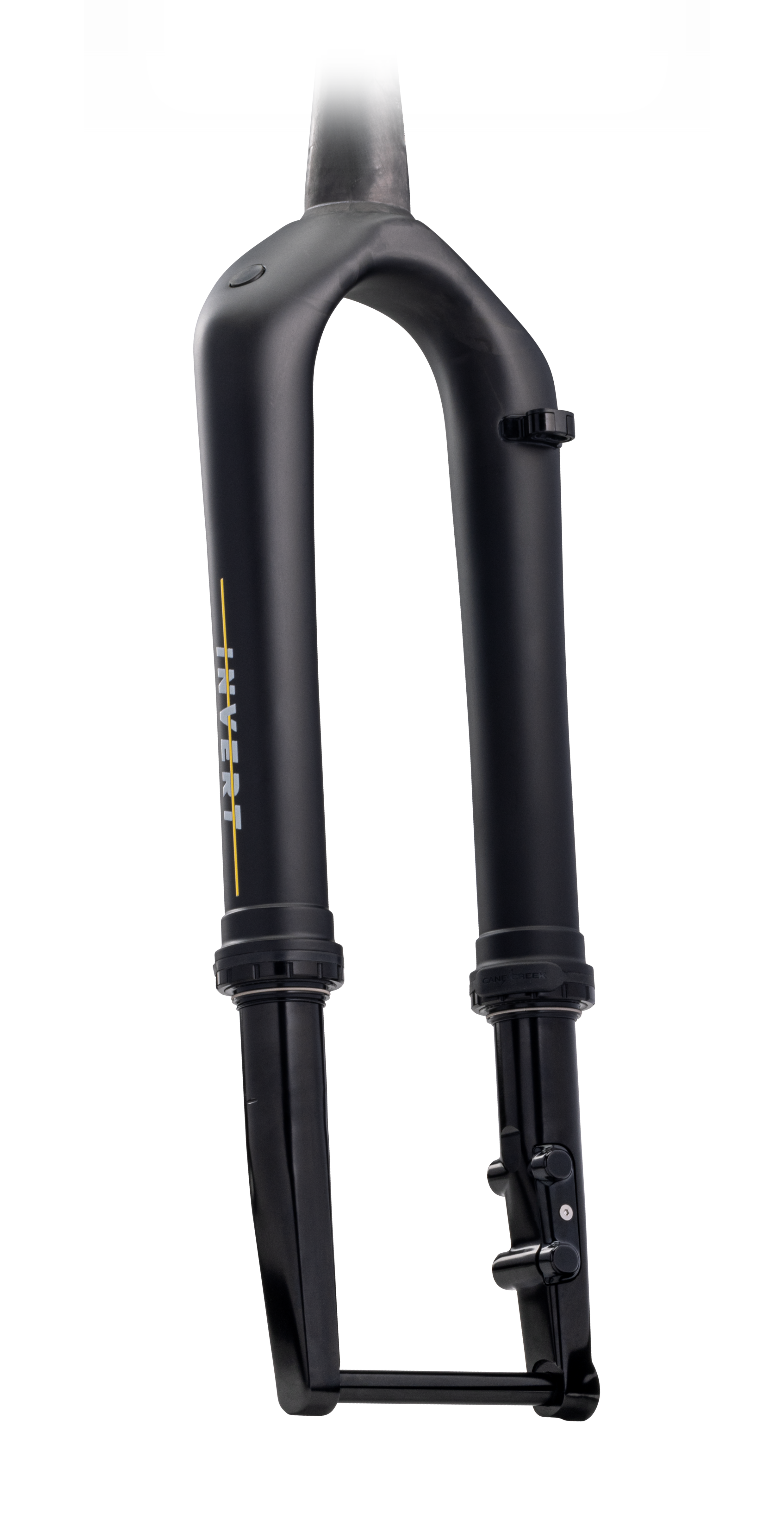

Invert SL is a more minimal and lightweight option. It forgoes the Climb Switch mechanism to reduce weight even further and comes with less travel — 30mm. This shorter option may also be preferable to some riders that want to keep their stance on the front of the bike lower.

Marketing Assets

Show details Collapse


Details

Product Spec

Weight

990g (SL) / 1113g (CS)

Travel

30mm (SL) / 40mm (CS)

Chassis

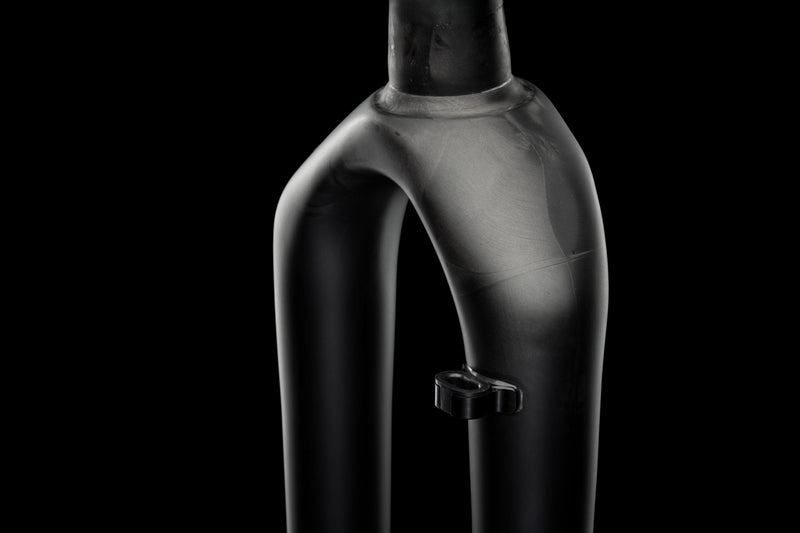

Carbon fiber crown & steerer bonded to aluminum upper tubes

Lowers

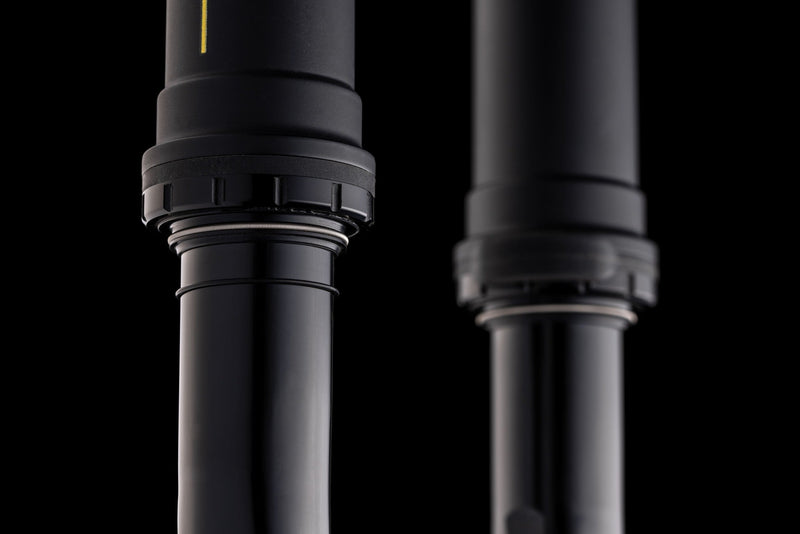

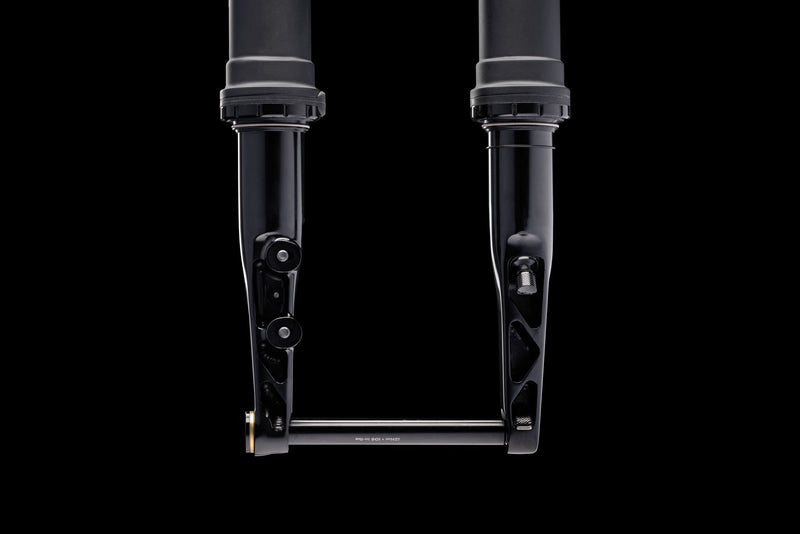

One piece, forged and machined 30mm stanchions with integrated hidden brake caliper bolts and hidden thru axle

Max Tire Size

700c x 50mm

Brake

160mm flat mount disc
180mm compatible with adapter BBG0800

Hub Spacing

12mm x 100 Thru Axle (axle included)

ATC / Offset

SL – 425mm / 45mm
CS- 435mm / 45mm

Steerer Tube

1 1/8” to 1.5” Tapered (28.6mm to 40mm)

Crown Race

Integrated, 36 degree angle

Adjustments

Air Spring adjusts for rider weight, Climb Switch on Invert CS engages firm mode out of saddle pedaling. Single-click activation dramatically reduces fork movement.

Warranty

2 Years

Recommended Service Interval

50 Hours: Splash oil flush – no special tools, no major disassembly
100 Hours: Full service

Rider Weight Limit/Max PSI

250 lbs / 250 psi

Part Numbers

Invert CS – 40mm Travel: BBG0005
Invert SL – 30mm Travel: BBG0004

Included

Ancora Premium Expansion Plug
52mm ZN40 headset bearing
Brake caliper mounting bolts
