SKU: BAA0085K
Sale price$23.50 USD

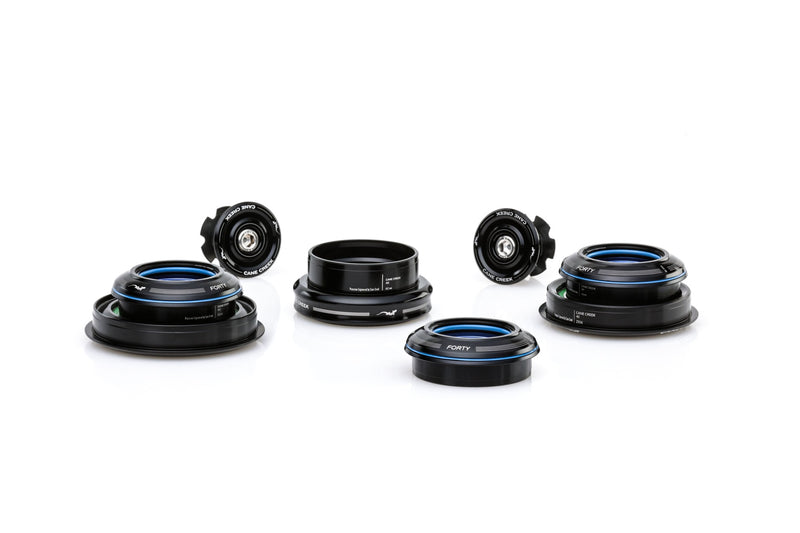

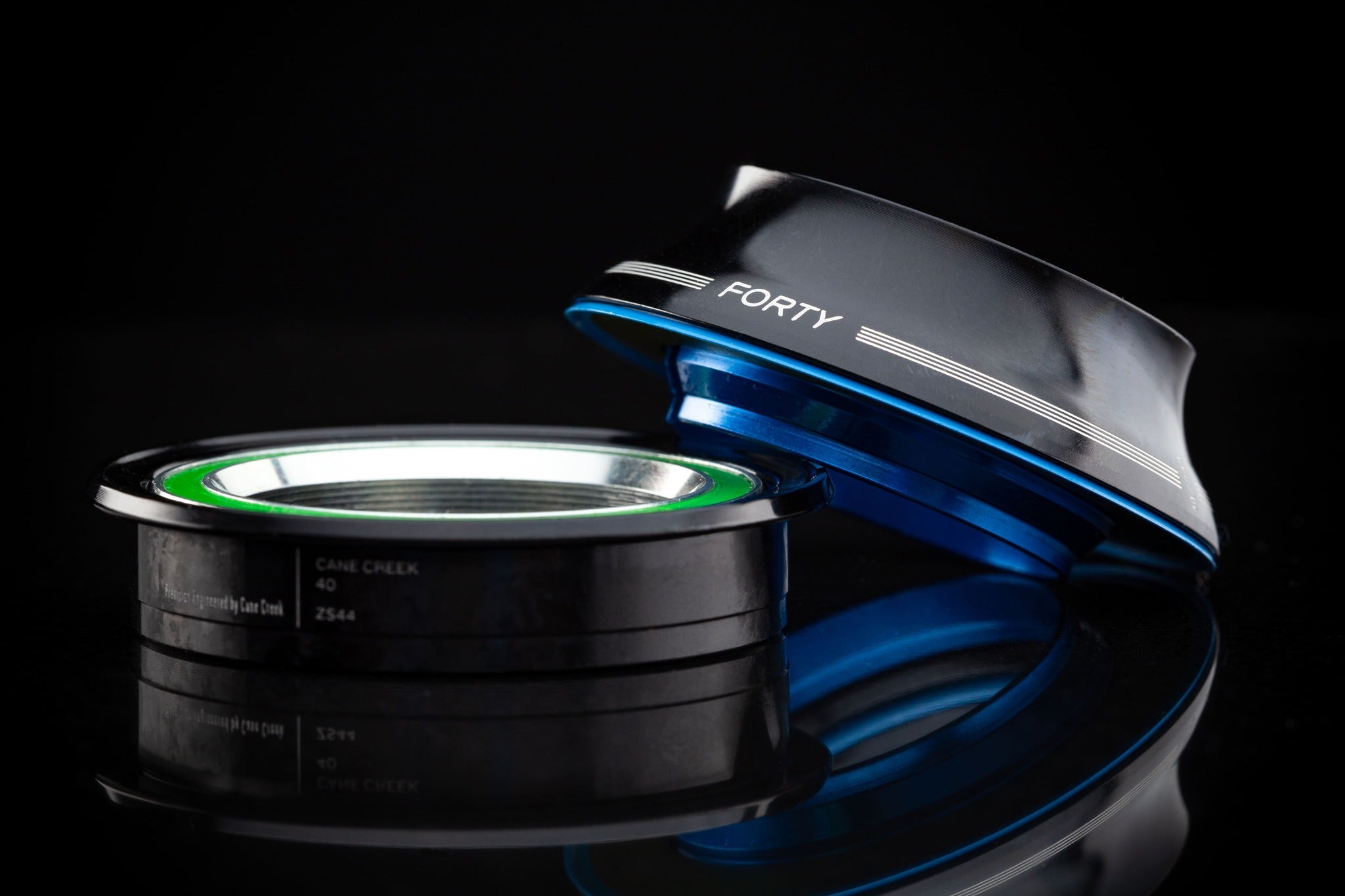

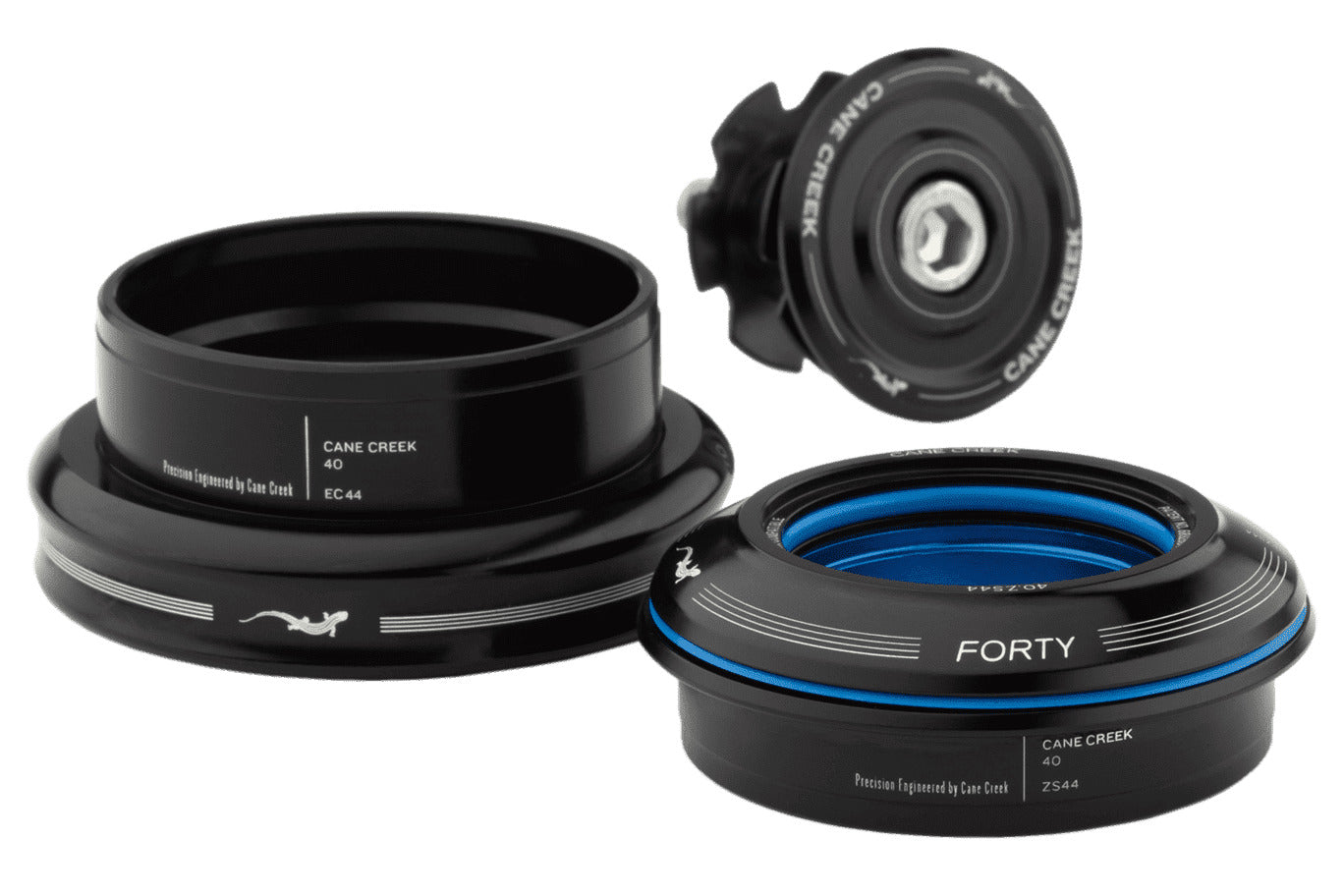

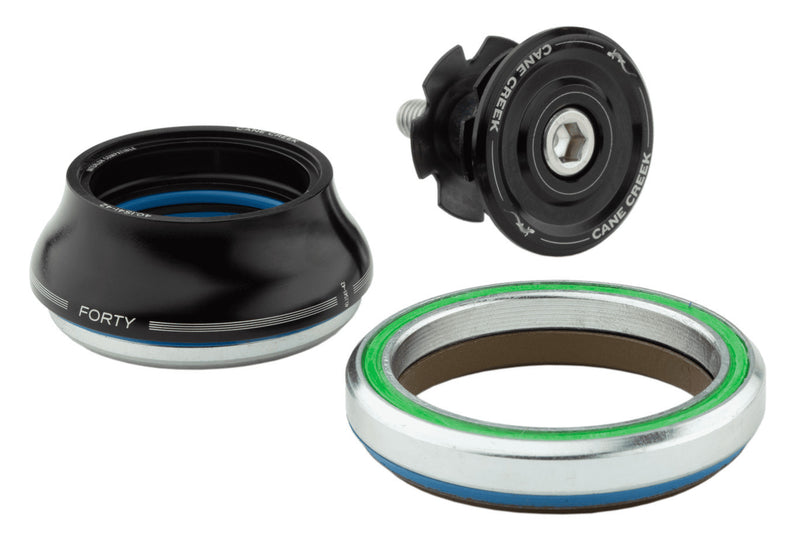

Our 40-Series headset is the entry point for performance, quality, and value. Drawing from the premium 110-Series design, the 40-Series includes all the features necessary for a durable, lightweight, and easy to use headset.

Highlights:

  • Easily replaceable, sealed cartridge bearings
  • 6000 series alloy cups and materials
  • Sealed steel crown race
  • ZN40 Bearings
  • Precision engineered by Cane Creek in Fletcher, NC

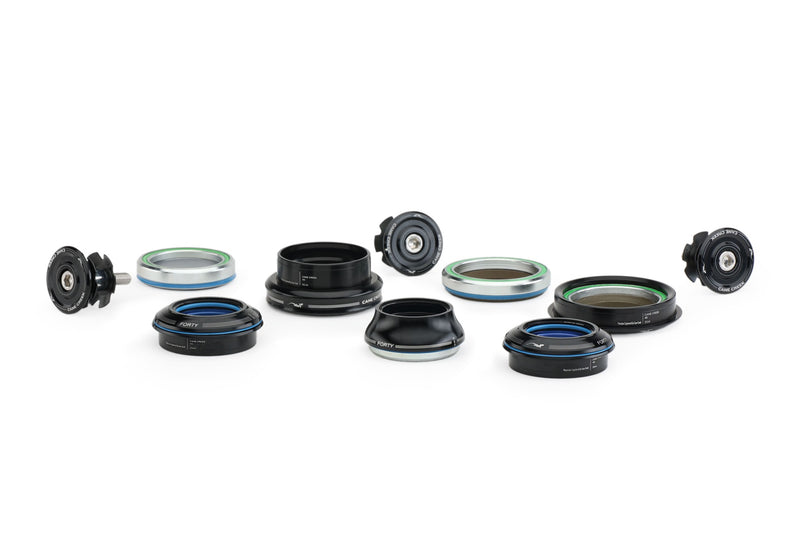

We make headsets easier. Our headsets use interchangeable parts and over forty configurations to meet almost every size need. Sold in straight and tapered assemblies or tops & bottoms, tops are generally available in either short (9mm) or tall (15mm) bearing covers to further customize the look of your cockpit setup.

Technical Details

Show details Collapse

More Details

Show details Collapse

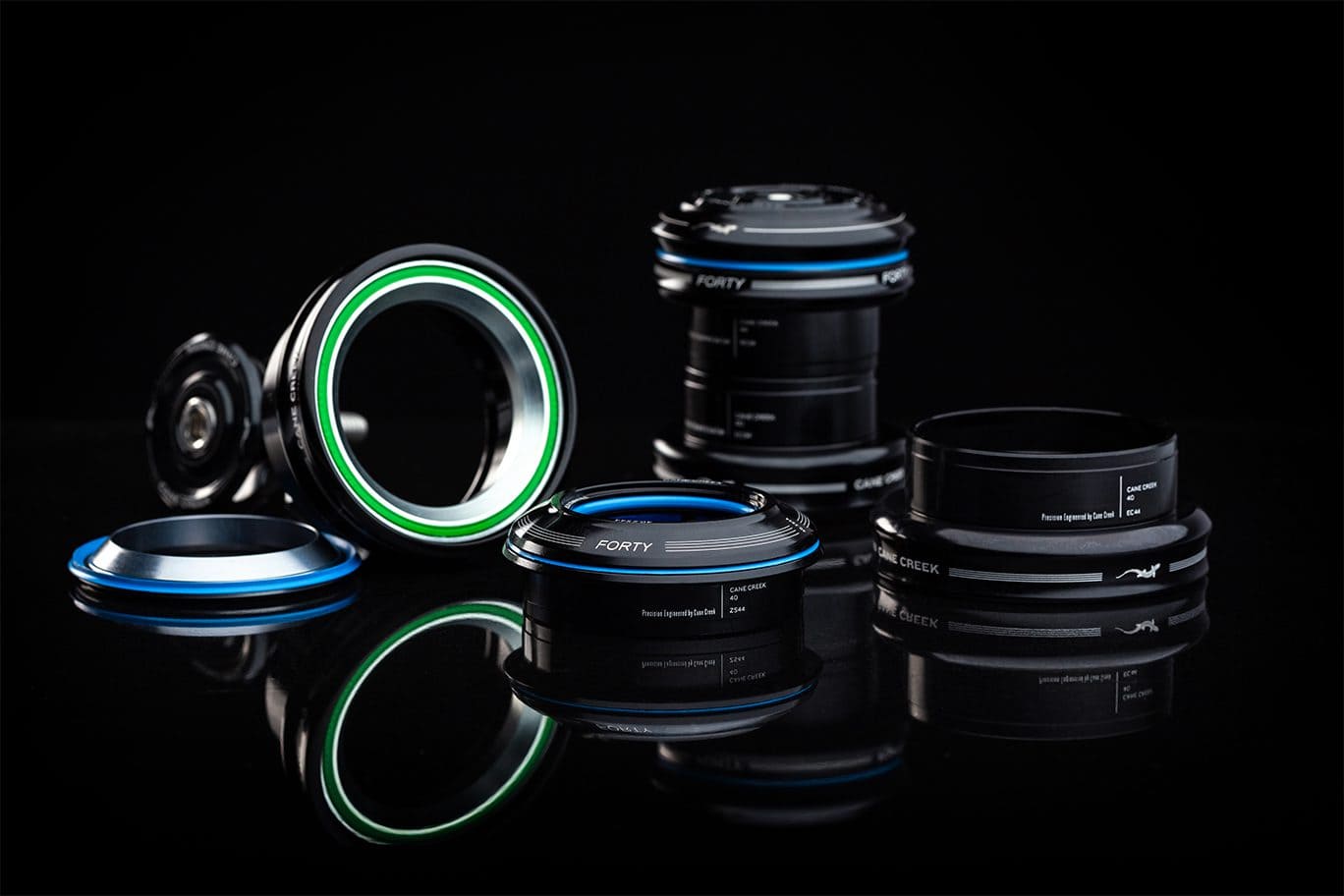

Featuring a full alloy construction – sealed cartridge bearings, 6000 series alloy cups and materials, and a sealed steel crown race, the Forty series headset sets the standard for all other headsets to be judged.

Marketing Assets

Show details Collapse

Link: 40-Series Marketing Assets


Details

PRODUCT SPEC

Cups and Covers

6061 T-6 Aluminum Internally relieved to reduce weight

Covers

Tall and short aluminum and carbon covers offered on many IS and ZS models

Crown Race

Durable steel crown races

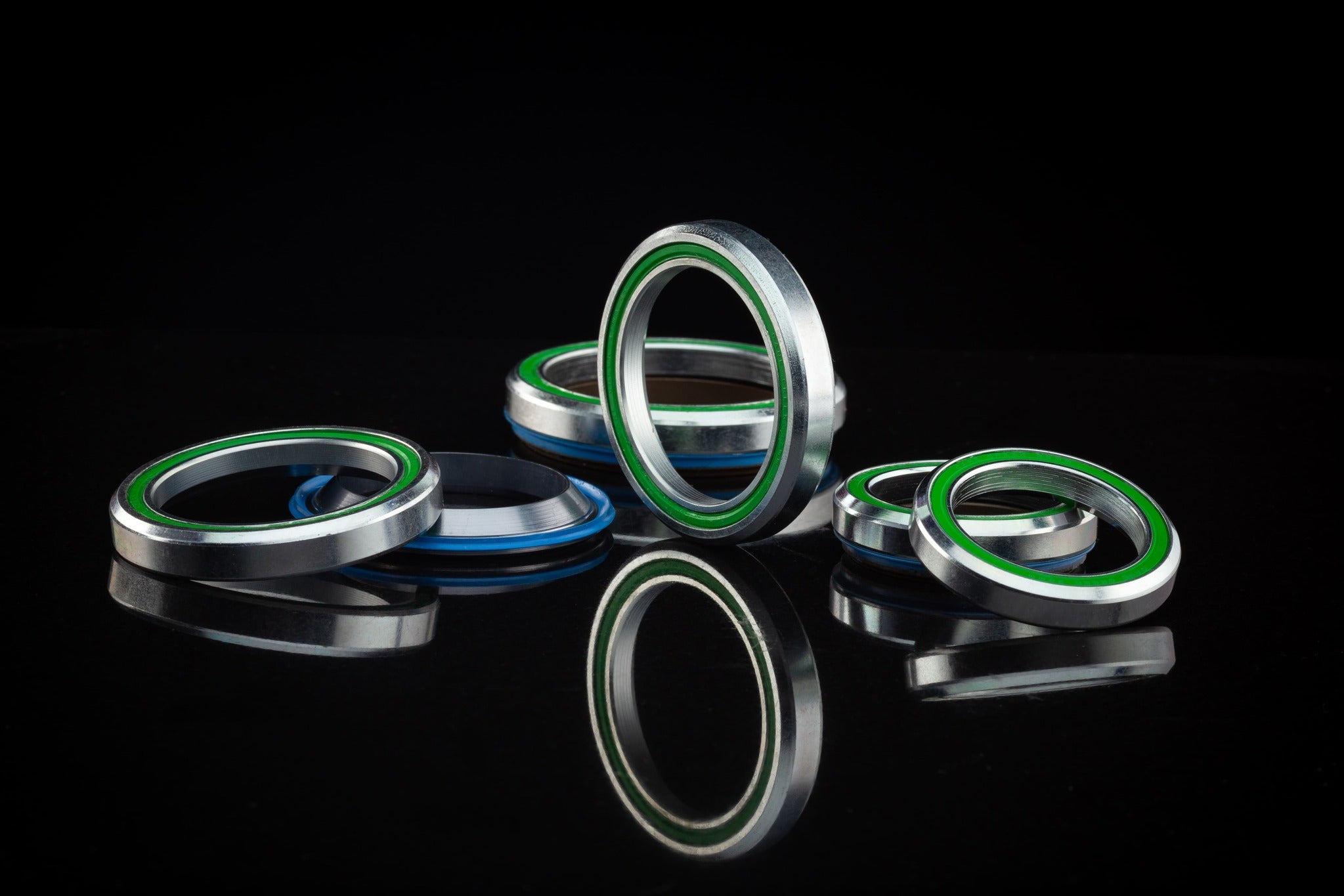

Bearings

Dependable zinc coated, sealed bearings

EC30 will take a 38mm bearing
EC34 will take a 41mm bearing
ZS44 will take a 41mm bearing
ZS49 will take a 41mm bearing
EC44/40 will take a 52mm bearing
EC44/33 will take a 47mm bearing
EC49 will take a 52mm bearing
ZS56 will take a 52mm bearing
ZS62 will take a 52mm bearing
IS41 will take a 41mm bearing

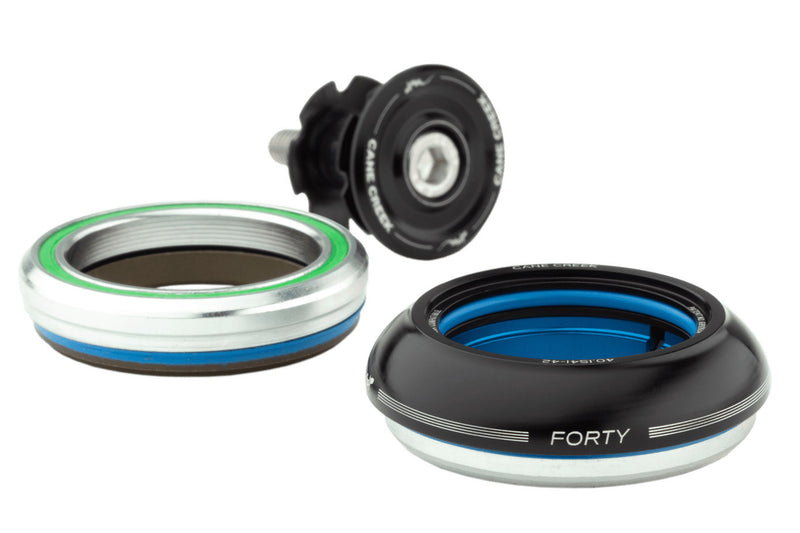

IS42 will take a 42mm bearing
IS52 will take a 52mm bearing

All complete Cane Creek headset assemblies (top or bottom) will use a 36×45 degree contact angle bearing, with the exception of our IS47/33 and EC44/33 headset assemblies. IS47/33 and EC44/33 will use a 45×45 degree contact angle bearing.

Interlok®

Interlok® spacer compatible

Clip Seal

Innovative Clip-Seal completely seals the top assembly and captures the compression ring to reduce the number of loose parts

Face Seal

High-quality, low friction face seals on the crown races

Stack Heights

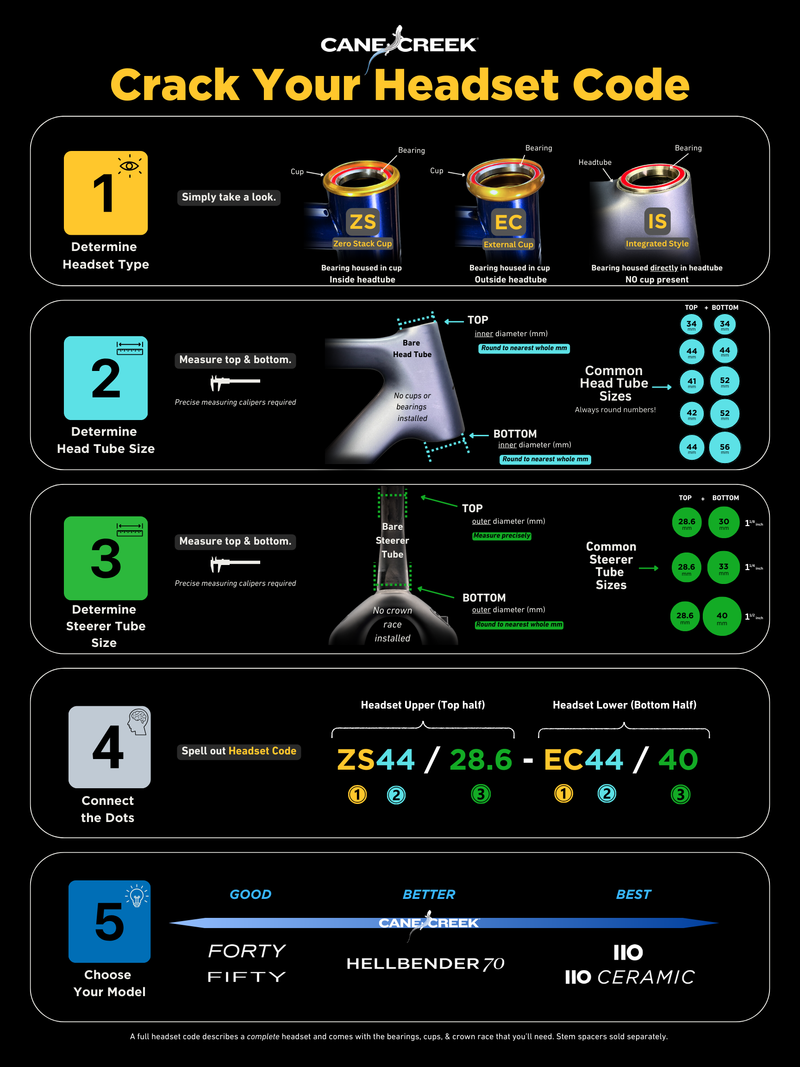

External Cup (EC) — 16mm top, 12mm bottom, ZeroStack (ZS) — 8mm or 15mm top, 4mm bottom, Integrated (IS) — 9mm or 15mm top, 1mm bottom
