eeWings
Virtually indestructible and stunning on nearly any type of bike. From gravel race machine, to heavy-hitting bike park rig, to the undetermined bike you’ll build 10 years from now. They’re as light as carbon cranks but offer significantly more durability and impact resistance – not to mention industry leading power transfer. Now with 8-bolt chainring and power meter compatibility, plus an ultra-friendly 8mm fixing bolt.
When others separate, bend, break, or simply fade – eeWings are Ageless
Technical Documents
More Details

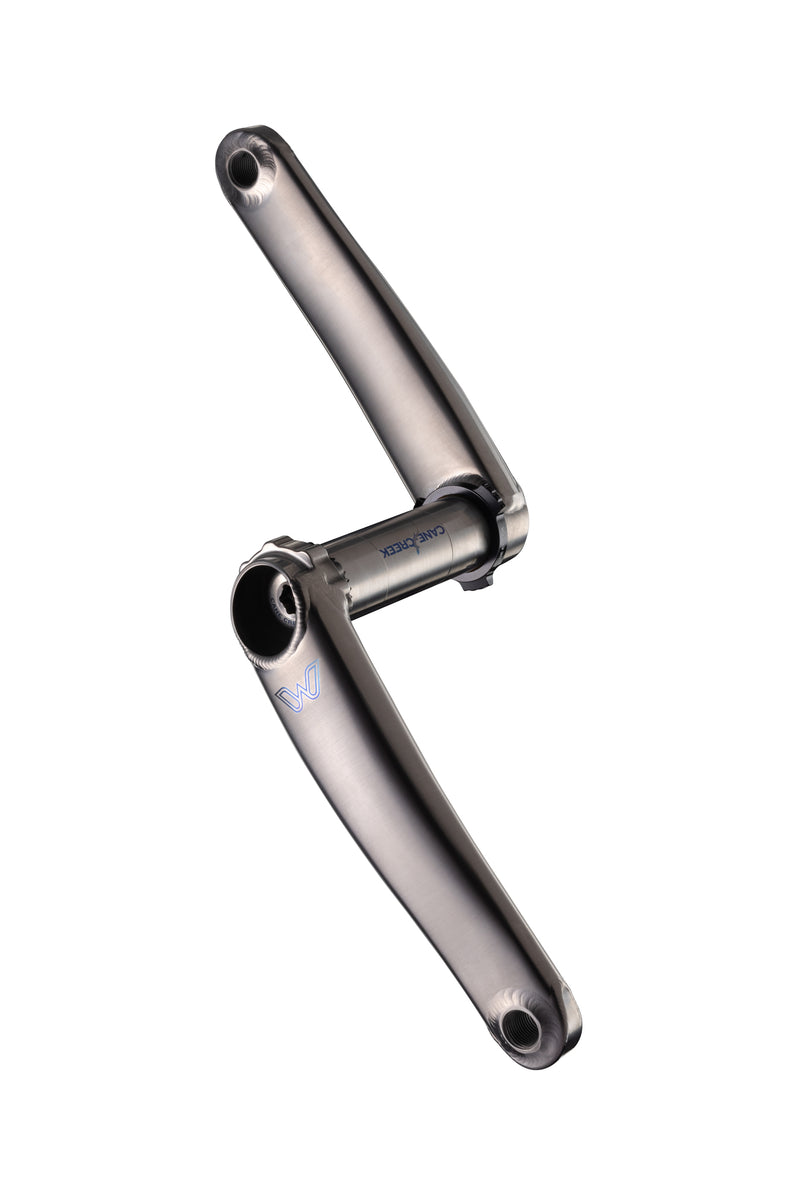

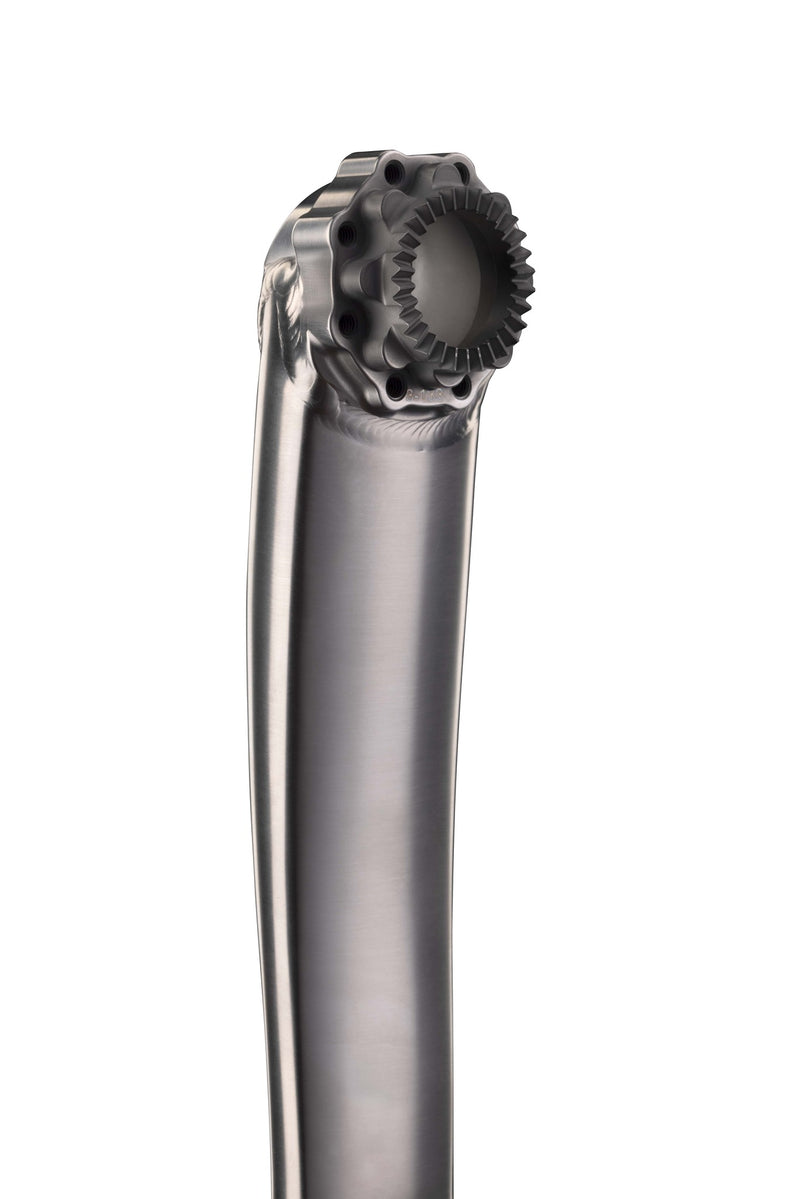

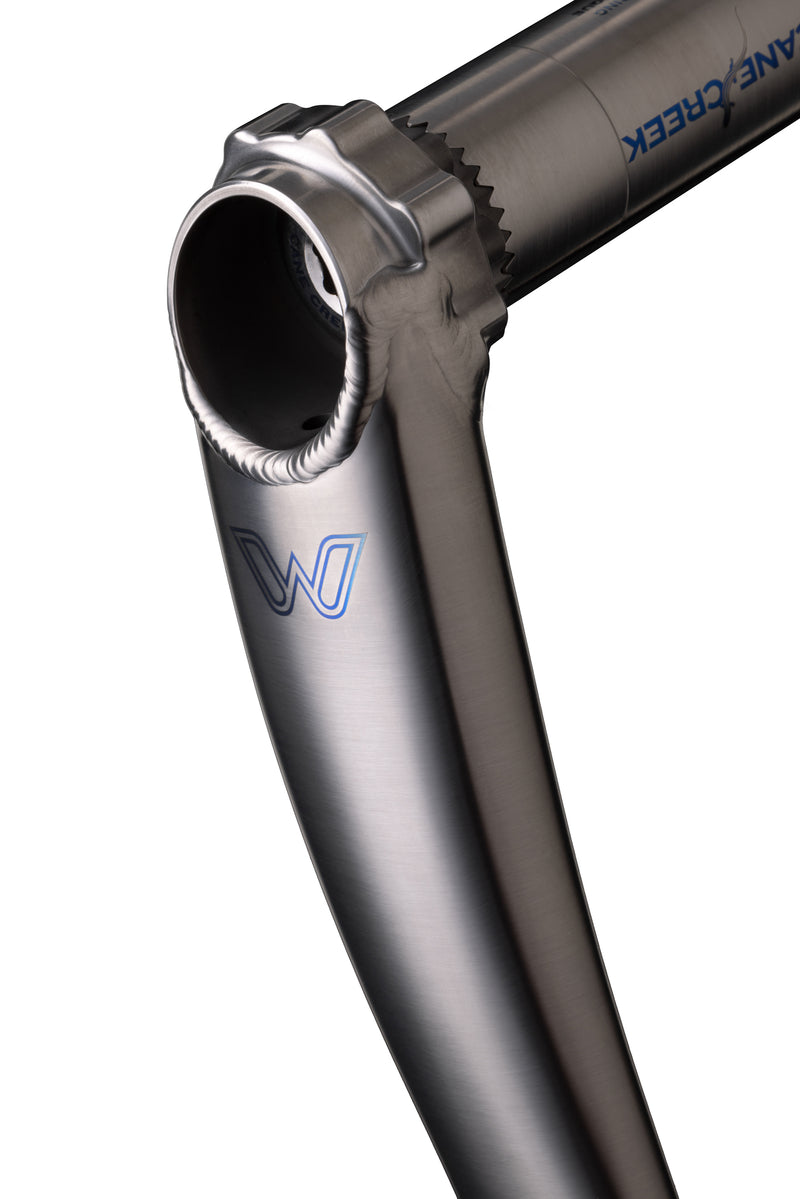

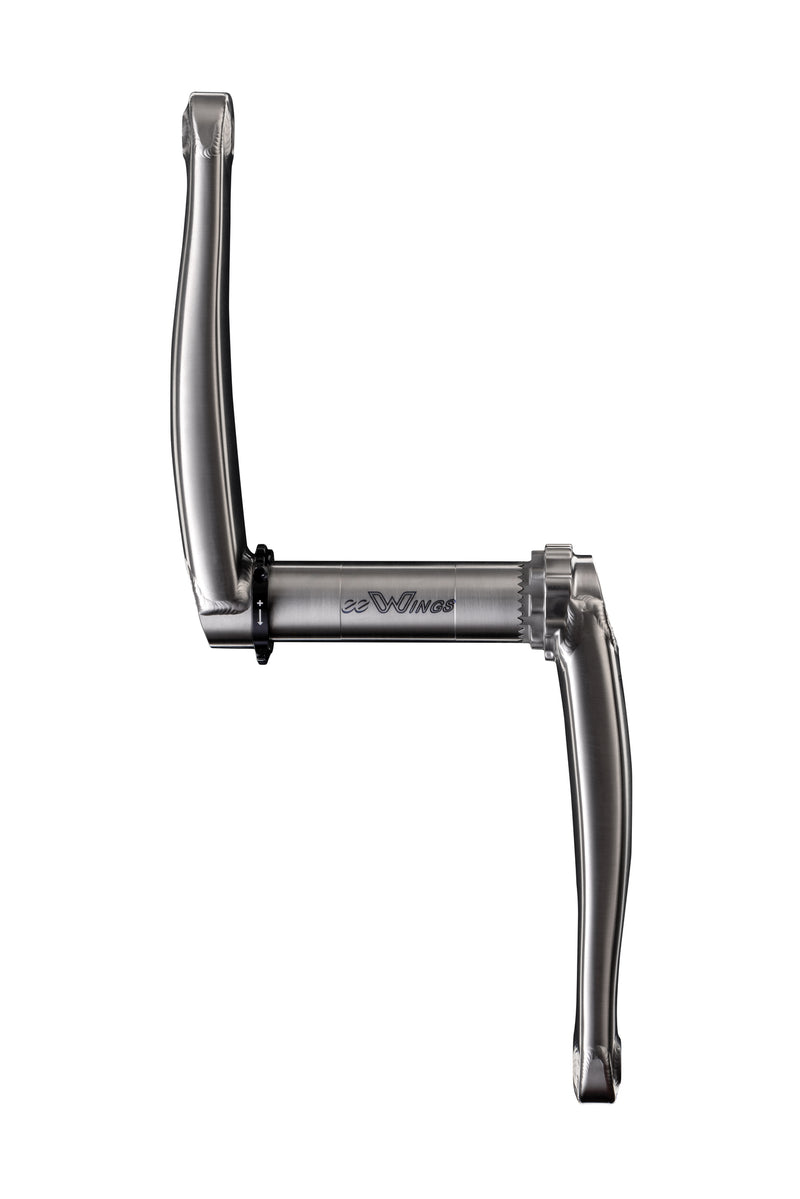

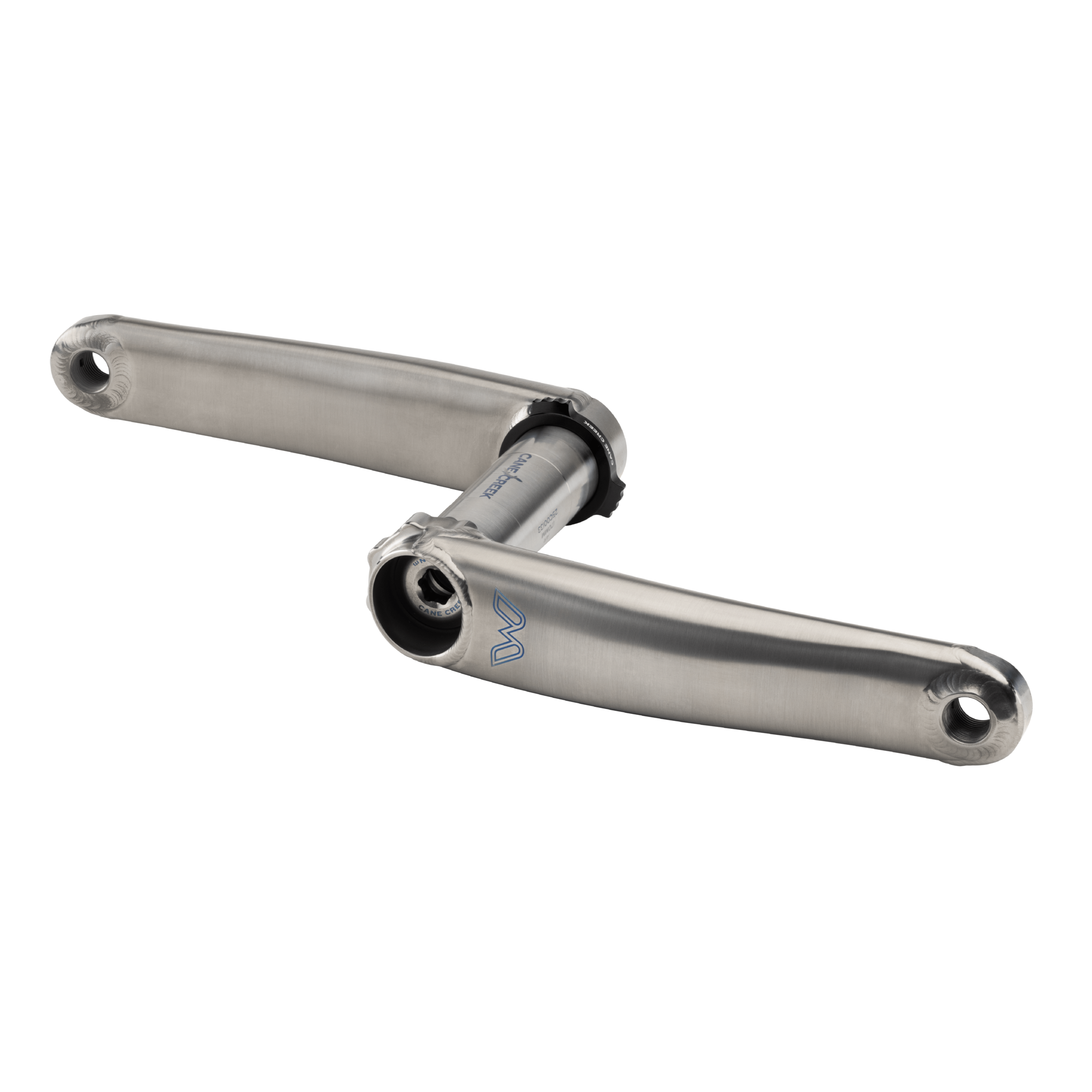

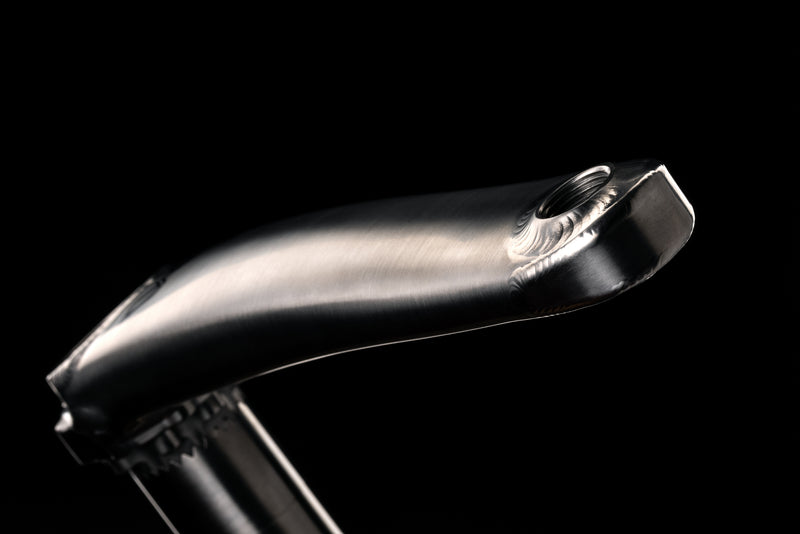

100% Titanium: Butted 3/2.5 tubular titanium arms with machined 6/4 titanium spindle & Hirth joint.
Carbon Light: Starting at 398g – as light or lighter than top carbon cranks.
Peace of Mind: Lifetime Warranty
Showstopper: Timeless looks and perpetual style - eeWings look good with everything.
Top Power Transfer: Independently tested as one of the stiffest cranks in the world, with the highest stiffness to weight ratio.
8-Bolt Compatibility: Fits nearly every bike frame and compatible with current drivetrains.

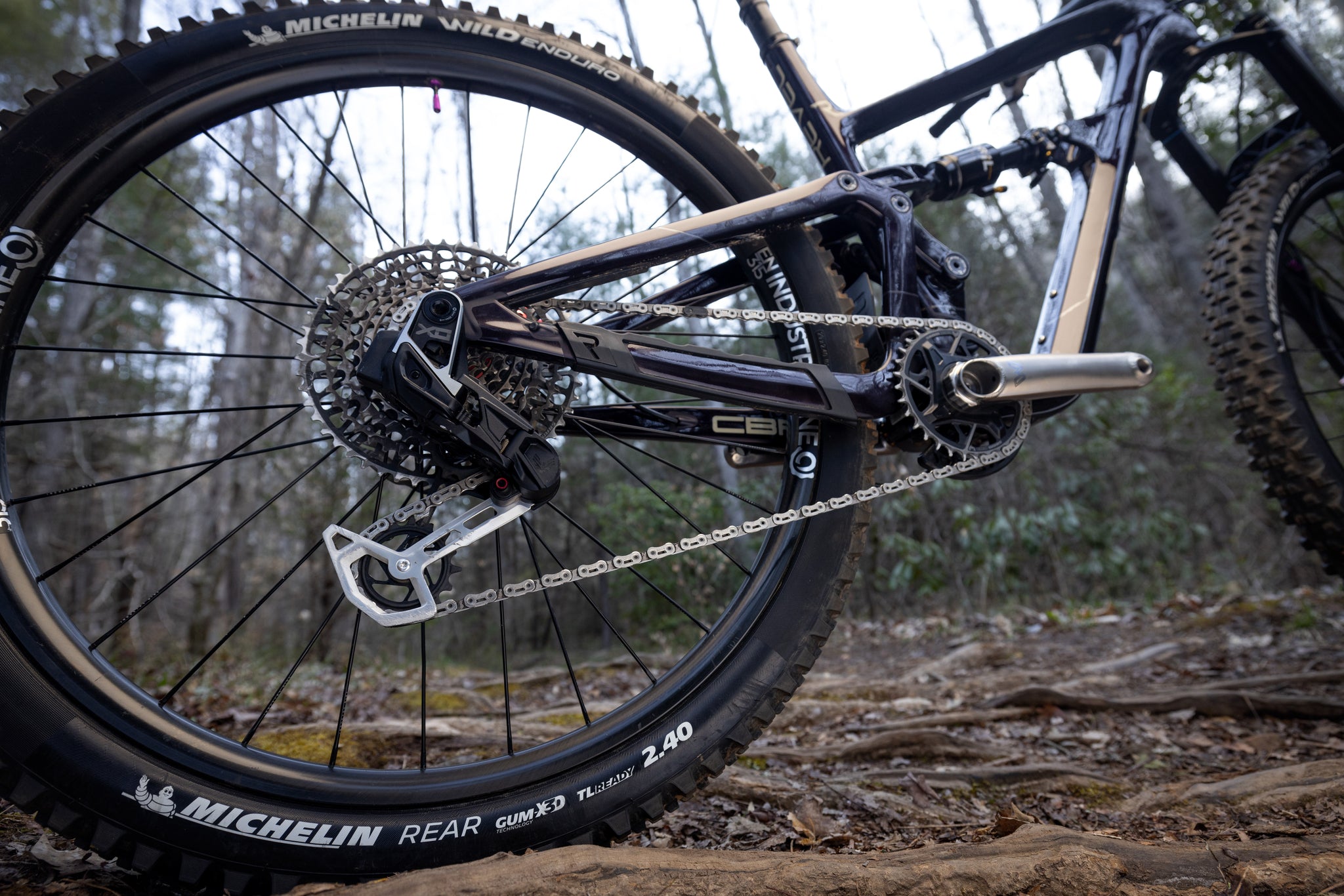

All-Road to Mountain: Incredibly low weight with unmatched durability – the holy grail crank for any type of bike.

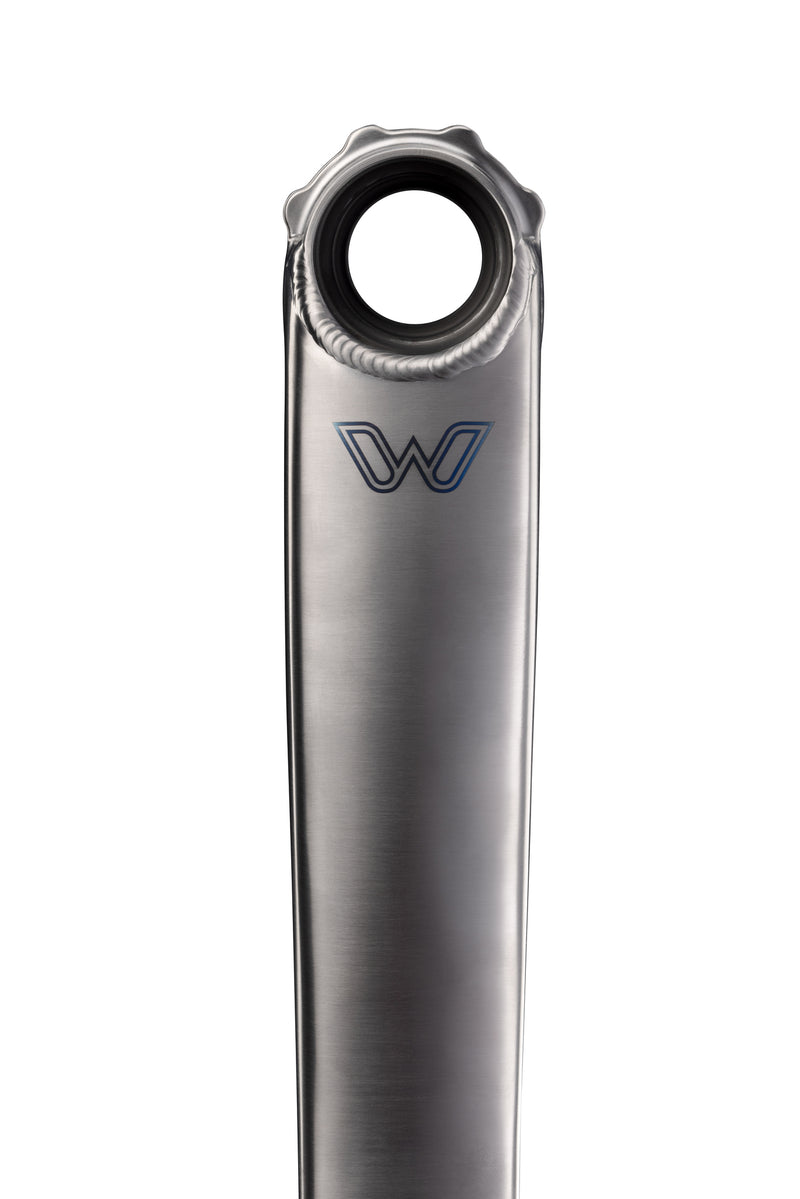

Easy to Refinish: Brushed Ti finish allows you to polish out scratches and blemishes with a basic Scotchbrite pad.
Marketing Assets
Details
PRODUCT SPEC
398 grams
Butted 3/2.5 titanium arms with CNC 6/4 titanium spindle and Hirth joint
Stainless steel 8mm crank fixing bolt and chainring bolts
MTN: 160mm, 165mm, 170mm | AR: 165mm, 170mm, 172.5mm
MTN: 176mm | AR: 160mm
Cane Creek CNC machined 7075 T-6 aluminum preloader
30MM
Sram 8-bolt - supports Transmission chainrings and Sram power meters. Compatible with Shimano GRX using Cane Creek GRX Spider.
Lifetime
BAI0315 - MTN 160mm
BAI0312 - AR 165mm
BAI0316 - MTN 165mm
BAI0313 - AR 170mm
BAI0317 - MTN 170mm
BAI0314 - AR 172.5mm
