Kitsuma Air
Contact us for availability.
Kitsuma turns your bike into a downhill bike. It hugs the ground on the roughest and steepest trails. It gives you maximum grip, a planted feel, and allows you to go faster thanks to a more personalized tune. It’s the only 4-way adjustable shock that’s tunable by hand – making it easier to move through the setup process and get back to ripping down the trail faster than before.
This second generation Kitsuma shock has updates that make it easier to tune and more reliable than ever.
All shocks are built to order by hand in our facility in North Carolina, USA. For estimated build times see below:
- Standard Mount & Trunnion Mount Kitsuma Air shocks will ship within 7-10 business days
Shocks are sold without Hardware.
All shock returns are subject to a 20% restocking fee.
Technical Documents
More Details
Second Generation Updates:

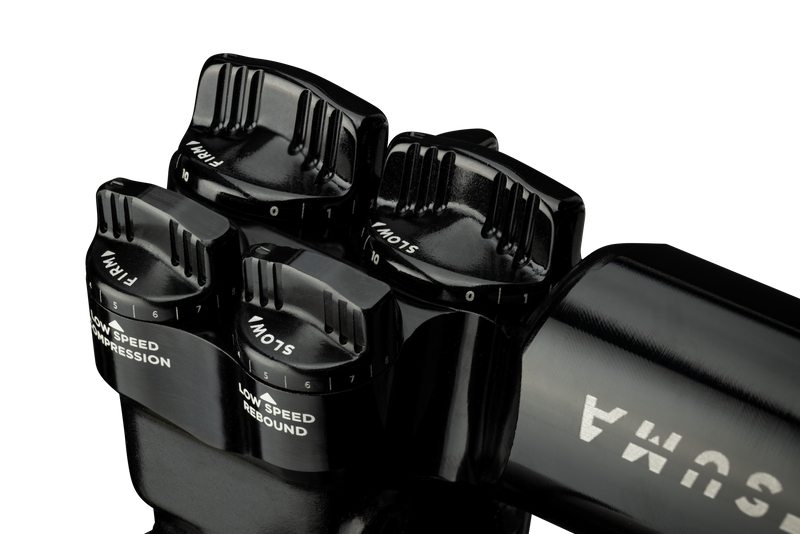

- More intuitive tuning ⇆ Single-turn dials on all adjustments with laser-etched position marks
- Precise feel ⇆ Easy-turn dials with machined grooves
- Greater Control on big hits & hard compressions ⇆ Higher maximum high speed rebound (HSR) damping force
- More plush feel ⇆ Lower minimum high speed compression (HSC) damping force
- Even more reliability ⇆ Updated valve seats and damper tube materials
- New look ⇆ Refined graphics plus new colorway options
Marketing Assets
Link: Kitsuma Marketing Assets
Details
PRODUCT SPEC

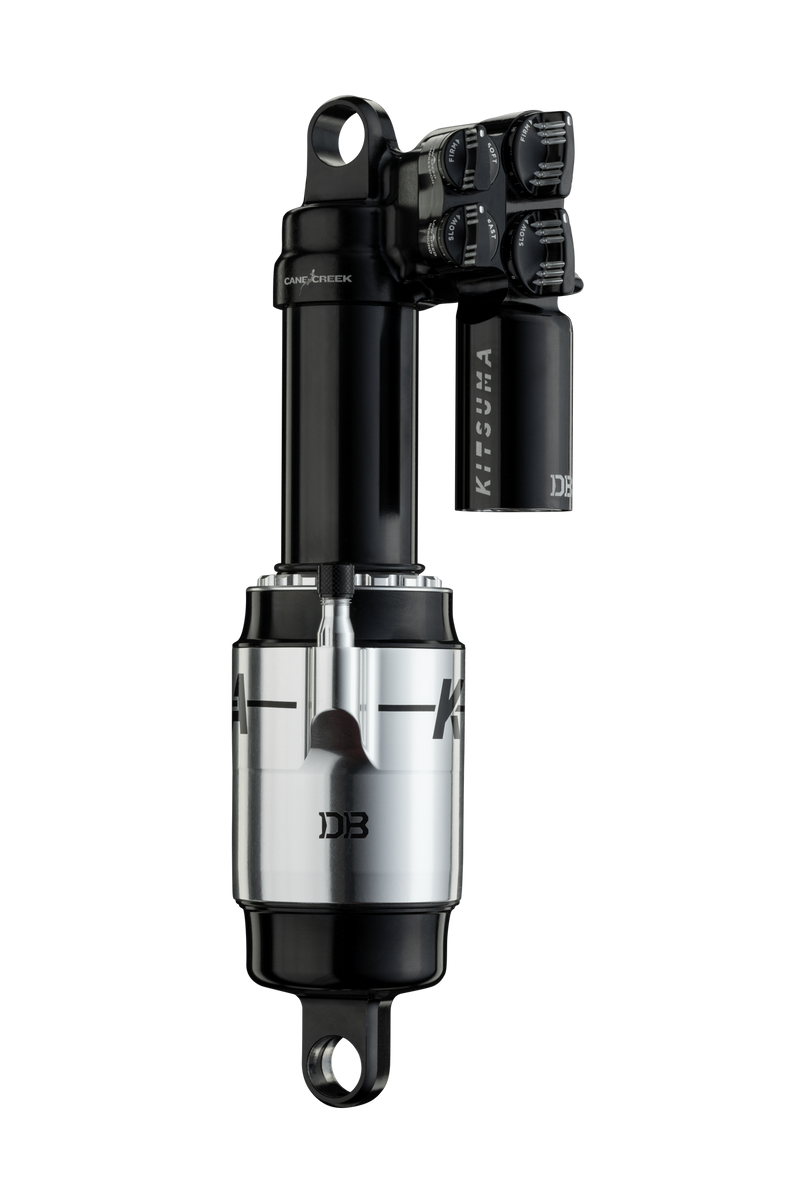

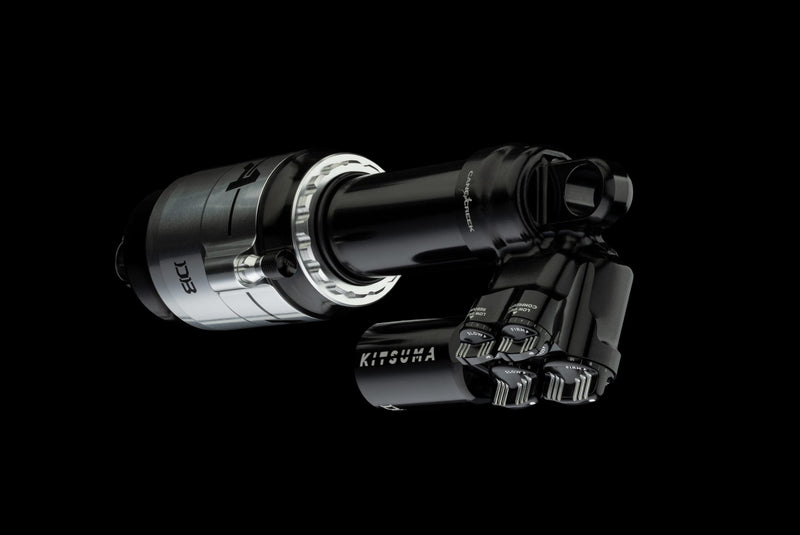

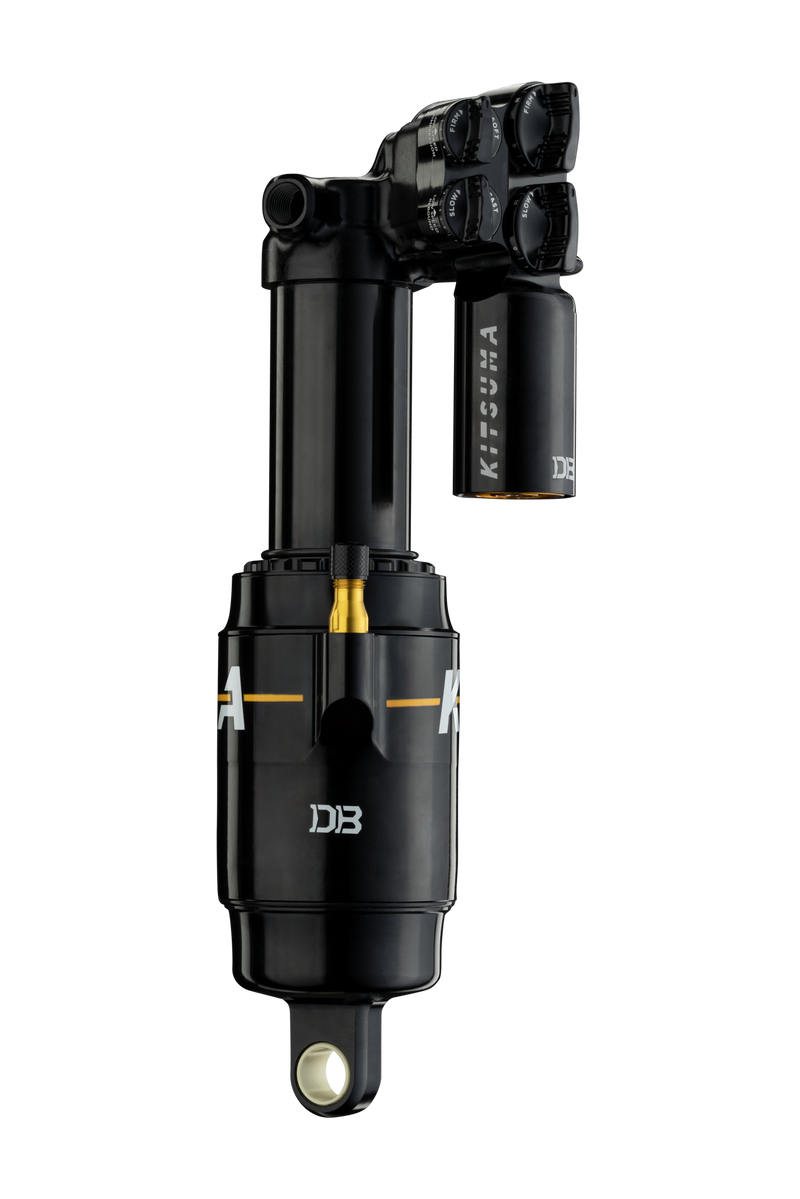

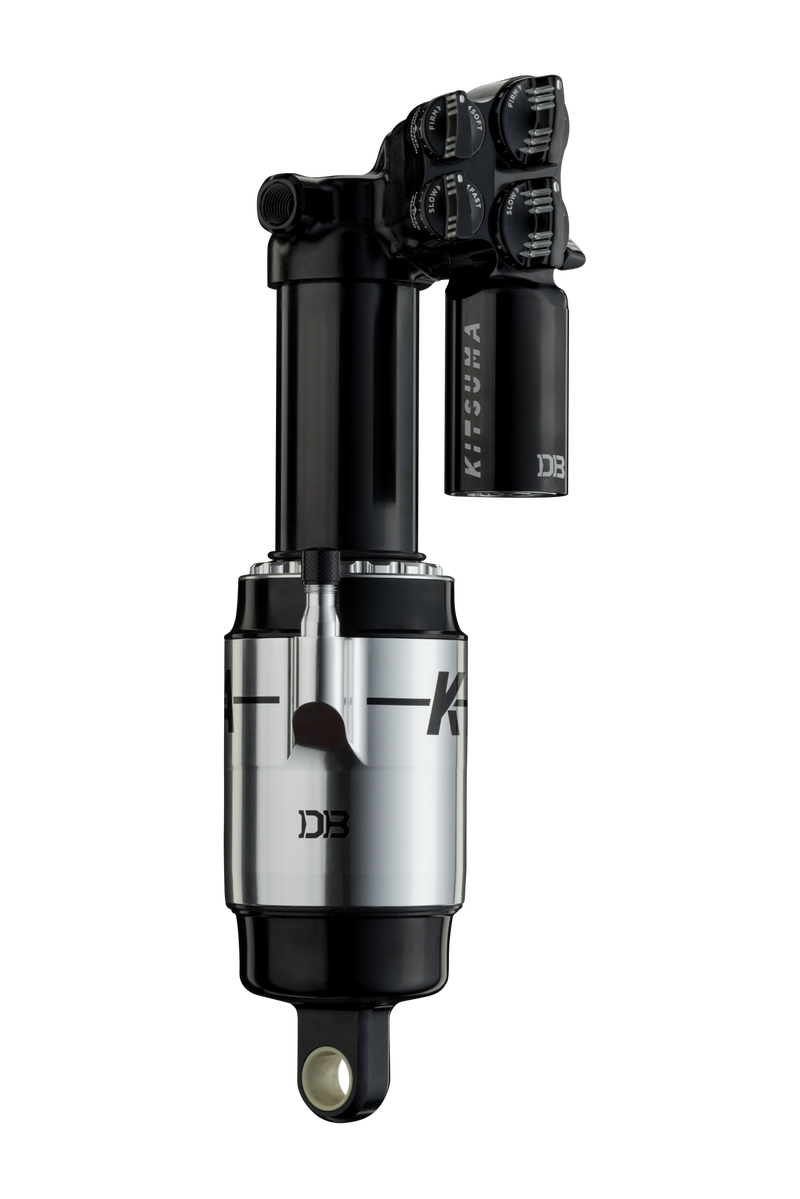

Black or Silver (limited qty)

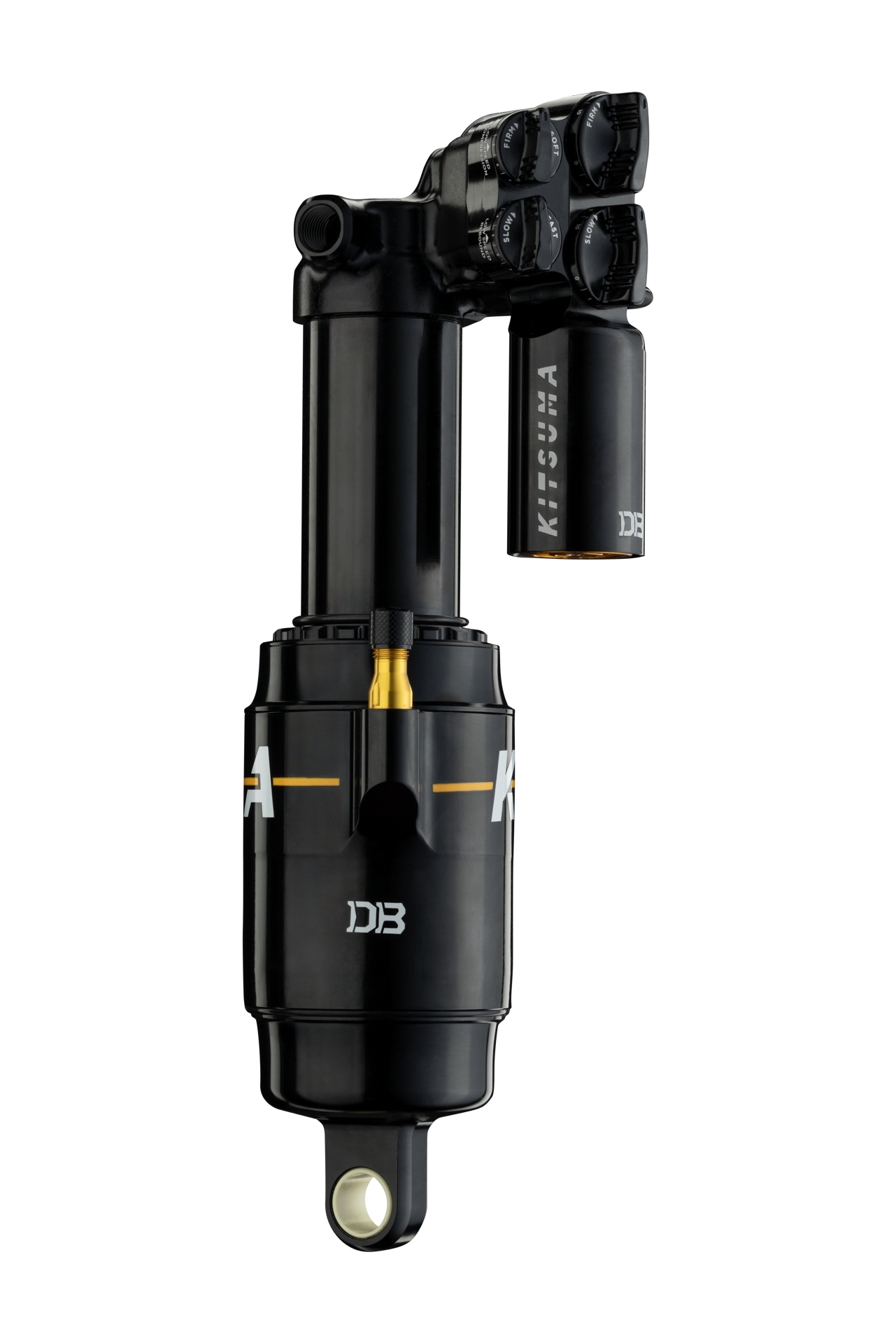

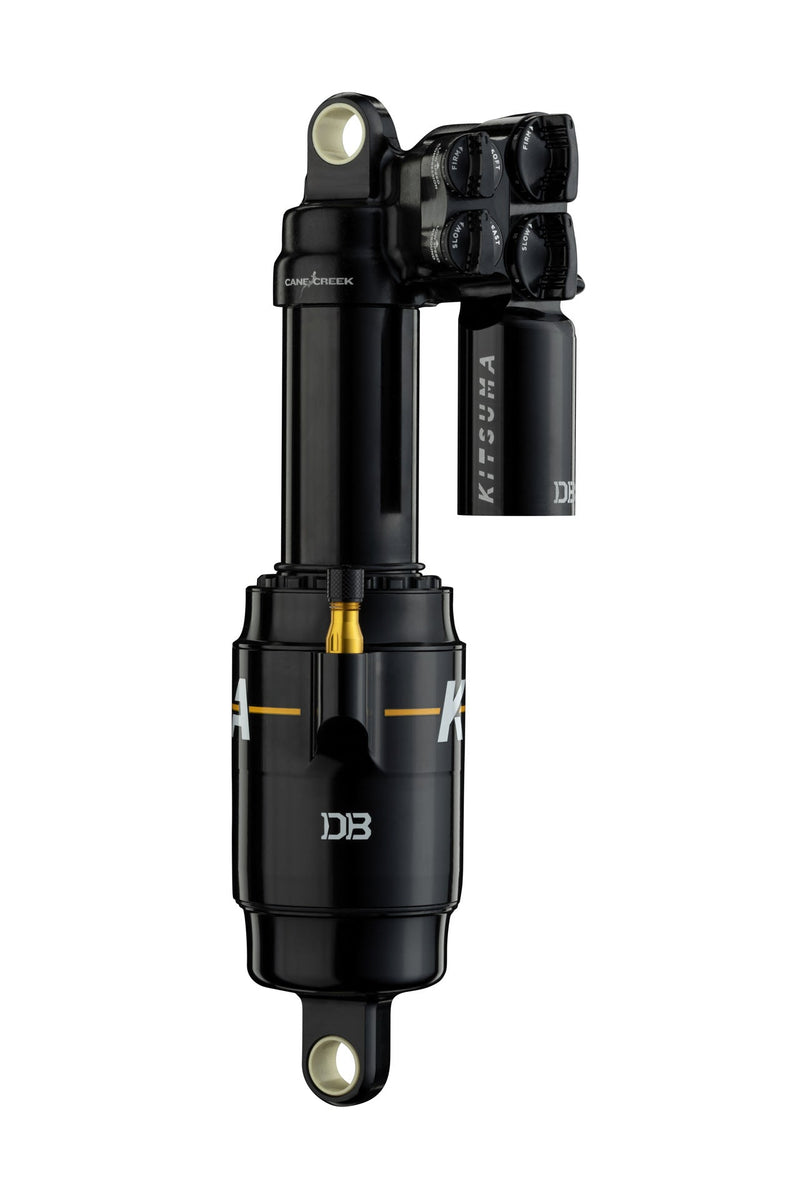

Standard mount: 210, 230, 250 in various stroke lengths, Trunnion mount: 185, 205, 225 in various stroke lengths
Twin-tube, independent high & low speed compression and rebound circuits. Motorex 4wt damper oil. Largest oil volume of Cane Creek shock line.
Single turn, 11 positions on: high speed compression, low speed compression, high speed rebound, low speed rebound. Kitsuma Air uses easy, tool-free volume reduction to increase progression

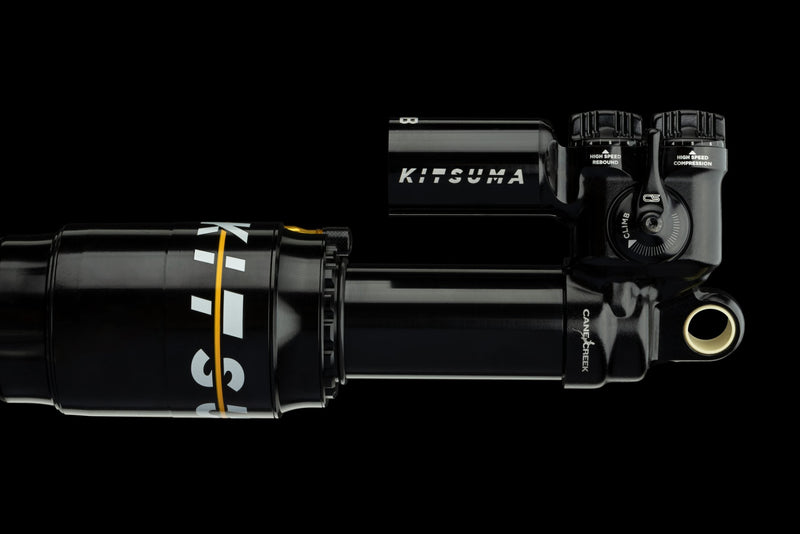

3 position CS lever : Open, Climb, Locked
9.5mm, solid steel
+/- 585g (Air) +/- 417g (Coil w/o spring) *varies by size
Hand-built and individually dyno tested in Fletcher, NC, USA
2 years
