eeBrakes

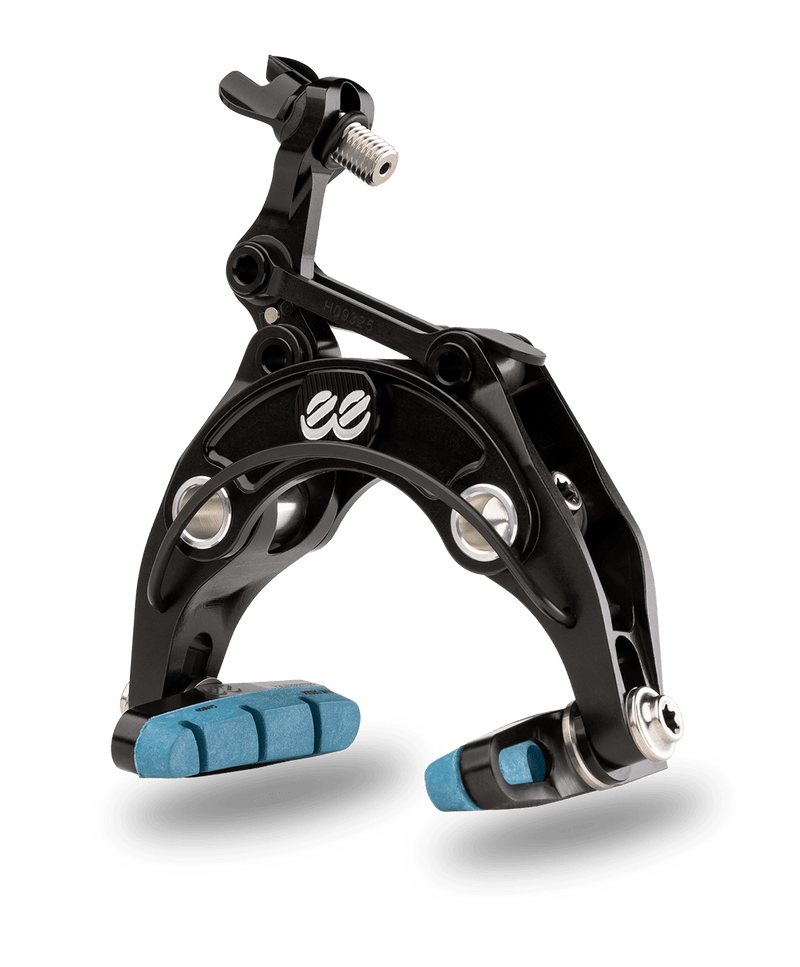

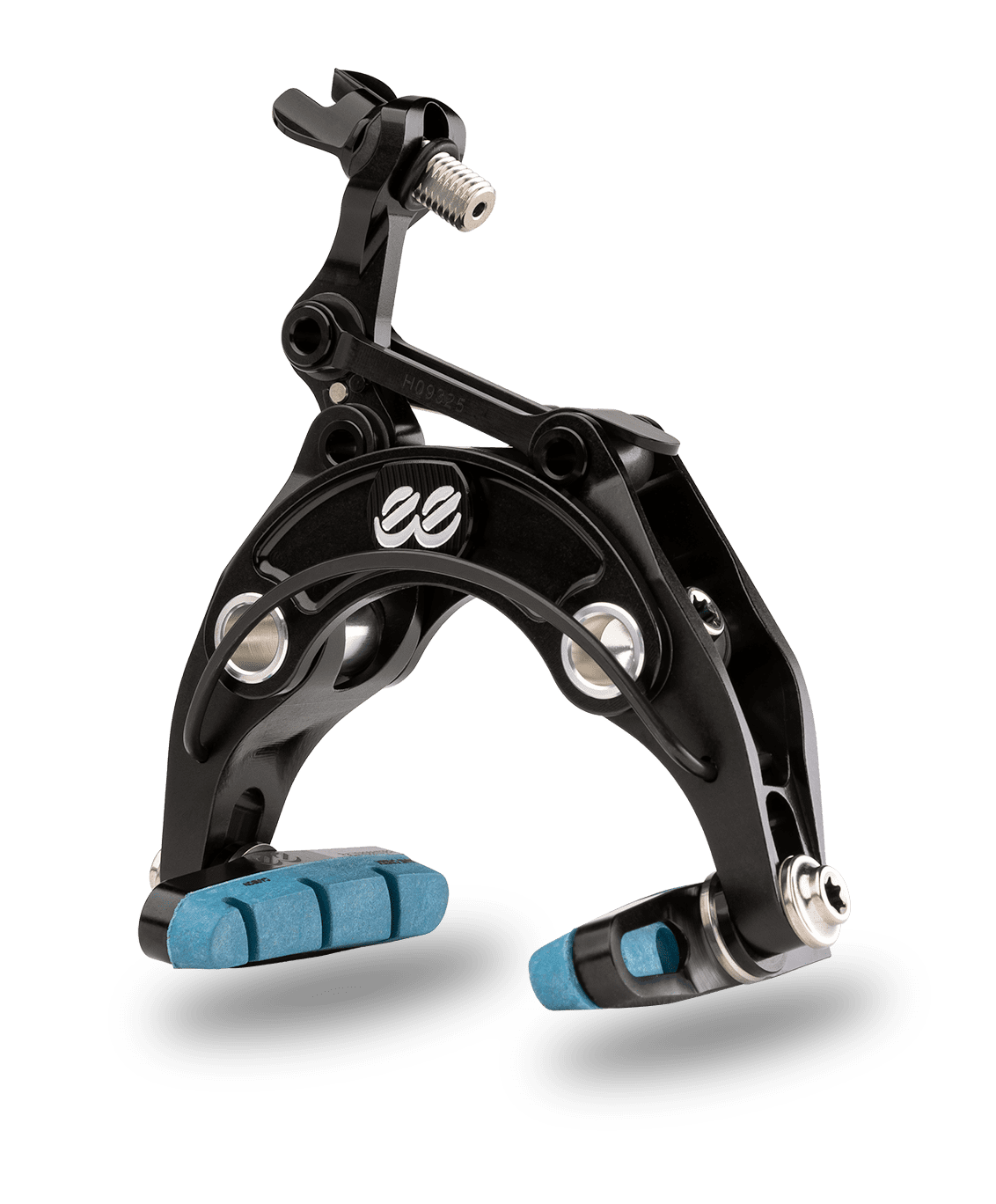

The eeBrake G4 is the fourth generation of the legendary eeBrake featuring 100% CNC machined parts, a wider design optimized for 22 – 28mm rims, stiffer black arch spring, a revised one-piece center adjuster with built in resistance for easier use and ghosted laser etching that will stand the test of time – all with the same extraordinary stopping power and light weight that you’ve come to rely on from eeBrakes.
Highlights:
- 83.7 grams (rear), 85.3 grams (front)
- 100% CNC machined parts

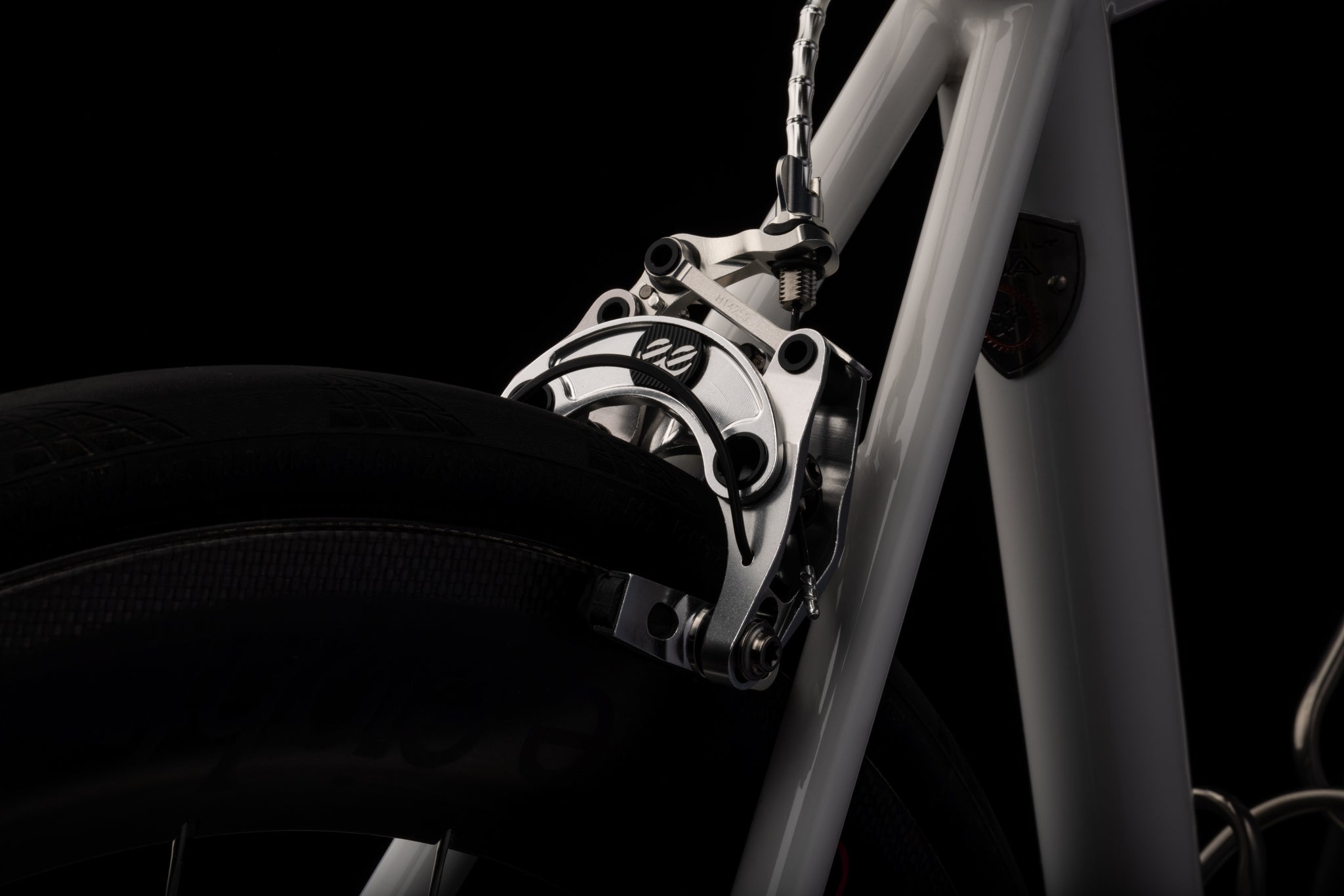

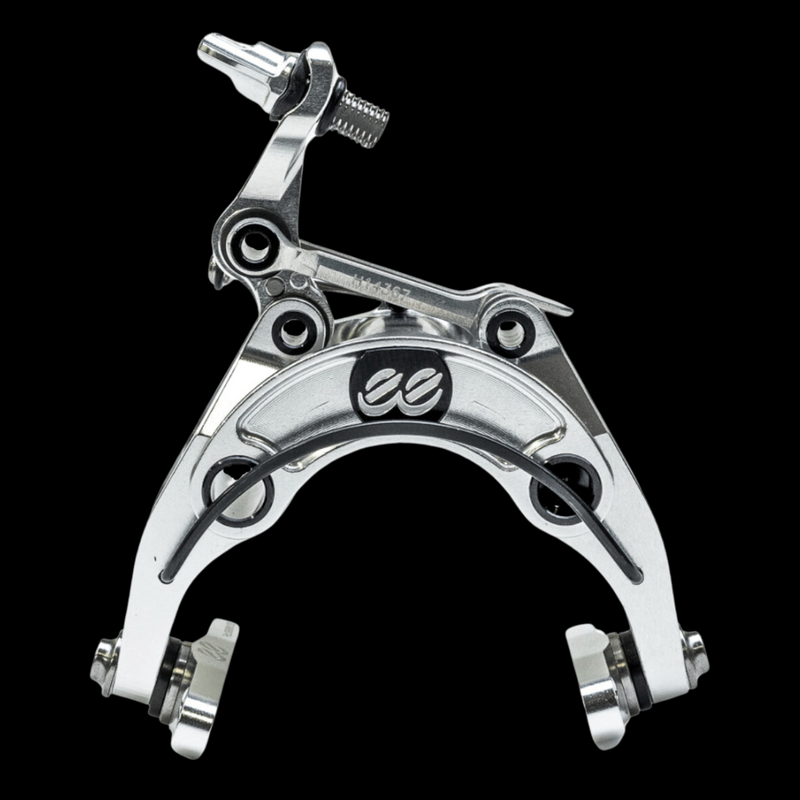

- Now available in both black and silver
- Compatible with 19mm to 28mm rims
- Carbon compatible brake pads included with every brake
- Aerodynamic design
- 3 Year warranty
Technical Documents
More Details
Perfect Cable Alignment

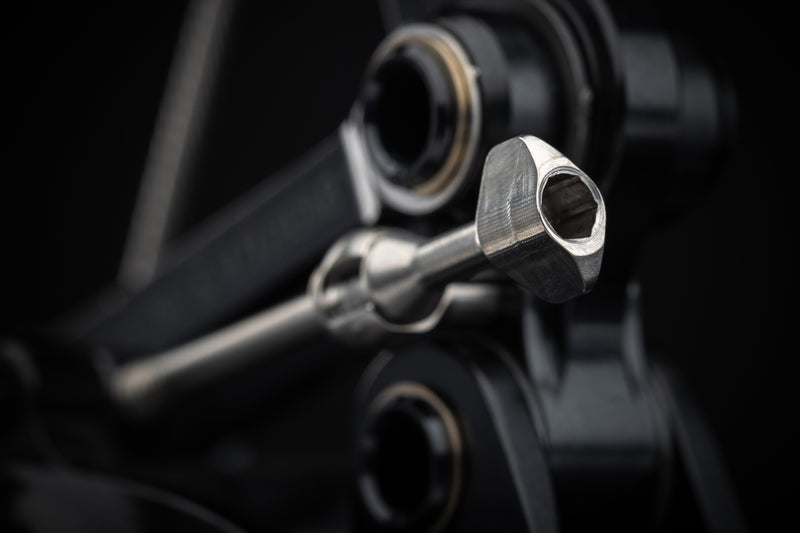

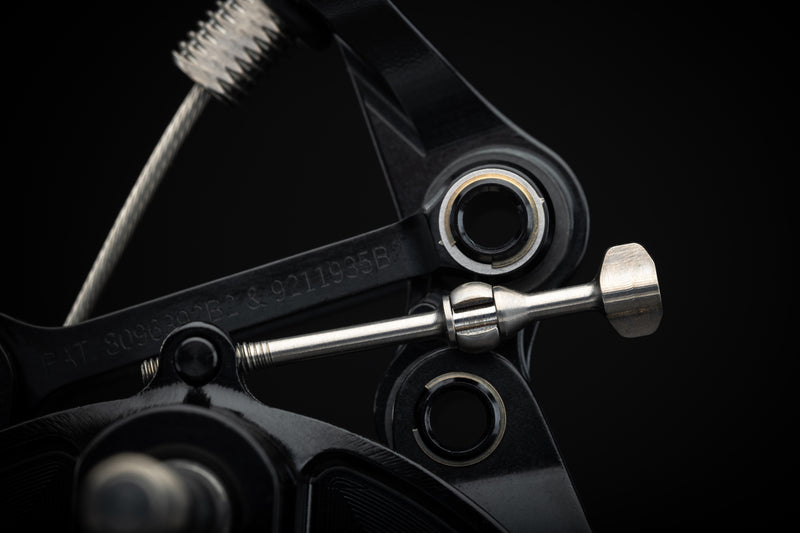

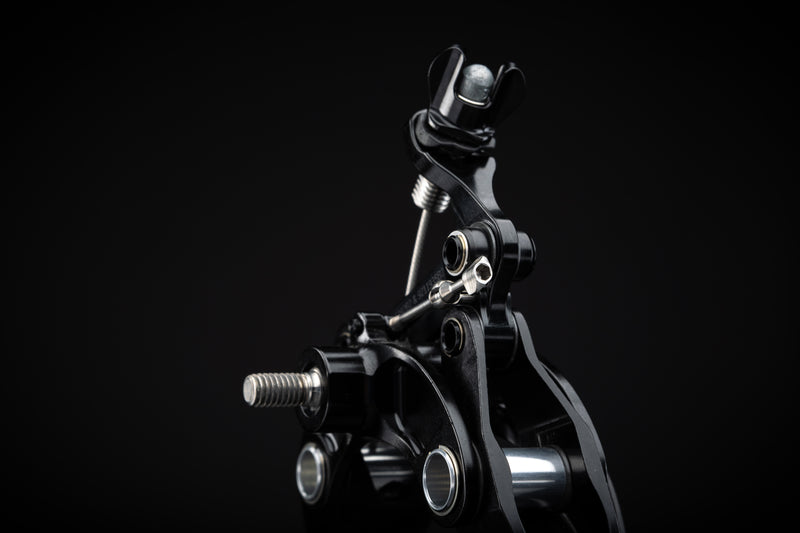

The titanium eeBrake cable adjuster pivots as the brake is applied, optimizing cable alignment during brake actuation. Also, the cable housing extends to lower tip of the cable adjustment screw eliminating added friction. That means, as the brake lever is squeezed, you get even and friction-free braking power.
Aerodynamic

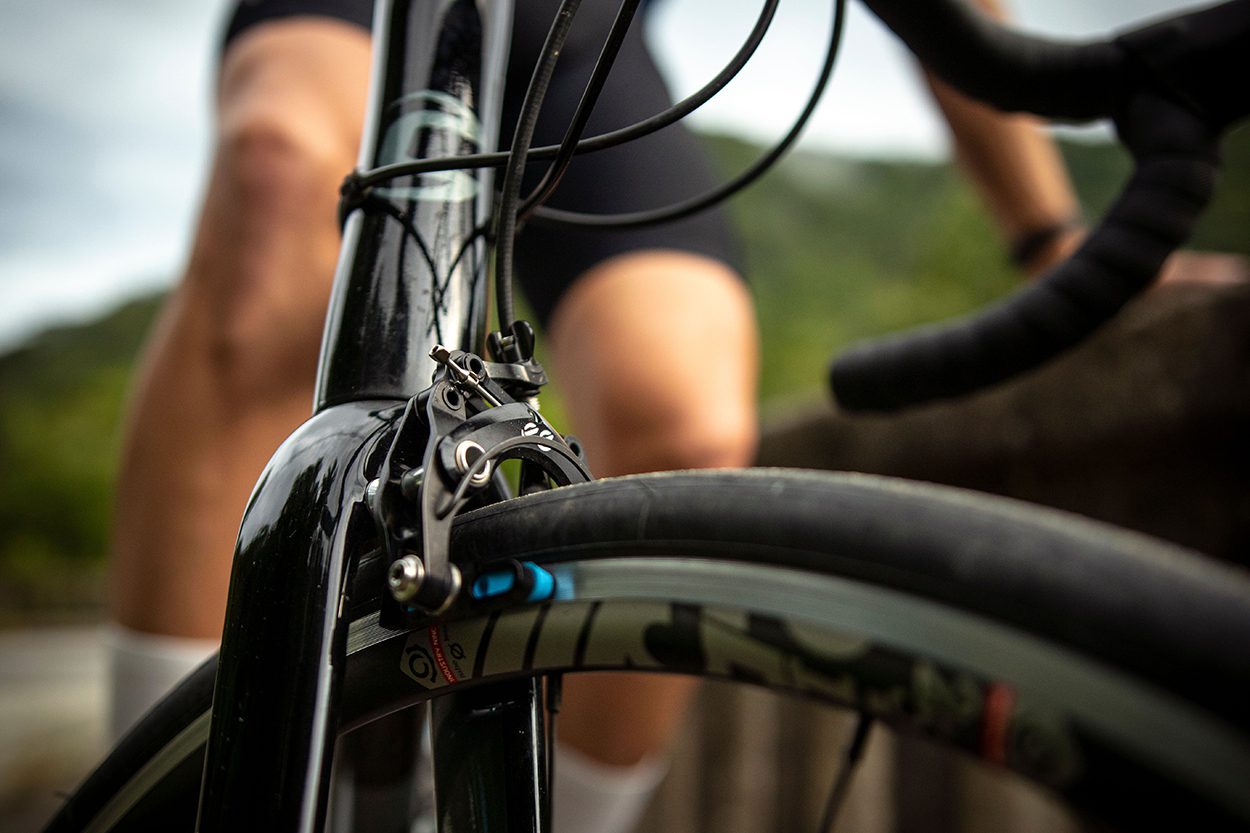

Cross Cable Path aligns the brake cable over the center of the brake. This alignment provides a graceful, clean line and moves cables into the “wind shadow” of the frame, providing an aerodynamic advantage over traditional brakes with their cables and lever arms off to one side of the caliper.
Marketing Assets
Link: eeBrake Marketing Assets
Details
PRODUCT SPEC
CNC High Grade Aluminum, Titanium, and Stainless Steel
19mm to 28mm
39mm to 49mm
Tool-free caliper centering adjustment
Wheel removal – quick release
Titanium Barrel adjuster w/ retention O-ring

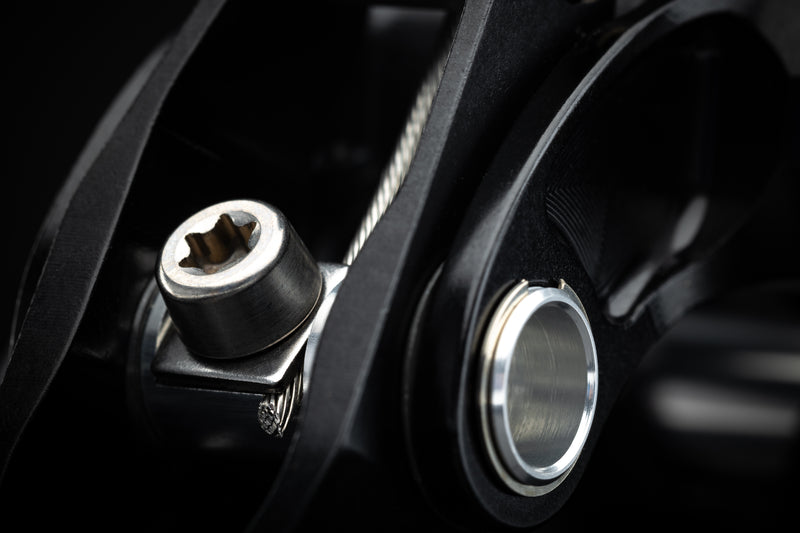

T-25 Torx pad holder / cable clamp
Optimized to work with Shimano, Campagnolo, and SRAM levers
Two stage anodized engraved aluminum ee badge
DIRECT MOUNT 78.4 grams (Front), 78.2 grams (Rear)
REGULAR MOUNT 85.3 grams (Front), 83.7 grams (Rear)
3 Years
Carbon and Aluminum compatible brake pad inserts.
*Carbon compatible brake pads are included with every brake.
