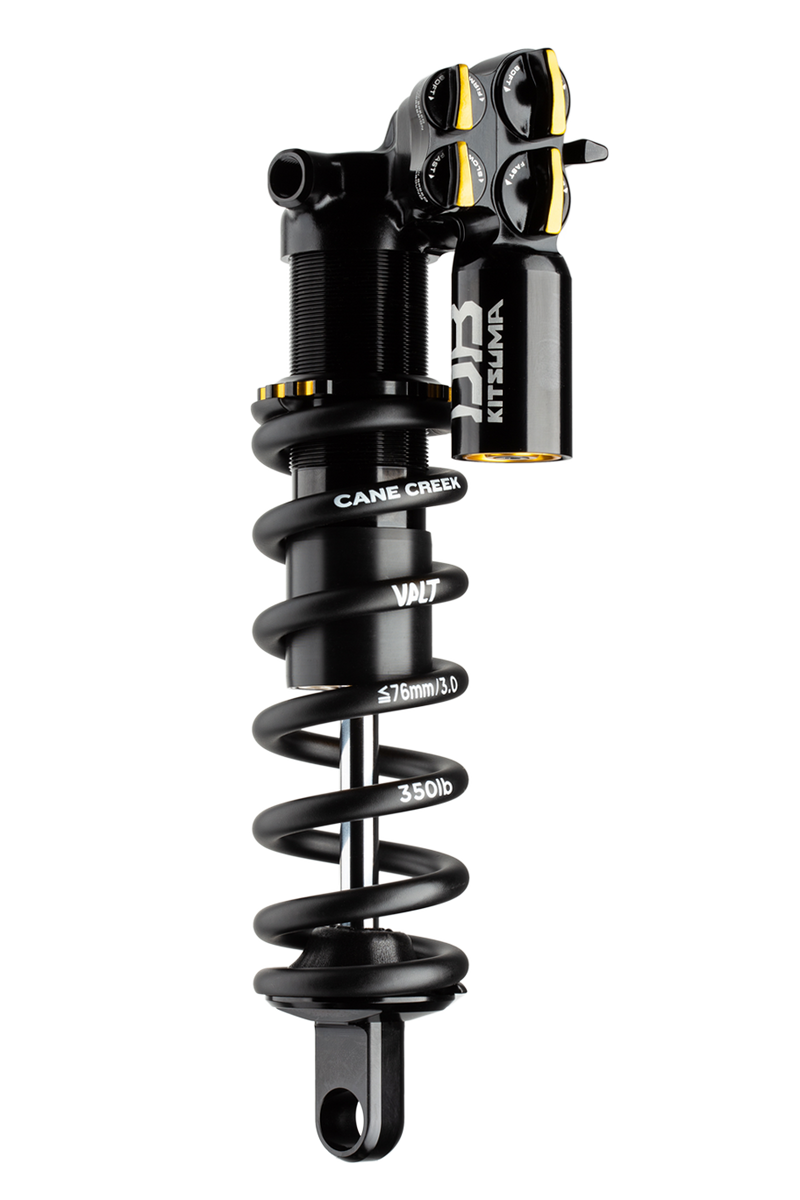

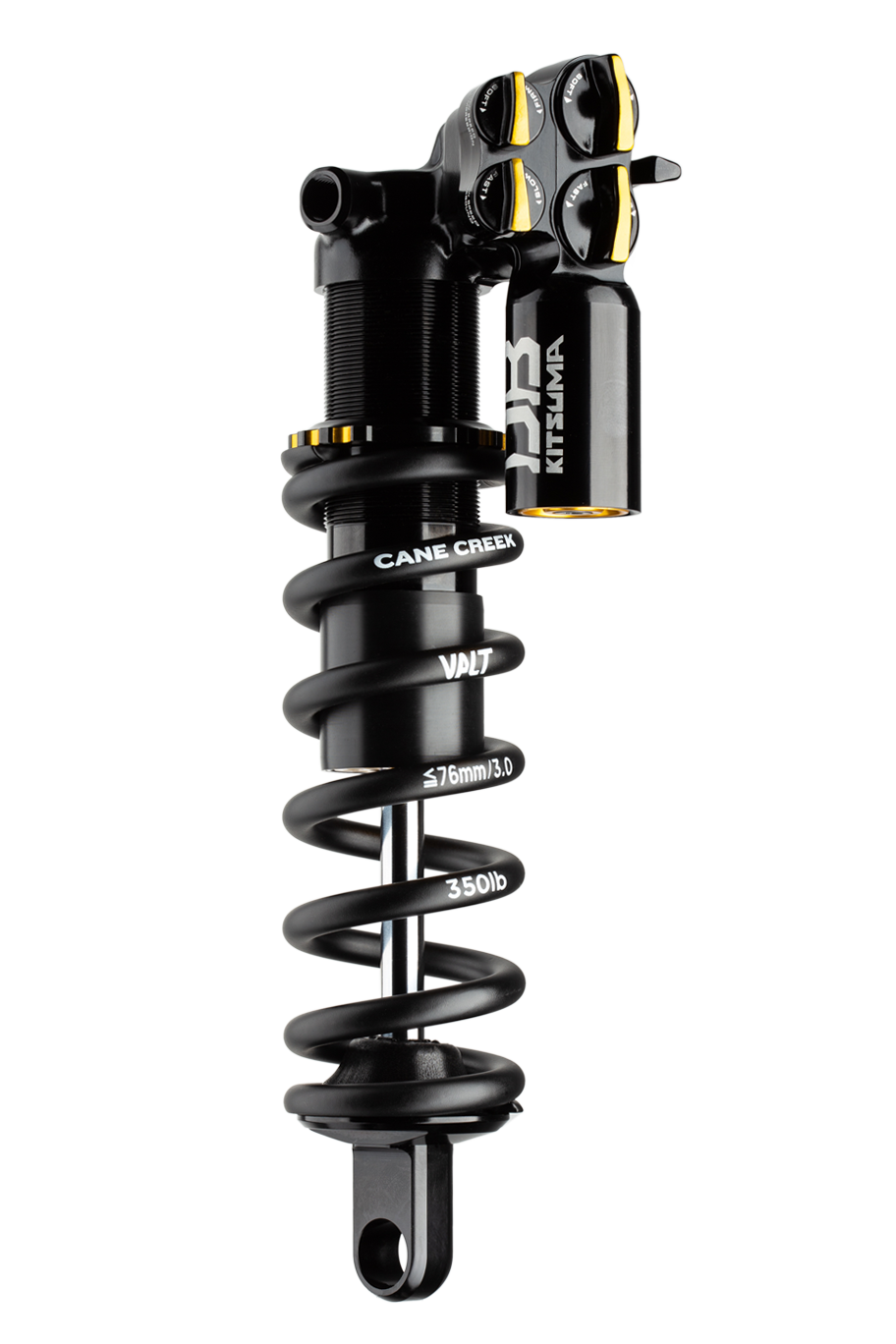

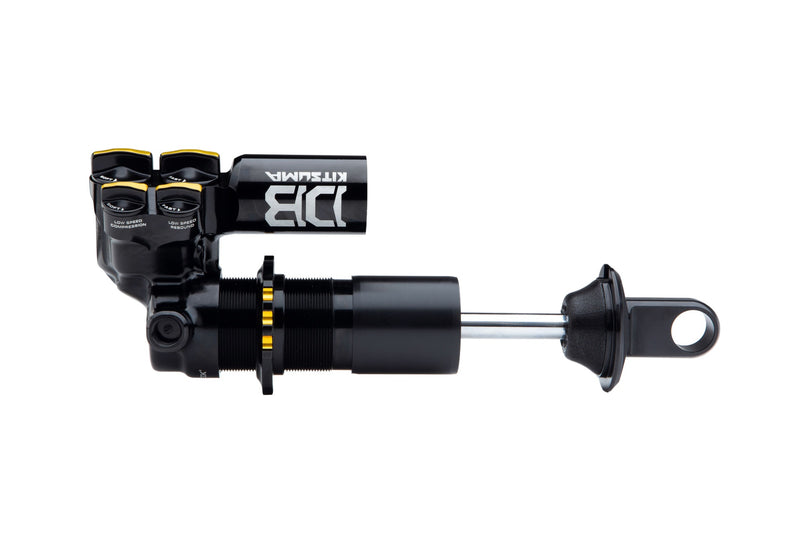

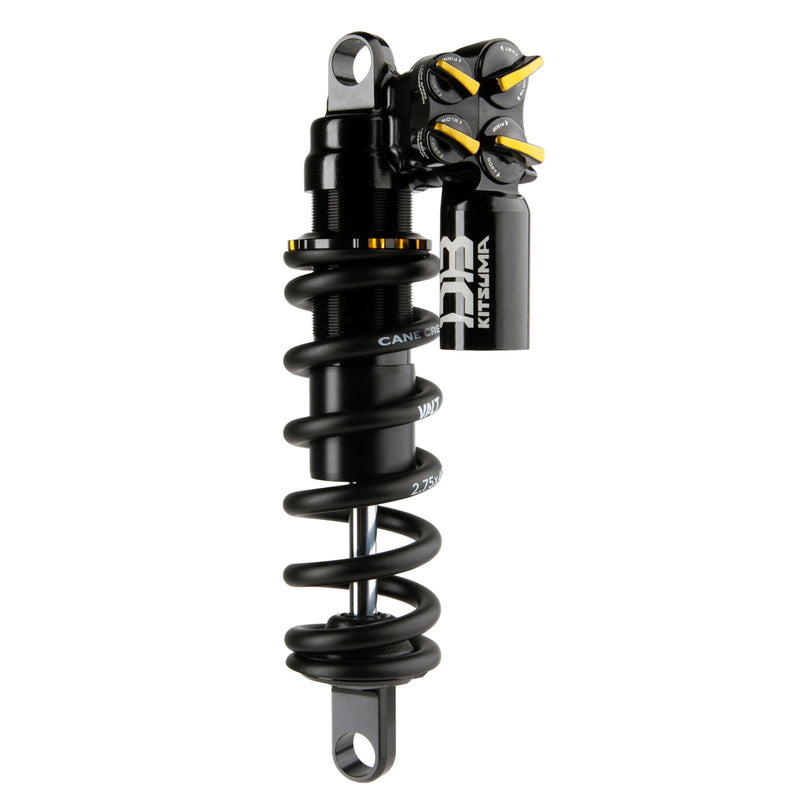

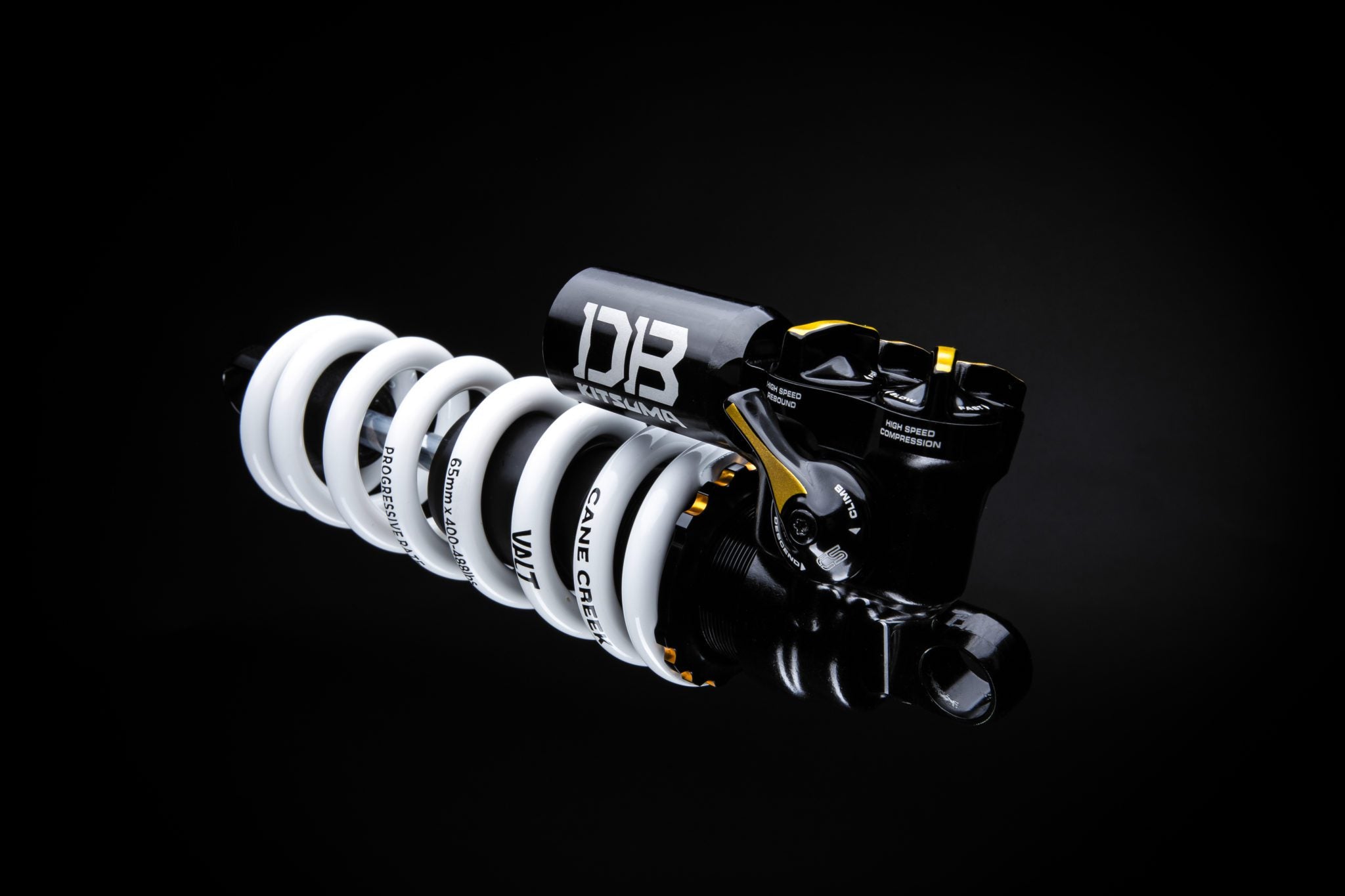

Kitsuma Coil

SKU: BCD0067
Sale price$450.00 USD

*Orders containing suspension are built to order and ship in 5-7 days. Please call customer support to confirm inventory.

FASTER WITH THE TURN OF A DIAL

Kitsuma is a strong, gravity-first shock that allows you to go faster thanks to a more personalized tune. With the increased ground-tracking sensitivity of a coil spring and the most damper oil of our entire shock family, it offers amazing downhill performance and maximum possible grip.

Kitsuma’s defining feature is its tool-free, 4-way damper controls. Easily adjusted by hand and offering a visual indication of your settings, Kitsuma encourages you to develop your own custom, pro-level tune – all in the name of supporting you getting down the hill faster and with more control than before.

Kitsuma favors descending but it’s not afraid to climb, with a rock-solid firm setting, it’s a gravity-first shock that wants to be pedaled to the top of the mountain for another run down.

Highlights:

  • Tool-free, 4 way adjustment
  • 3 position Climb Switch: Descend, Climb, Firm
  • Coil spring gives greater sensitivity and smoother, ground-hugging feel
  • Larger diameter damper shaft, more bushing overlap, and redesigned oil seal head for greater durability
  • Progressive bottom out bumper for greater end-stroke support
  • Need help tuning your shock? Visit our Rear Shock Tuning Guide

More Details

Show details Collapse

Kitsuma has seen a series of significant improvements over previous Double Barrel shocks, including:

  • Redesigned Main Piston that’s been Ported and Polished = Increase Responsiveness
  • Higher volume positive and negative air springs for increased sensitivty = GRIP
  • Monoblock Oil Seal Head Design = Improved Alignment and Durability
  • Progressive Bottom-Out Bumper = Greater End of Stroke Support
  • Larger Quad Rings, Shaft Bushings and Uncut Back-Up Rings = Improved Performance and Reliability.
  • 16% larger diameter damper shaft over our previous model for increased lateral strength

Marketing Assets

Show details Collapse


Details

PRODUCT SPEC

Weight

468g (DB Coil 210mm w/o spring)

Damping

DB Twin Tube Technology

Adjustments

High speed compression, Low speed compression, High speed rebound, Low speed rebound

Shaft Diameter

9.5mm

Manufacturing

Designed, tested, and hand assembled in Fletcher, NC

Warranty

Limited 1-year warranty
