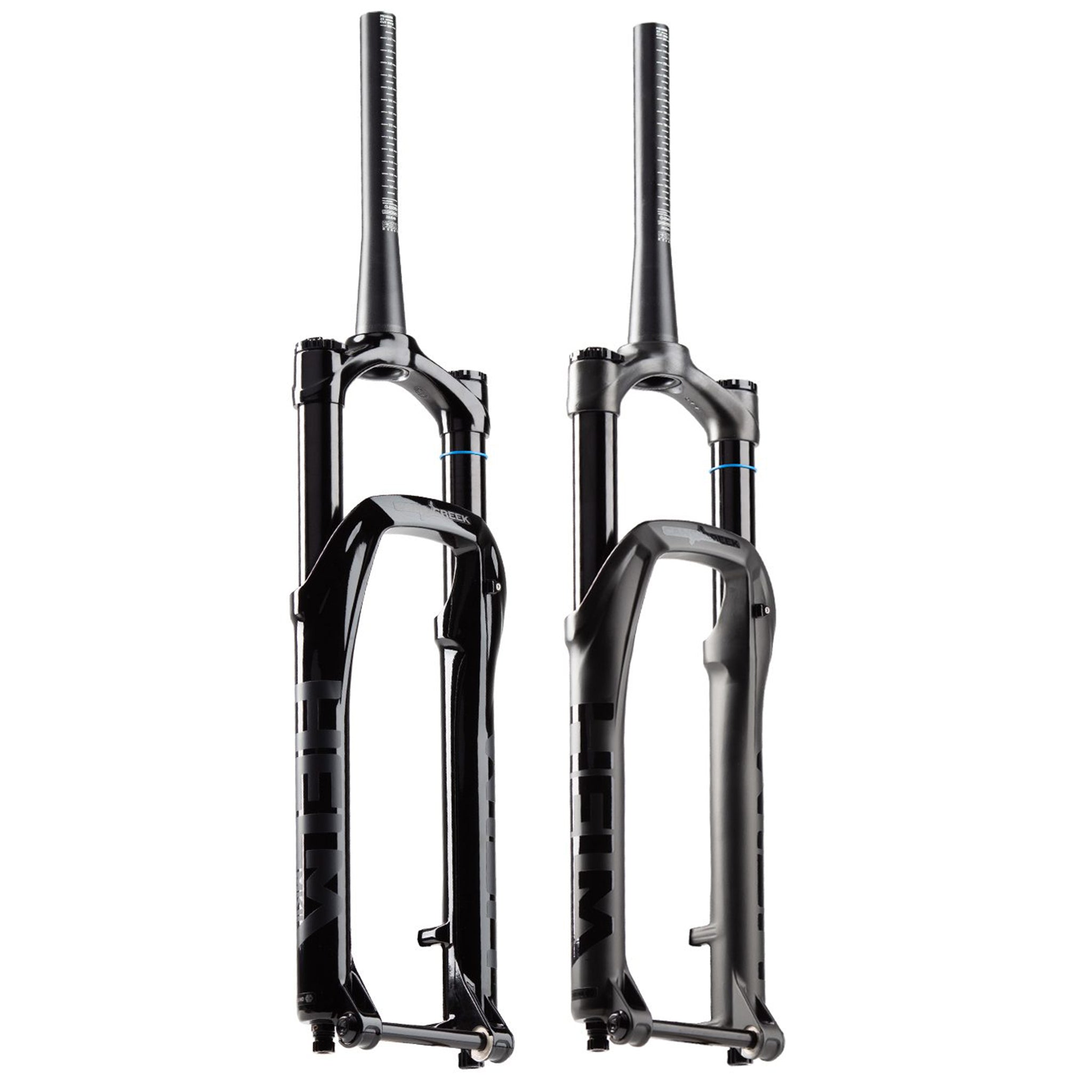

Helm MKII COIL
*Orders containing suspension are built to order and ship in 5-7 days. Please call customer support to confirm inventory.
The Helm MKII includes a newly designed damper featuring a new compression and mid-valve circuit for increased support and control while a new SKF oil seal head and 2.5 weight damper oil reduce friction and provide a more supple ride-feel.
Highlights:
- Next-level coil sensitivity and predictability
- 130mm – 160mm travel settings
- Easy to use preload adjuster
- Hand-built to order in Fletcher, NC
29 inch Helm forks come in a gloss black finish with matte black stickers and 27.5 Helm forks will come in a matte black finish with gloss black stickers.
Technical Documents
More Details
The Helm MKII is our first major revision of the Helm fork lineup and improves on its predecessor in nearly every way.
Full Revised Damper Tune
- New Compression and mid valve circuit for increased support and control
- New SKF low friction oil seal head cartridge
- High performance damper oil from Motorex
Spring Recommendations
- 35lb spring – AAG0421 RED – (90-120lbs rider)
- 45lb spring – AAG0422 BLACK – (120-160lbs rider)
- 55lb spring – AAG0424 GREEN – (160-200lbs rider) ** Stock Spring in Helm Coil
- 65lb spring – AAG0426 BLUE – (200-240lbs rider)
With changes in internal travel amount, rider positioning on the bicycle, bicycle head angle, and rider ability/style, spring rates will vary. For assistance please contact Cane Creek or your nearest Certified Service Center
Marketing Assets
Details
PRODUCT SPEC
2340 grams
High Speed Compression, Low Speed Compression, Low Speed Rebound
High speed compression (10 positions)
Low speed compression (17 positions)
Low speed rebound (10 positions)
Indexed travel adjust system
Spring pre-load adjust
55 lb Lightweight Coil Spring included from factory
35-45-55-65 lbs/in springs available
on our Parts and Accessories Page
35mm
180mm. *If you are using a Hope Tech brake on a Helm fork, you will need to use a 200mm rotor with appropriate adapter.
Optimized for 130-160mm of travel
Internal, 10mm Increments (160mm down to 130mm)
(No additional parts required)
"D-Loc" 15mm Bolt-on thru axle / 15mm x 110 BOOST spacing / 51mm and 44mm
64mm wide by 749mm tall (29) / 75mm wide by 739mm tall (27.5+)
