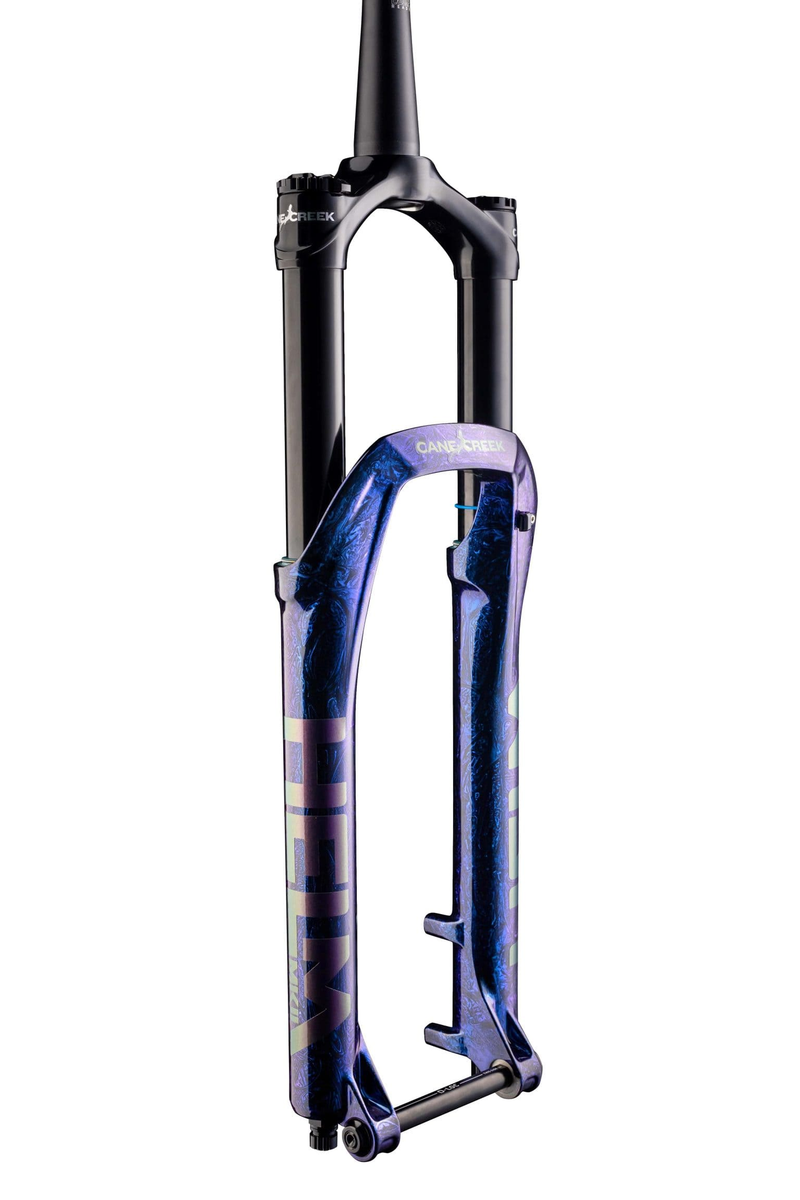

Helm MKII 29 Nebula

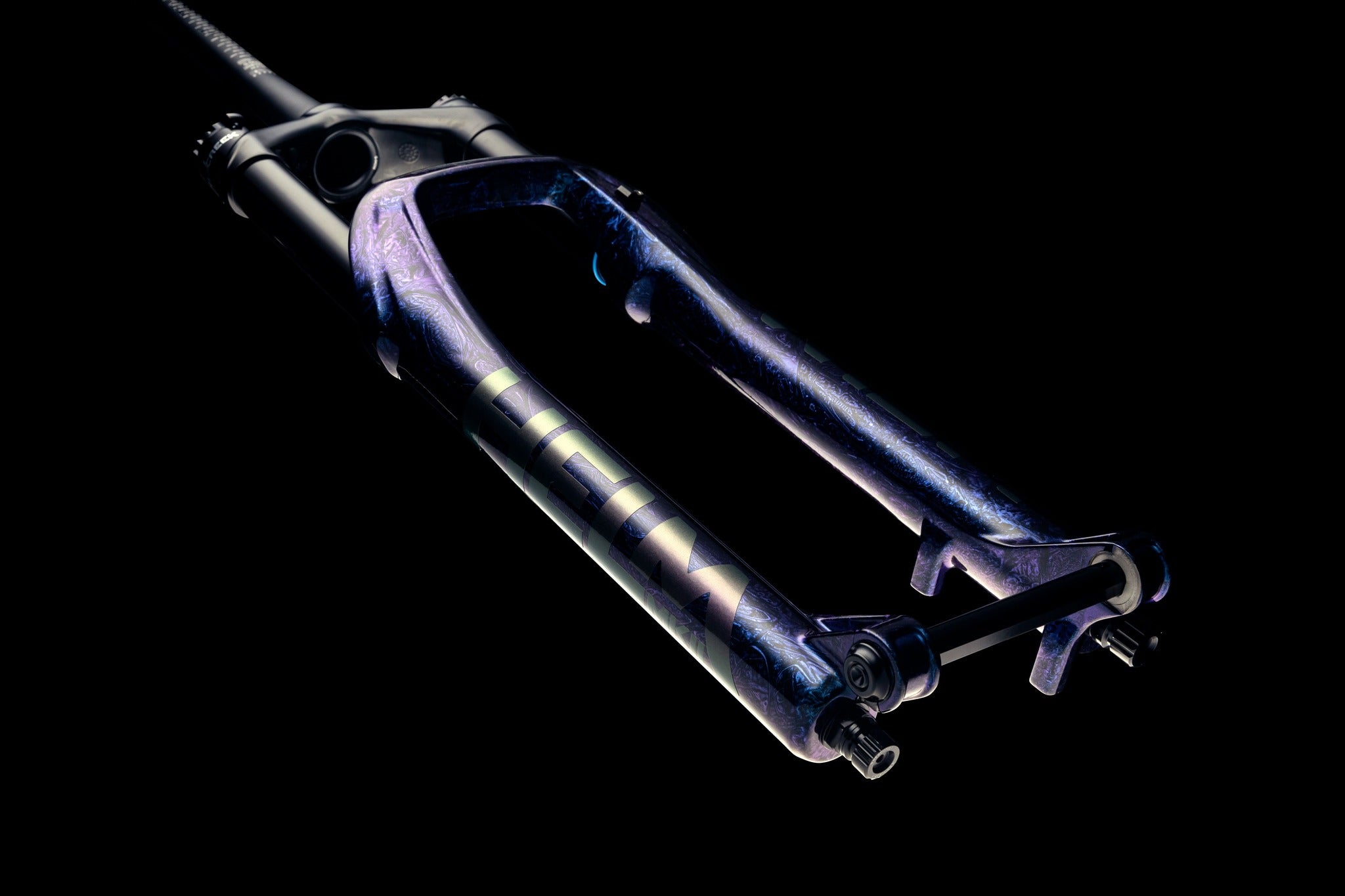

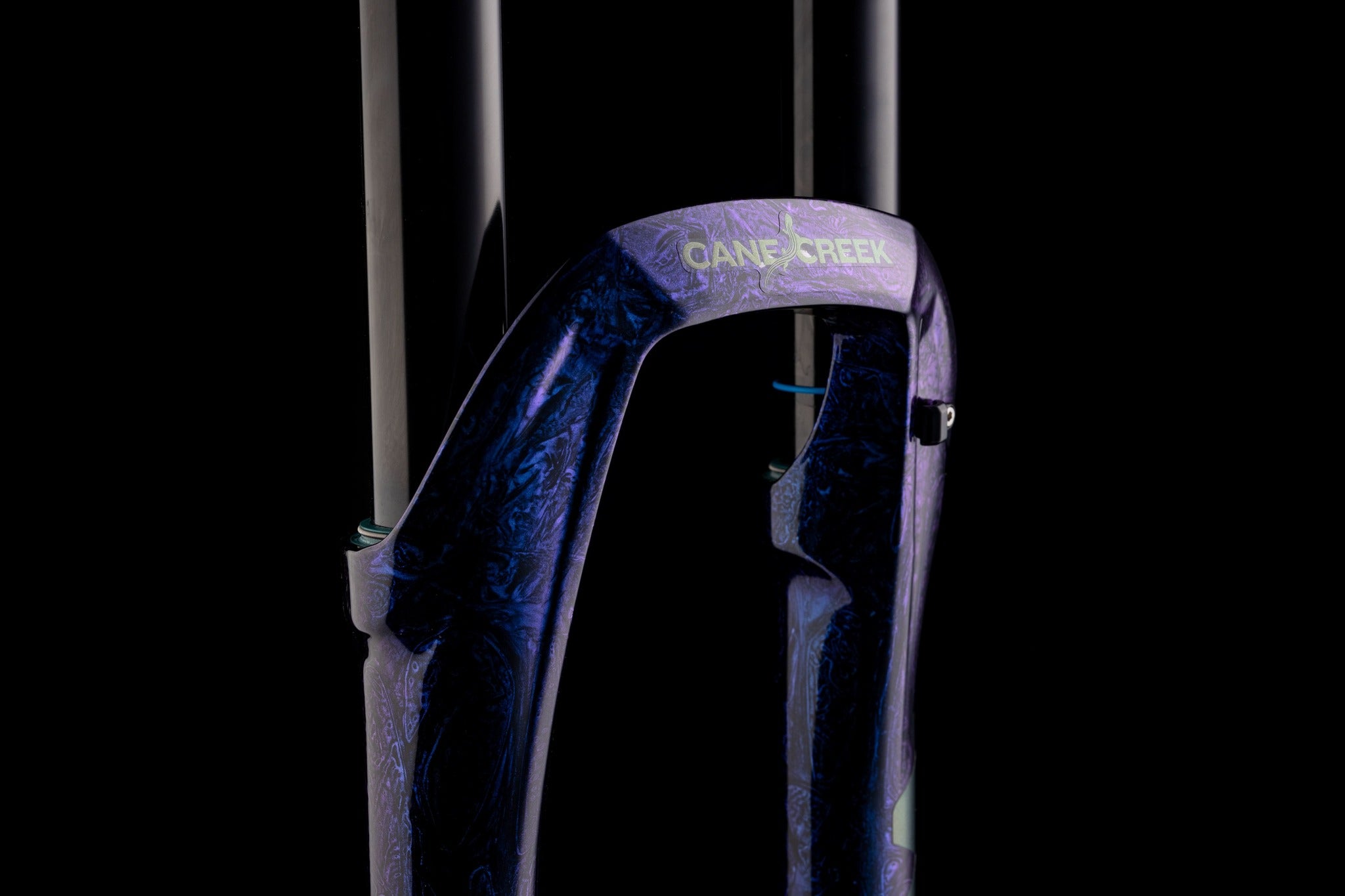

The Nebula casting is painted with a “Saran Texture” to give each fork its own unique pattern – along with a color-changing base paint that changes from green to blue to purple. This color and texture combination inspired the naming of this limited edition.
Helm MKII’s include a newly designed damper featuring a new compression and mid-valve circuit for increased support and control while a new SKF oil seal head and 2.5-weight damper oil reduce friction and provide a more supple ride feel.
Available in 29-inch wheel, Air or Coil, 160mm travel with a 44mm offset. All Helm MKII forks are easily travel-adjusted at home.
Don’t wait – Helm MKII Nebula is available in extremely limited quantities, in stock now!
Technical Documents
More Details
The independent positive and negative air chambers – along with the self contained indexed volume adjustment system allow all Helm air forks to be set up for any rider and any style.
The Helm MKII air spring has a redesigned air piston which increases air volumes and reduces friction, greatly improving traction and suppleness on trail. The threadless seal head and manual negative air charge button designs allow for easy travel setting adjustments and the ability to properly set up riders of all different sizes and abilities.
- Indexed Air Volume Adjustment (No tokens)
- 30psi Minimum Operating Pressure
- Tunable Negative Air Spring
- Internally Travel Adjustable
Marketing Assets
Details
PRODUCT SPEC
2080g – Air
2340g – Coil
29"
35mm
Air Helms can be internally adjusted from 100-160mm,
Coil Helms can be adjusted from 130-160mm
64mm wide by 749mm tall
15mm x 110 BOOST
44mm Offset
BAG0685-AURORA – Air – 160mm
BAG0692-AURORA – Coil – 160mm
