DBKitsuma Air Complete 100 & 200 Hour Service (Part 2 of 4)
DBKitsuma Air Complete 100 & 200 Hour Service Instructions
Mar 2022 orig., Jul 2023 rev.
Table of Contents
Recommendations and Warnings
Cane Creek recommends only trained suspension technicians perform service on all suspension, using all required tools and following all proper procedures. Anyone without access to the proper equipment or with any concerns on the procedures should defer to an authorized Cane Creek service center for service. Improper service can result in loss of performance or suspension failure. All Cane Creek shocks have pressurized nitrogen and oil, even coil shocks. Follow the service procedures exactly as written to avoid possible injury or harm to the suspension. Always wear eye protection while performing suspension service.
Please dispose of all waste products and materials through proper channels to avoid contamination of the environment.
Any damage or issues resulting from improper service will not be covered by warranty. If you have a shock still in its original warranty period and do not wish to void your warranty, please contact an authorized Cane Creek service center.
These service instructions cover the basic service procedures using standard service kits. If your suspension requires parts beyond standard replacement parts – shaft, damper tubes, end eyes – please consult your authorized Cane Creek service center or contact us at our Cane Creek Support Center.
Service Notes
The Kitsuma Air and Coil share many service steps. Additionally, the Standard and Trunnion variants of both models have identical service procedures other than where to clamp the cylinder head. Some images in these instructions may not be identical to the valve body or outer damper tube on the Kitsuma Air, but process is the same for the shock in the image and the shock on your bench.
100 vs. 200 hour service
The only difference between the 100 hour service and the 200 hour service is whether to service or replace the Air Oil Seal Head and the Main Oil Piston. At 100 hours, those can be cleaned, serviced and reinstalled. At 200 hours, they should be replaced. If uncertain on hours, check for wear on the dual bushings inside the Air Oil Seal Head and on the piston band on the Main Oil Piston. When in doubt, replace both.
Service Kits
BCD0337 – Kitsuma Air Complete 100 Hour Rebuilt Kit (w/ Bladder)
OR
BCD0339-01 – Kitsuma Air Complete 200 Hour Rebuild Kit (w/ Bladder) – includes new Air Oil Seal Head & Main Oil Piston
BCD0169 – Bladder Res End Cap (if replacing older IFP system)
Required Cane Creek Tools
ACD0354 – Bladder Res End Fill Tool
AAD1361-01 – DBCoil/ DBAir – Oil Fill Needle Adapter
DBT016 – DB Gas Fill Needle
AAD0555 – 8mm & 9.5mm Shaft Clamp
AAD2465 – Kitsuma Valve Seat Tool
ACD0322 – Kitsuma Low Speed Detent Funnel
BAD1298 – DB 9.5mm Shaft Bullet
ACD0334 – Kitsuma Air Oil Seal Head Tool
BCD0344 – Kitsuma/DBair/DBair IL Air Seal Head Tool
DBT012 – DB IFP Setting Tool
Additional Tools & Supplies
Allen wrenches – 3 & 4mm
Torx wrenches – T10 & T20
Sockets – 4, 8 & 13mm
Crowfoot wrenches – 1/2″ & 32mm
9.5mm Shaft Bullet
Torque wrenchesKnipex pliers
Pick
Strap wrench
Suspension Grease
PolyLube Grease
Motorex 4wt Racing Fork Oil
Royal Purple 10w-30
Vacuum Oil Fill Machine
Nitrogen Fill System
Torque, Loctite, Oil & Nitrogen Specs
Torque & Loctite Chart
Part | Torque Spec | Loctite Spec |
---|---|---|
Shaft Bolt | 5 Nm | 243 (Blue) |
Outer Damper Tube | Tight | 263 (Red) |
Valve Seat | 4.8 Nm | None |
High Speed Adjuster | 7 Nm | None |
Climb Switch Screw | 1.2 Nm | 243 (Blue) |
Oil Seal Head | 22 Nm | None |
End Eye | 4.8 Nm | 243 (Blue) |
Inner Air Can/Air Seal Head | 22.6 Nm | None (PolyLube) |
Oil Chart
Oil Location | Oil Type | Oil Amount |
---|---|---|
Air Can | Royal Purple 10w-30 | 5 mL |
Damper Fill | Motorex 4wt Racing Fork Oil | Fill to 3 Bars |
Nitrogen Chart
Nitrogen Location | Nitrogen Pressure |
---|---|
Valve Body | 11 - 12 Bars |
Damper Disassembly (con't)
Step 12 – Low Speed Needles Removal
Using 4mm socket, unthread and remove the low speed needles. Press out detent spring and balls. Remove o-rings and back up rings and discard.
Low Speed Rebound Removal
Low Speed Rebound Removed
Low Speed Compression Removed
Low Speed Detent Spring & Balls Removed
Low Speed O-Ring Removal
Low Speed Back Up Ring Removal
Low Speed Detent Spring, Balls & O-Ring Removed
Optional Damper Disassembly
Step 1 – High Speed Valve Seat Removal
To address knocking coming from high speed valve seats.
Using Valve Seat tool (AAD2465), remove the high speed valve seats. Take care to seat the tool properly and use even pressure to avoid damaging seats and tool. Clean valve seats. Valve seats can be disassembled by removing circlip. If valve seat housing, washers or shims are damaged, the entire assembly (BCD0238) can be replaced.
***Do not attempt to remove the low speed needle seats. If damaged, then complete shock must be replaced.***
Valve Seat Tool & Valve Seat
Valve Seat Removal 1
Valve Seat Removal 2
Valve Seat Removal 3
Valve Seat Removal 4
Valve Seat Removal 5
Valve Seat Circlip Removal
Valve Seat Disassembled
Step 2 – Outer Damper Tube Removal
If outer damper tube is damaged or leaking at valve body.
Apply heat to outer damper tube and remove with strap wrench. Remove and discard two o-rings from valve body.
Applying Heat to Outer Damper Tube
Loosening Outer Damper Tube
Unthreading Outer Damper Tube
Outer Damper Tube Removed
Valve Body O-Ring Removal 1
Valve Body O-Ring Removal 2
Shaft Disassembly
Step 1 – Piston Assembly Removal
Clamp shaft in shaft vise. Using 3mm Allen, loosen and remove shaft bolt. Remove piston assembly from shaft and inspect. For 100 hour service, simply clean piston. For 200 hour service or if any piston band wear is present, discard entire piston assembly. Note orientation of the shims. Flip check face on reinstall if showing signs of wear. Inspect shaft for any wear or damage.

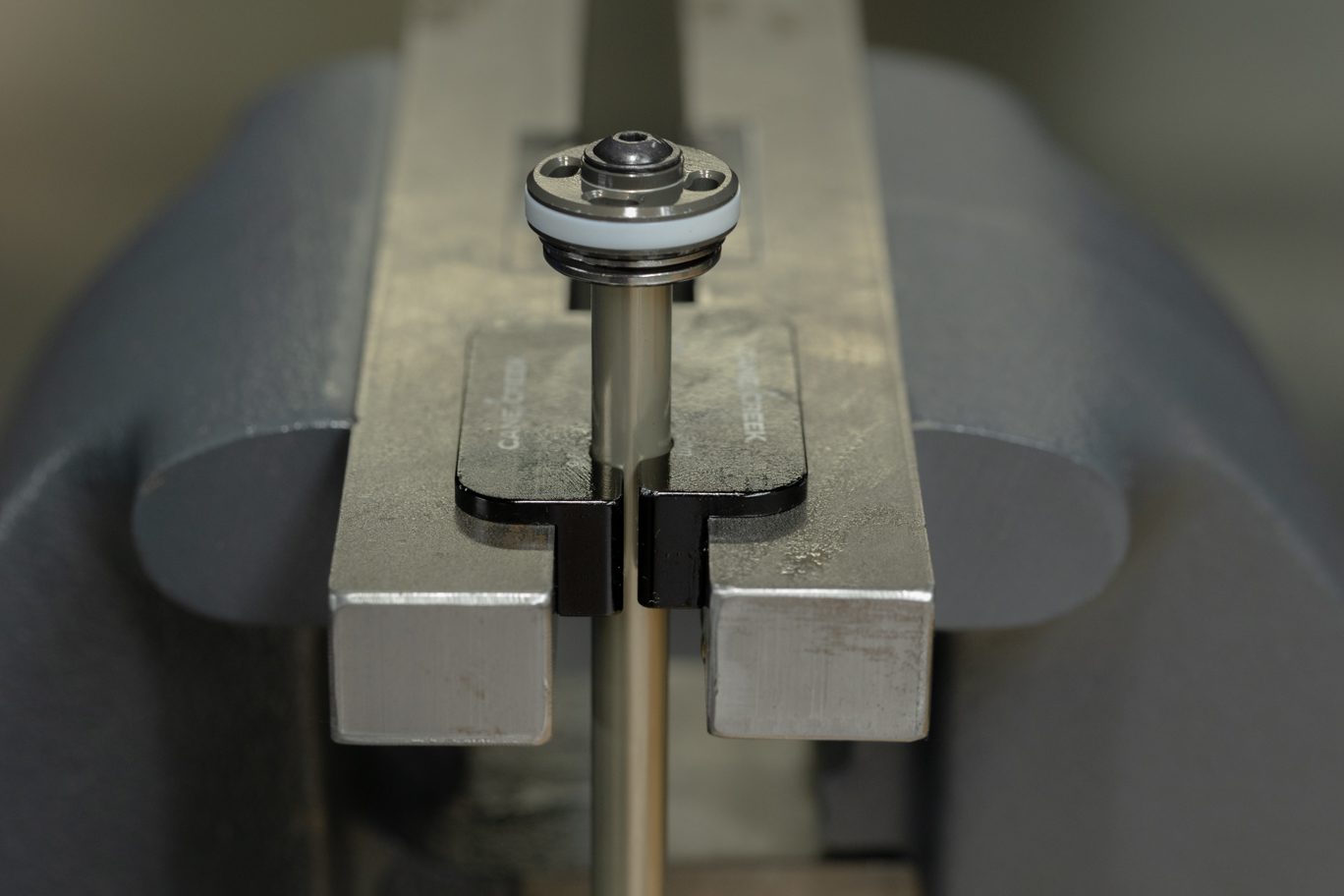

Shaft Clamped for Disassembly

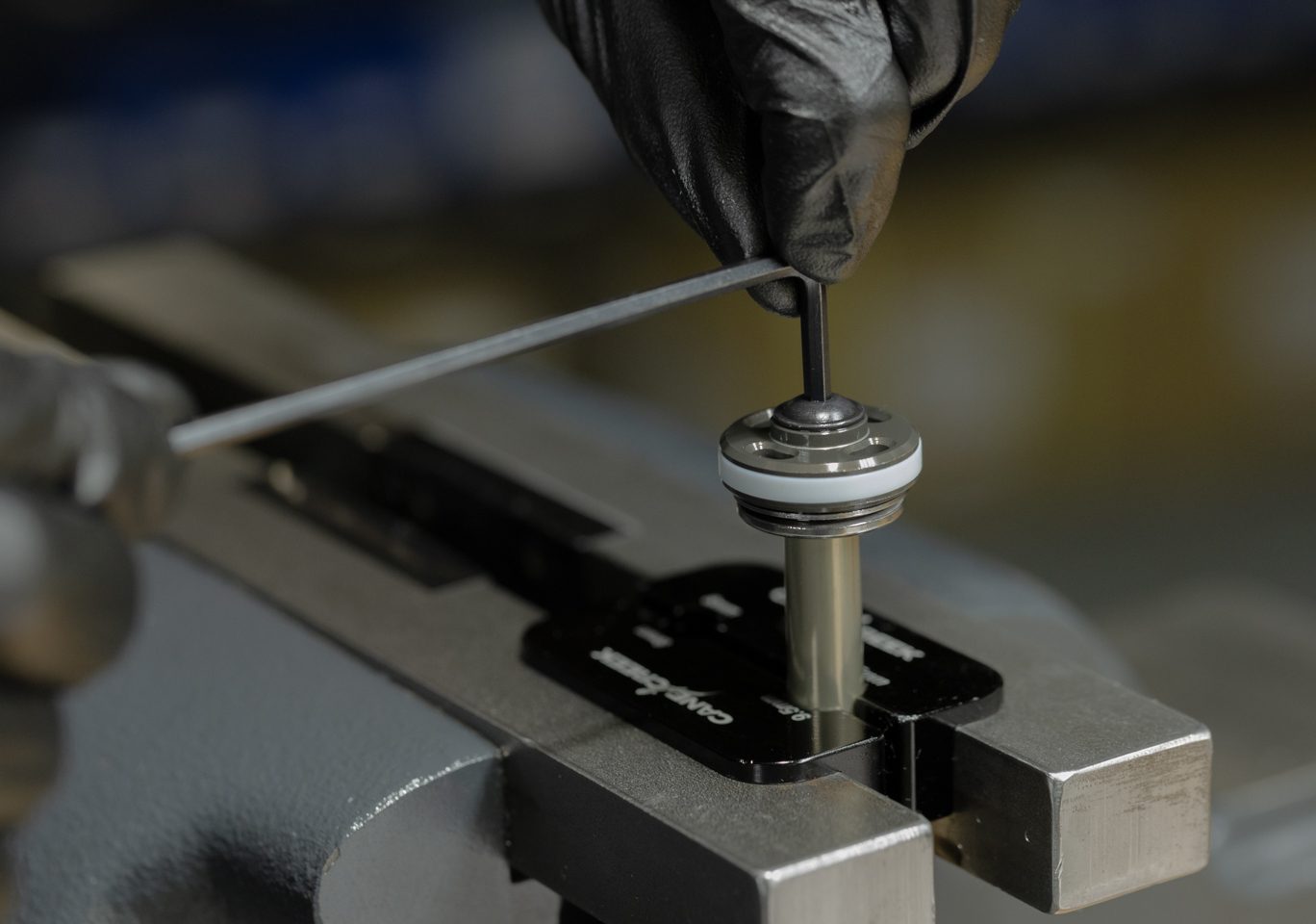

Freeing Shaft Bolt

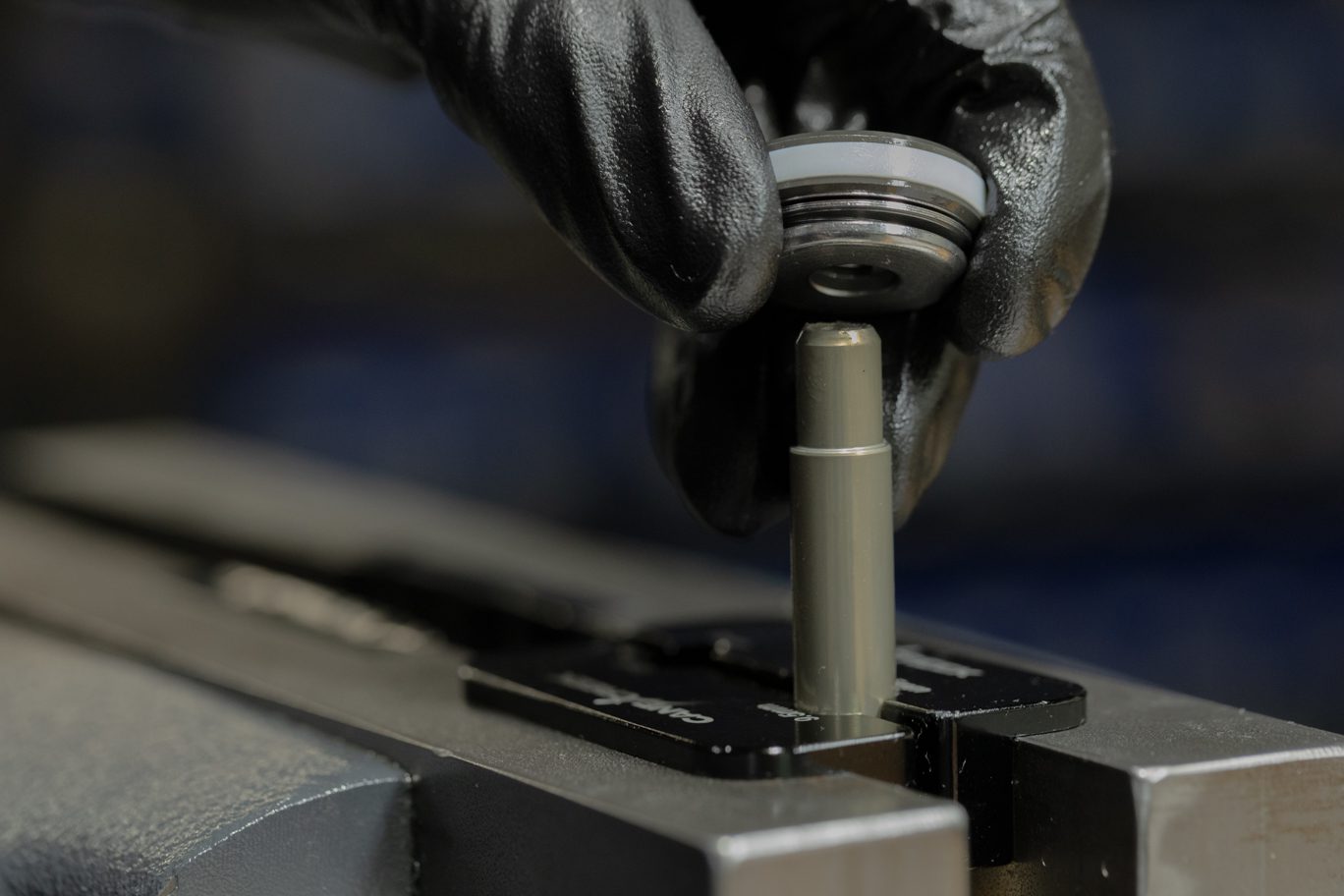

Piston & Shim Stack Removal
Piston and Shim Stack Orientation
Shaft Reassembly
Step 1 – Oil Seal Head Assembly (100 hour only)

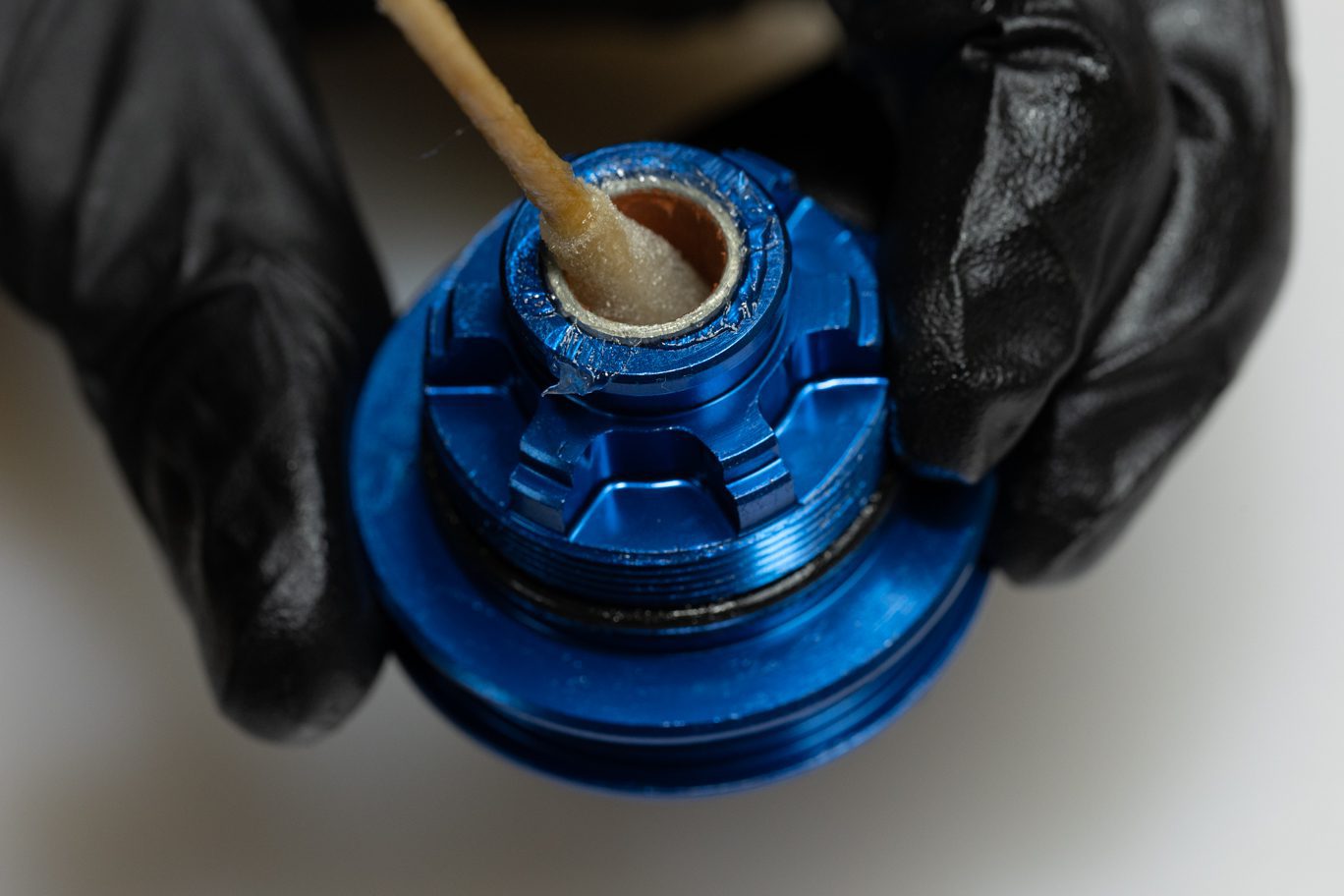

Thoroughly grease quad ring (AAD1806) and install between bushings in oil seal head. Thoroughly grease external o-ring (.DB11108) and install it past the threads on oil seal head.
Step 2 – Oil Seal Head and Piston Install
Clamp shaft in vise. Thoroughly grease bushings and quad ring on serviced (100 hour) or new (200 hour) oil seal head (ACD0120). Using 9.5mm shaft bullet, install oil seal head. Reinstall stop washer, shim stack and piston – either original (100 hour) or new (200 hour – ACD0327). Apply blue Loctite (243) to threads in shaft, taking care to not over fill. Install shaft bolt. Torque to 5 Nm with 3mm Allen.

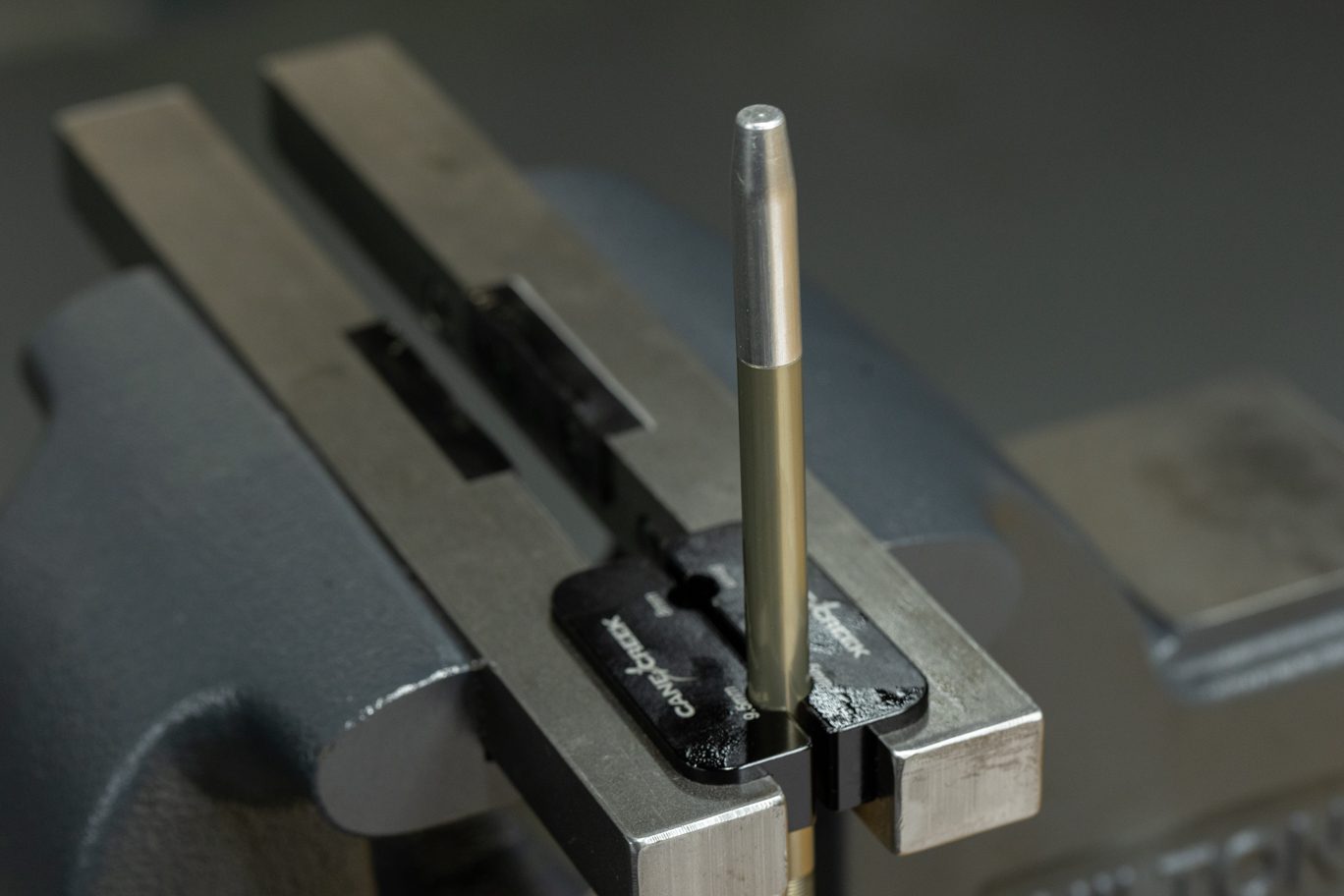

Shaft Clamped, Bullet Placed
Greasing Oil Seal Head

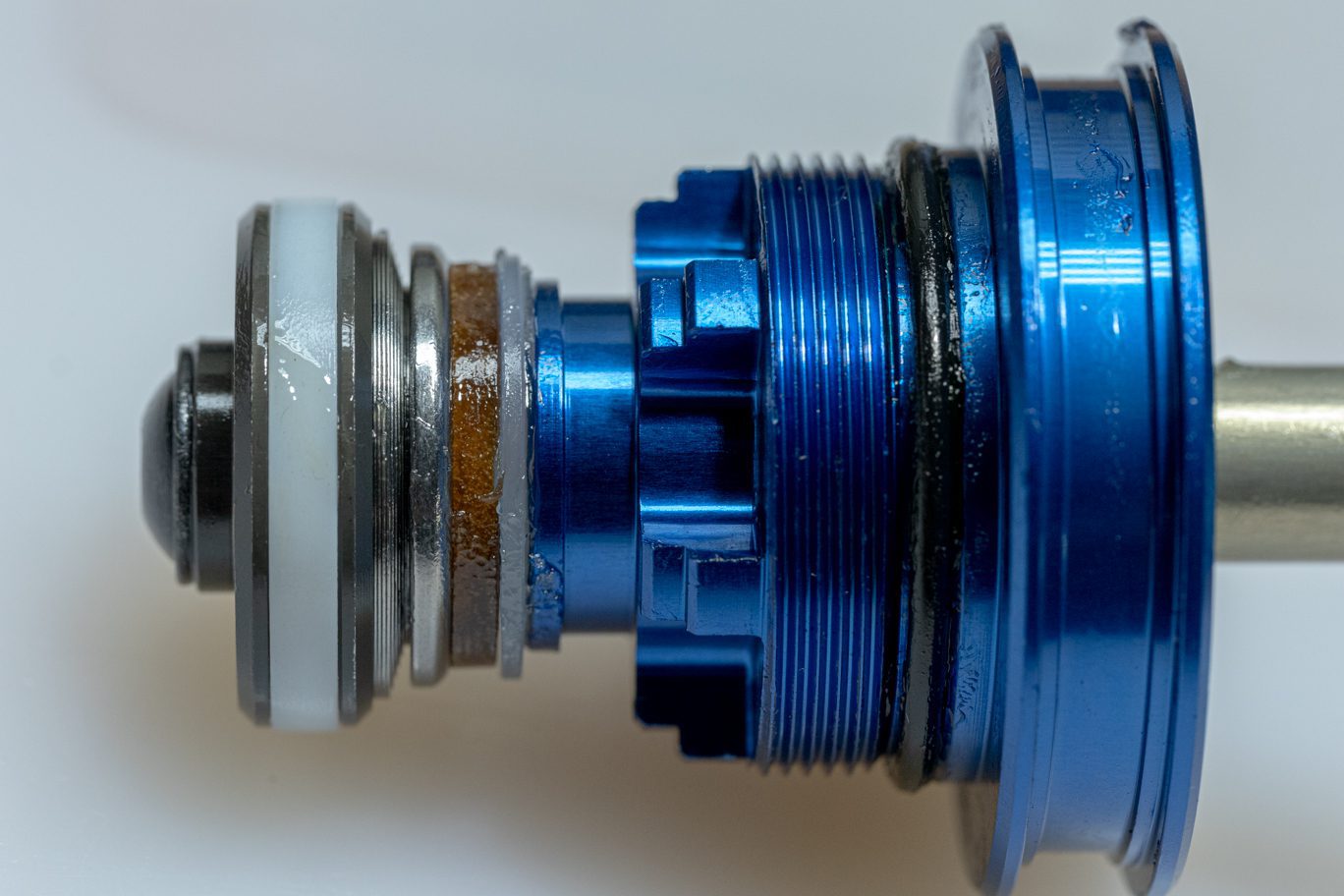

Oil Seal Head Orientation

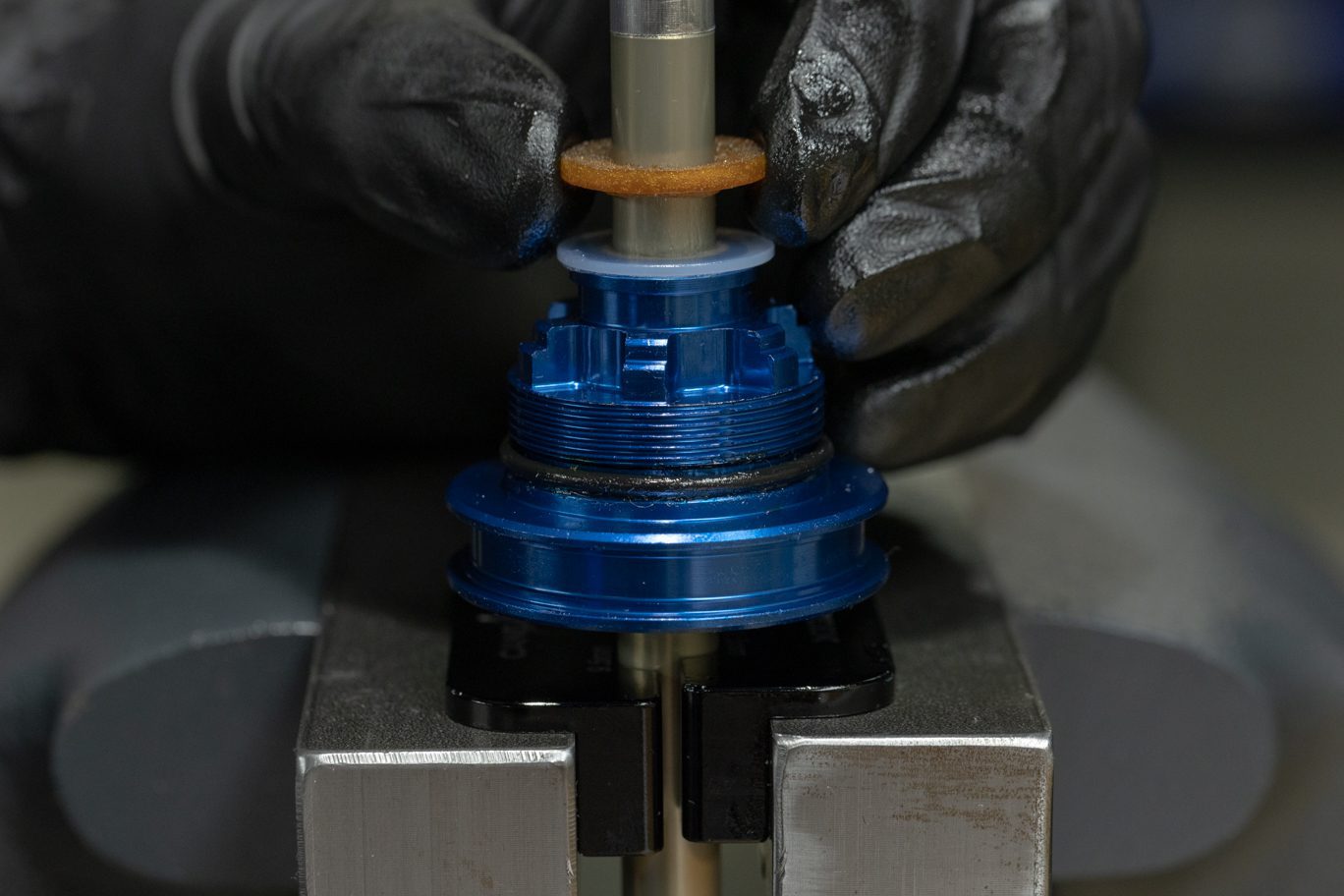

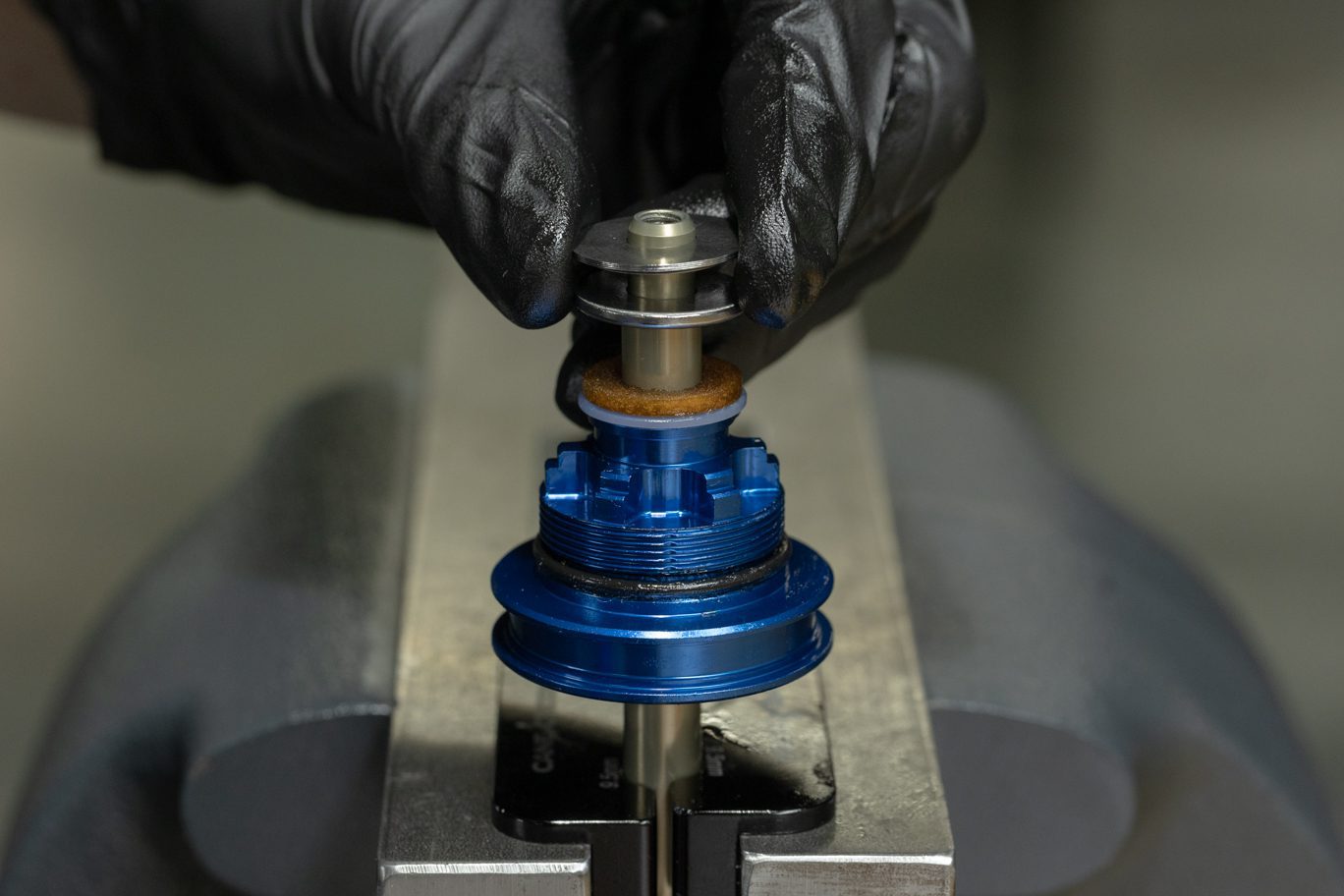

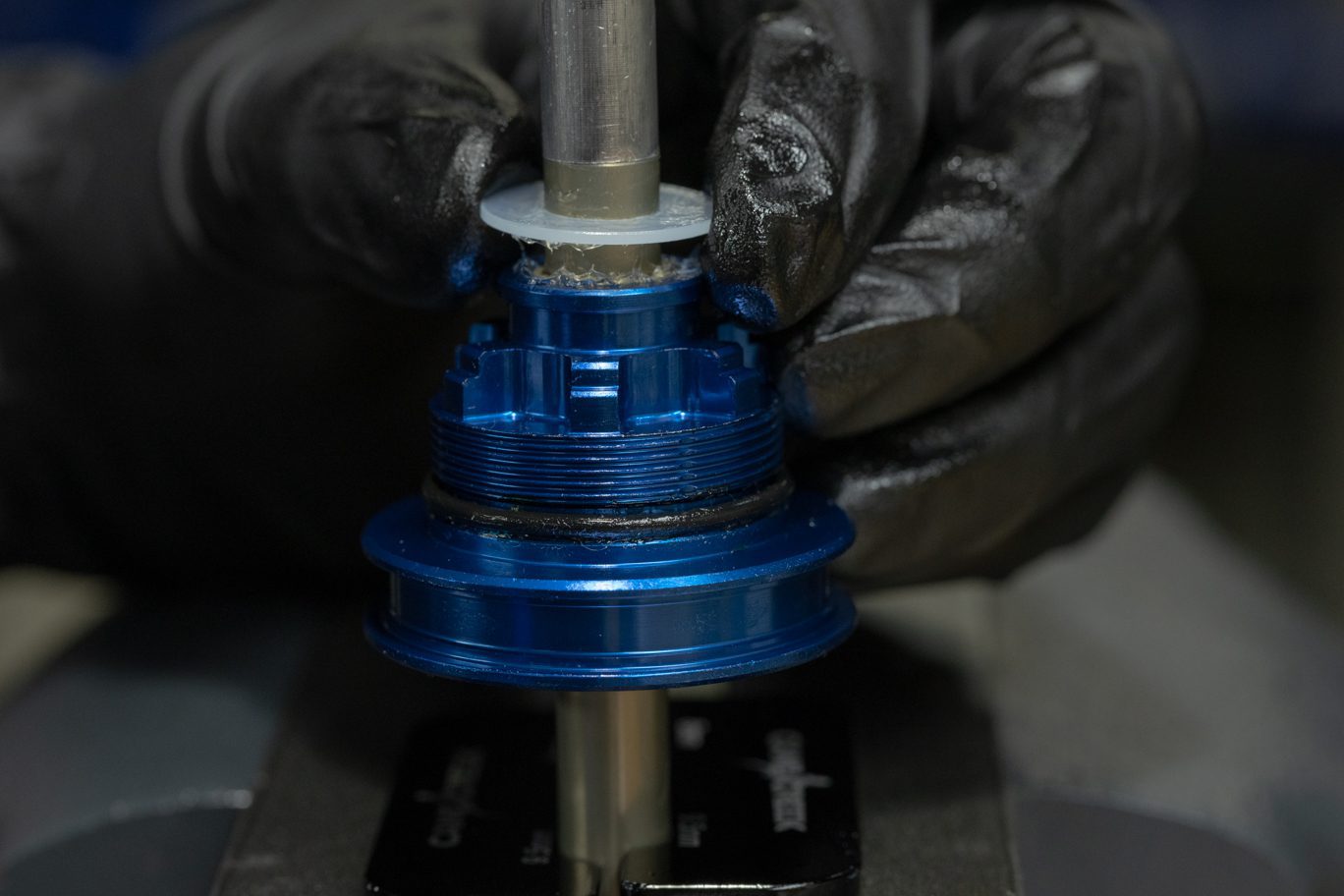

Stop Washer Installation
Top Out Bumper Installation
Shim Installation

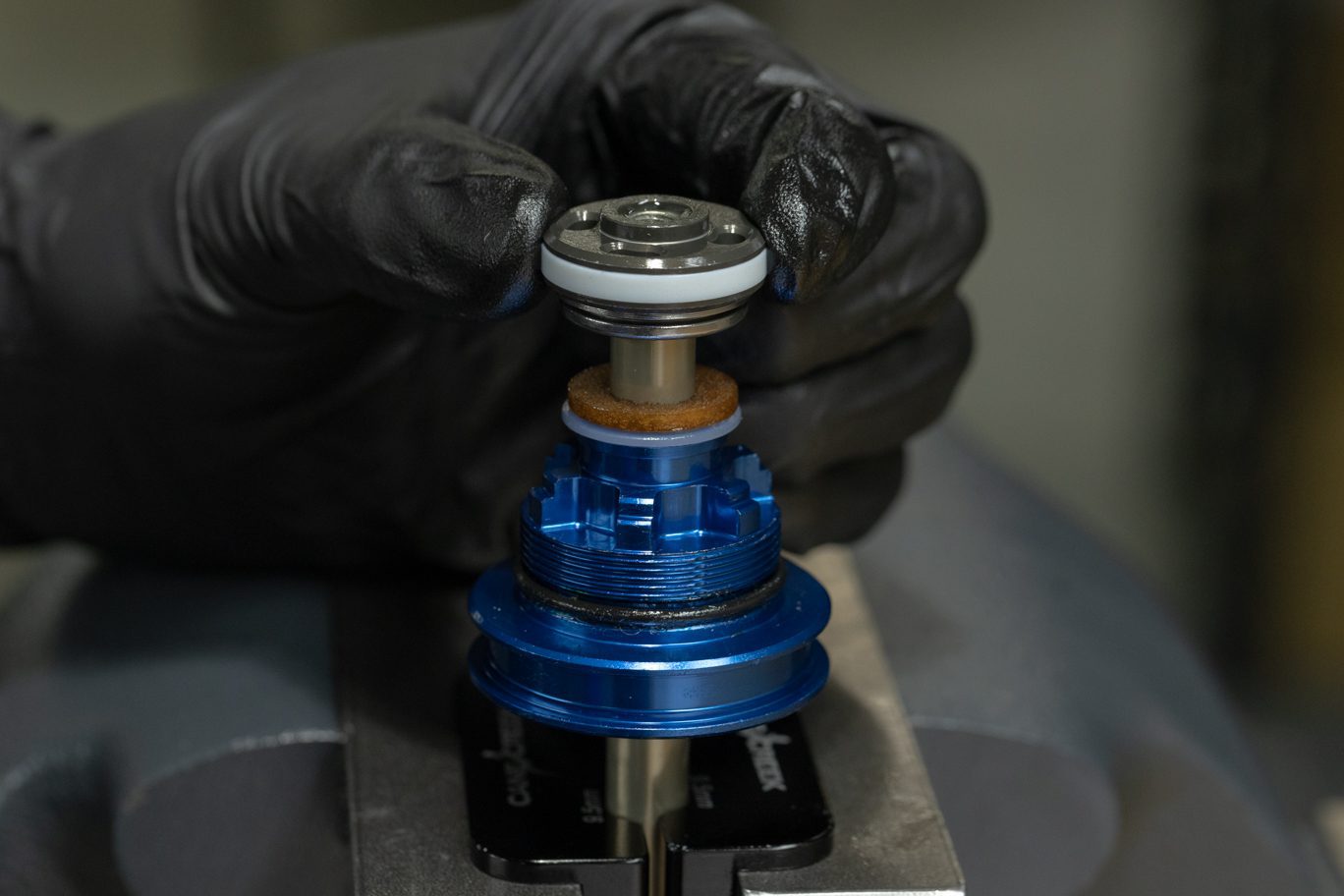

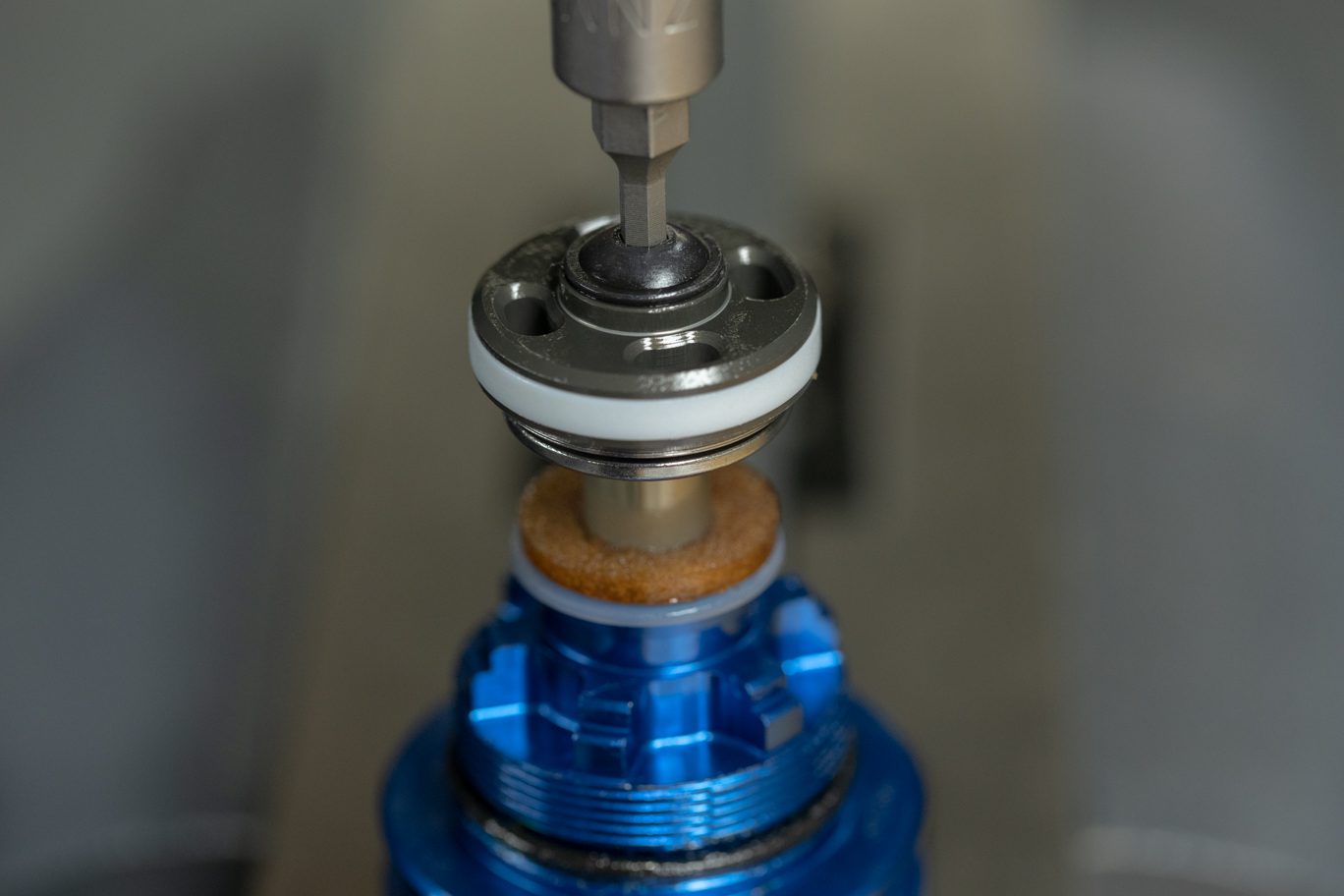

Piston Installation

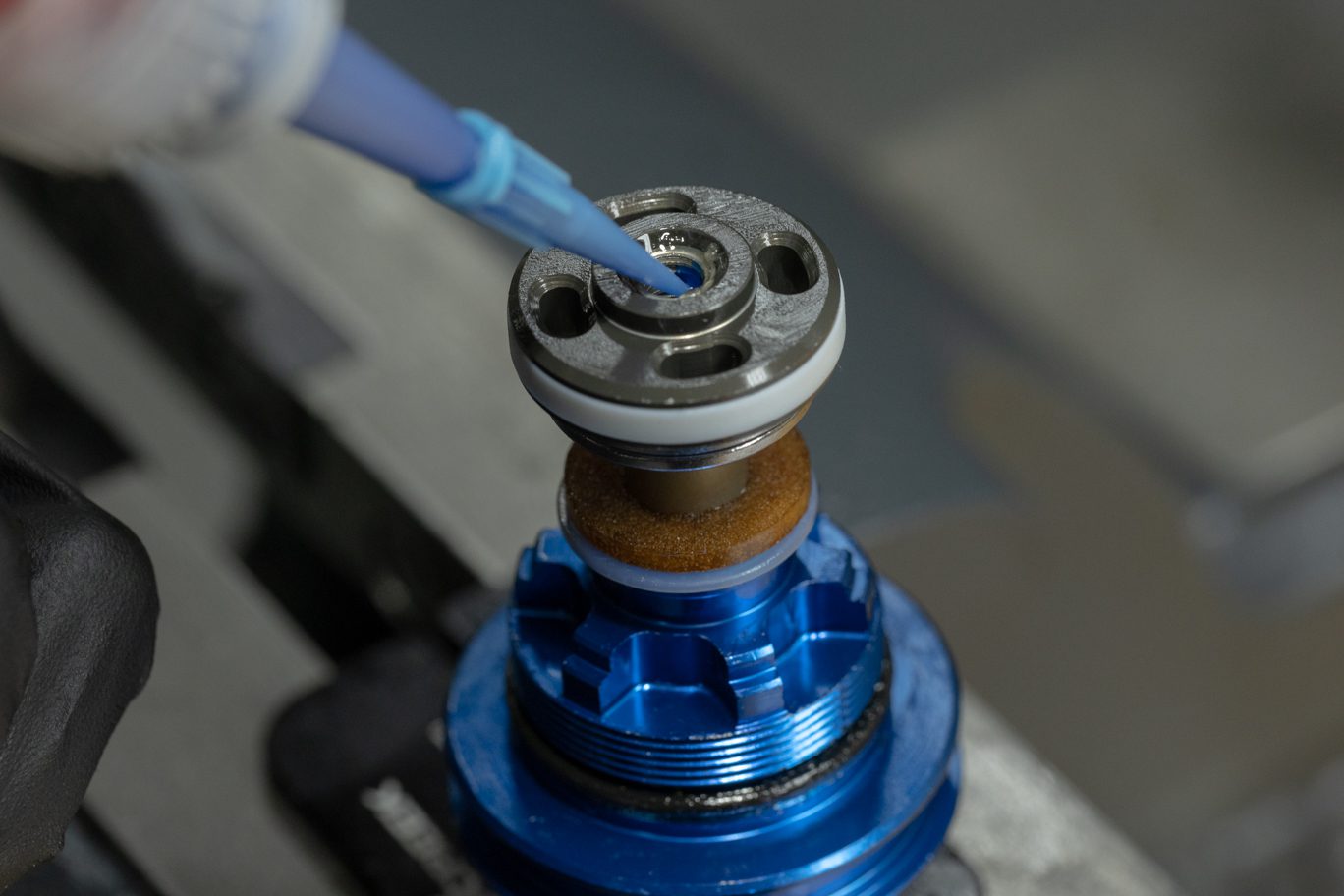

Applying Loctite to Shaft
Shaft Bolt Installation
Complete Shaft Assembly

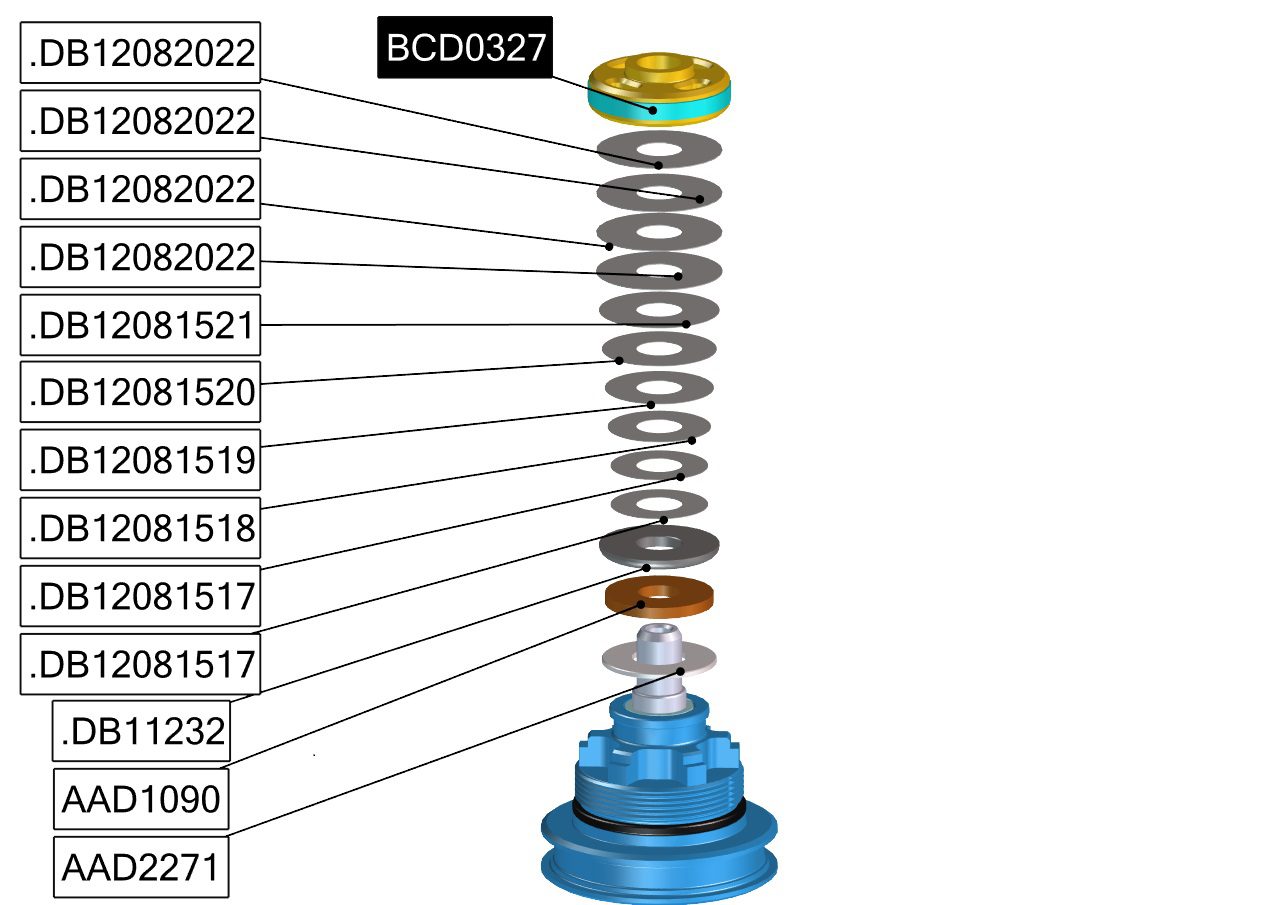

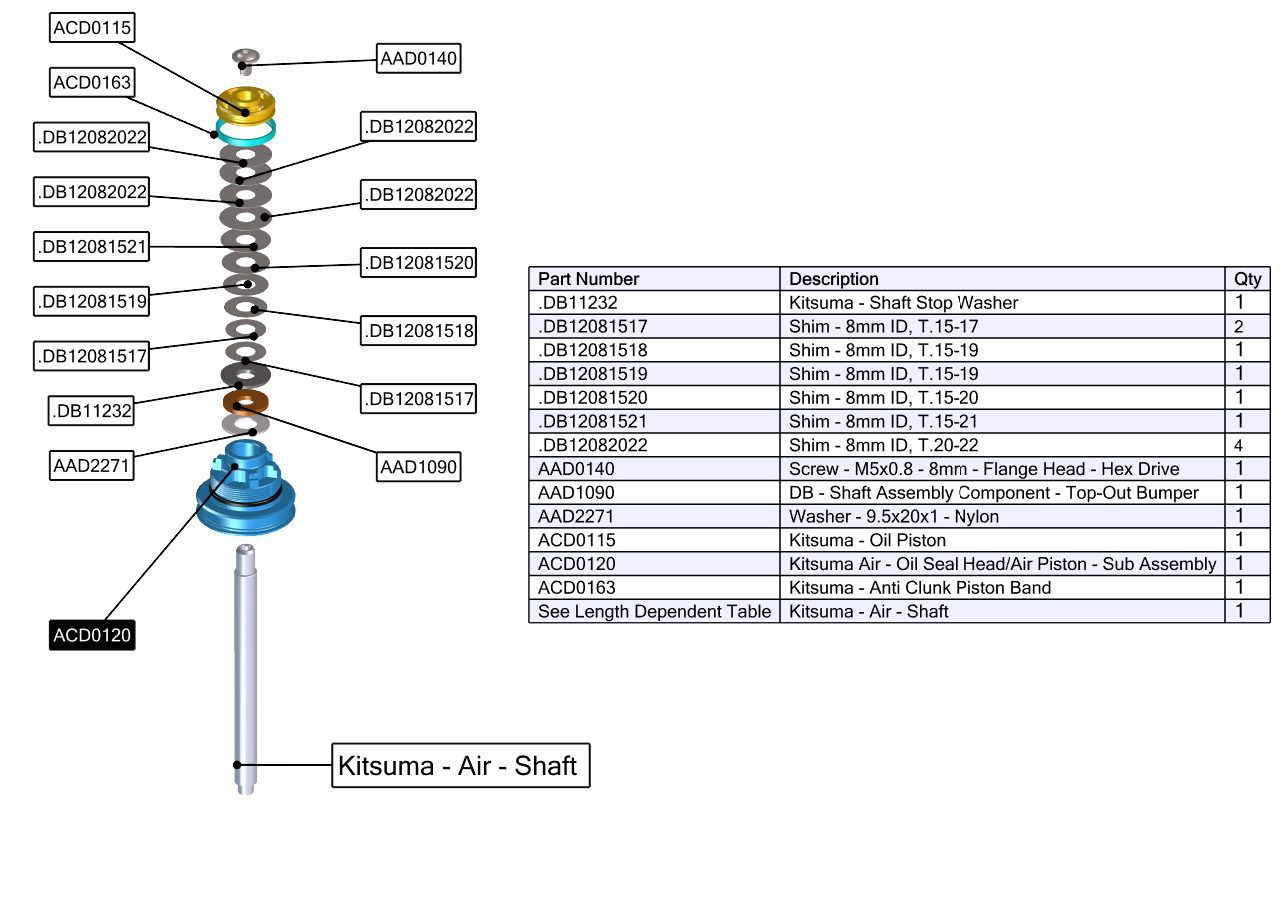

Exploded Shim Stack
Complete Shaft Assembly
Optional Damper Reassembly
Step 1 – Outer Damper Tube Install
Lightly grease and install valve body o-rings (.DB11109 & .DB11110) into valve body. Clamp valve body in vise. Apply 3-5 cms of red Loctite (263) to threads of outer damper tube. Hand thread damper tube into valve body. Thoroughly clean any grease or oil from damper tube. Use strap wrench to tighten damper tube.
Valve Body O-Ring Install 1
Valve Body O-Ring Install 2
Valve Body O-Rings Installed
Loctite on Outer Damper Tube
Threading Outer Damper Tube
Cleaning Outer Damper Tube Prior to Tightening
Tightening Outer Damper Tube
Step 2 – Valve Seat Install
Reassemble valve seat with shim, wave washer and shim. Note the orientation of the wave washer. Using valve seat tool, reinstall valve seats into valve body. Torque to 4.8 Nm.
Valve Seat First Shim Install
Valve Seat Wave Washer Install
Valve Seat Second Shim Install
Valve Seat Circlip Install
Valve Seat Assembled
Exploded HS Valve Seat
Valve Seat and Valve Seat Tool
HSC Valve Seat Install 1
HSC Valve Seat Install 2
HSR Valve Seat Install
