Invert - 30th Anniversary
Invert is the World’s First Gravel Fork.
Invert smoothes your ride and gives unbelievable control of your bike on rough roads, loose turns, and steep descents. It's surprisingly lightweight, easy to use, and strikingly attractive. Until this point, no fork made for drop bars has been able to combine the smooth ride, lightweight, simplicity, and good looks into one complete package.
Riding beyond the pavement can be rough, physically taxing, and unpredictable. Invert goes straight to the source of this problem to offer a smoother ride with more traction, both uphill and down. With Invert, you’ll be more efficient, more relaxed, and have confidence to glide over gravel like you’ve never experienced before.
Invert CS (Climb Switch, 40mm, 1113g): $1,199.99
*Orders containing suspension are made to order and ship in 5-10 days.
Are you in the Western North Carolina area and want to test Invert before you buy it? Request a test ride here.
Technical Documents
More Details
Invert CS comes with 40mm of fork travel and a Climb Switch button that when clicked, dramatically reduces the amount of fork movement for pedaling out of the saddle. The Climb Switch button is inspired by the simple click of a pen, and is as satisfying to click as the feature is to use.
Marketing Assets
Details
Product Spec
1113g
40mm
Carbon fiber crown & steerer bonded to aluminum upper tubes
One piece, forged and machined 30mm stanchions with integrated hidden brake caliper bolts and hidden thru axle
700c x 50mm
160mm flat mount disc
180mm compatible with adapter BBG0800
12mm x 100 Thru Axle (axle included)
435mm / 45mm

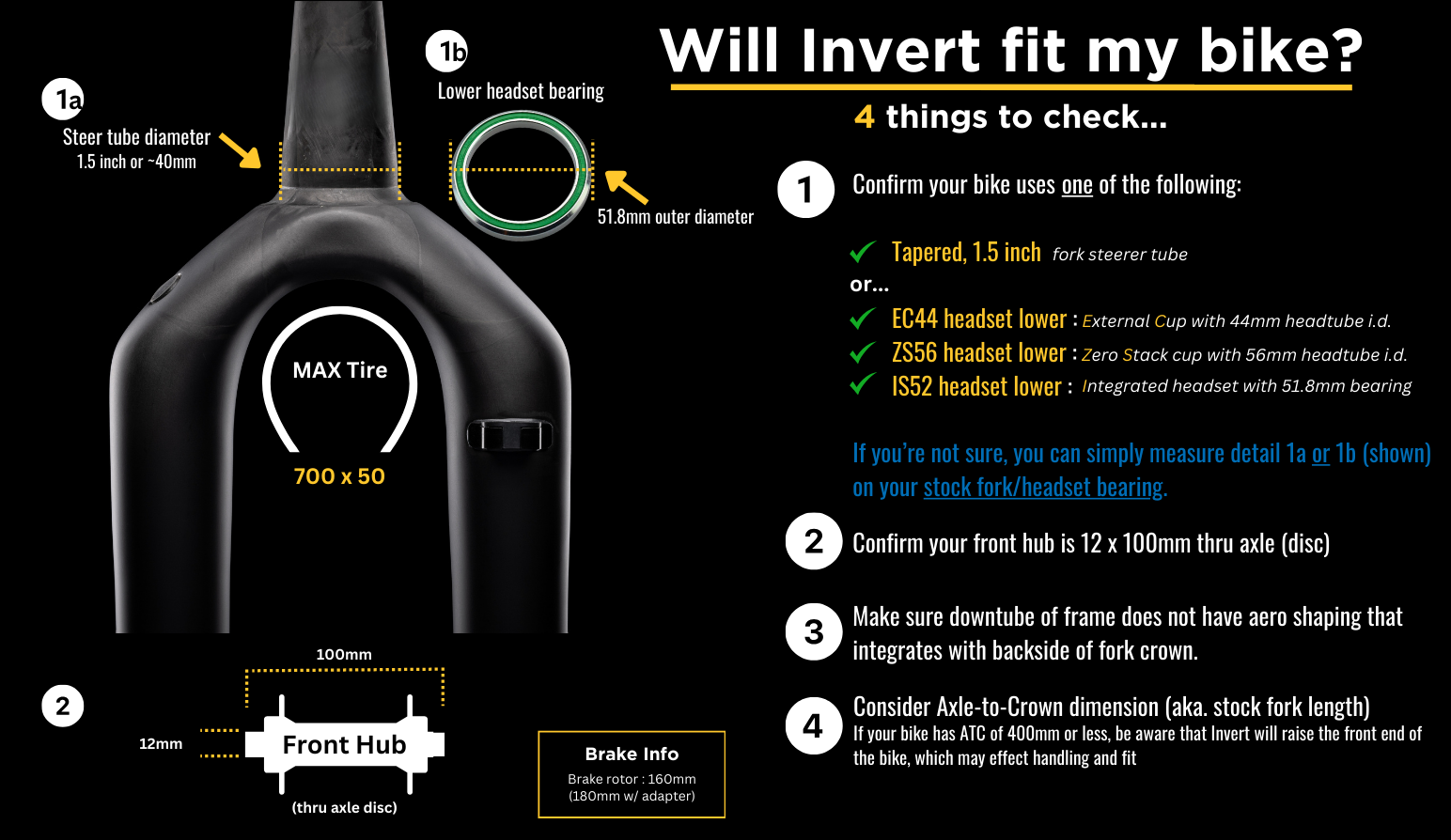

1 1/8” to 1.5” Tapered (28.6mm to 40mm)
Integrated, 36 degree angle

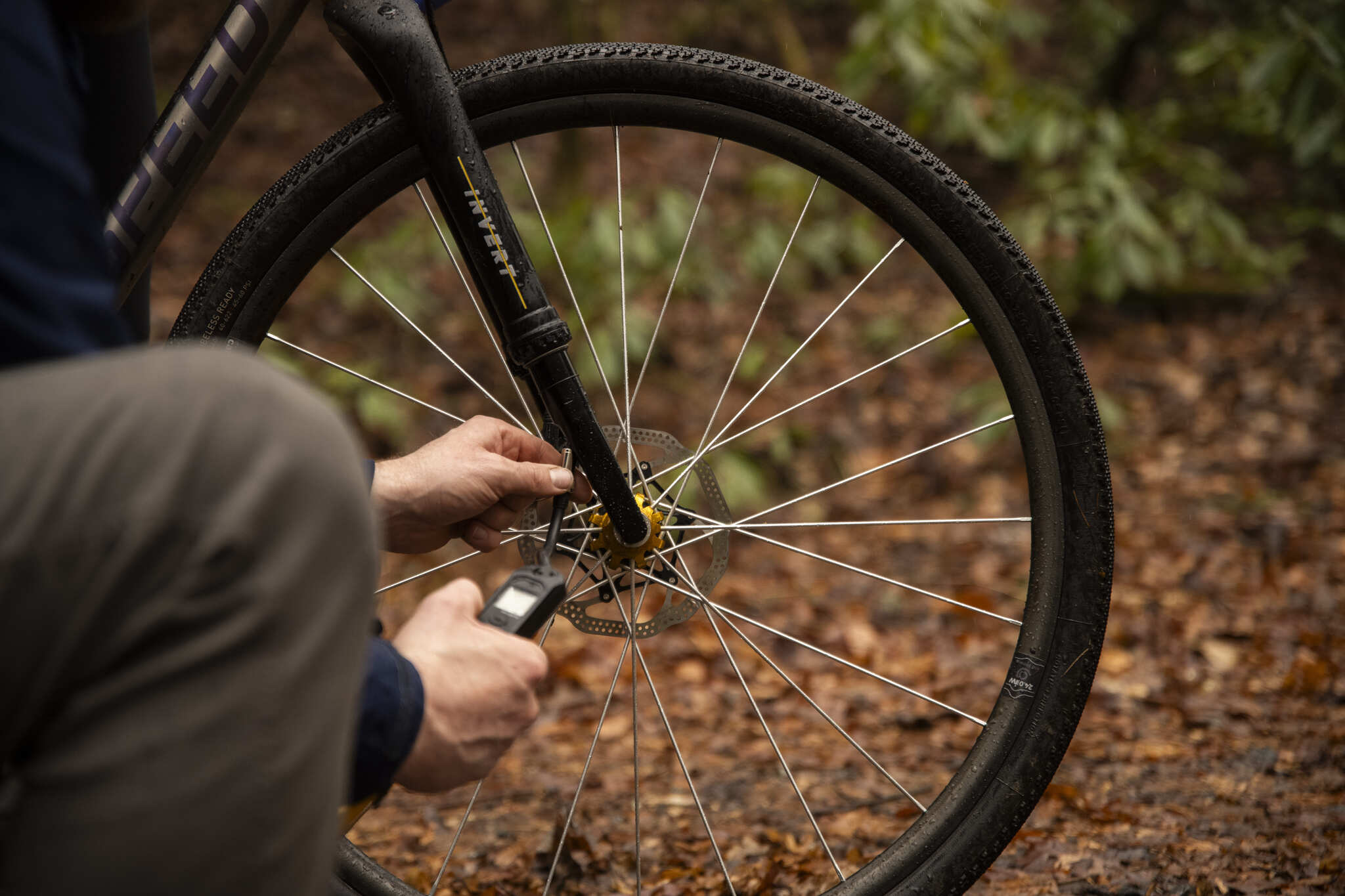

Air Spring adjusts for rider weight, Climb Switch on Invert CS engages firm mode out of saddle pedaling. Single-click activation dramatically reduces fork movement.
2 Years
50 Hours: Splash oil flush – no special tools, no major disassembly
100 Hours: Full service
250 lbs / 250 psi
Invert CS – 40mm Travel: BBG0005
Ancora Premium Expansion Plug
52mm ZN40 headset bearing
Brake caliper mounting bolts
