Helm MKII Chameleon
Helm MKII Chameleon

Helm MKII Chameleon

SKU: BAG0685-CHAMELEON
Sale price$765.00 USD
Sold out

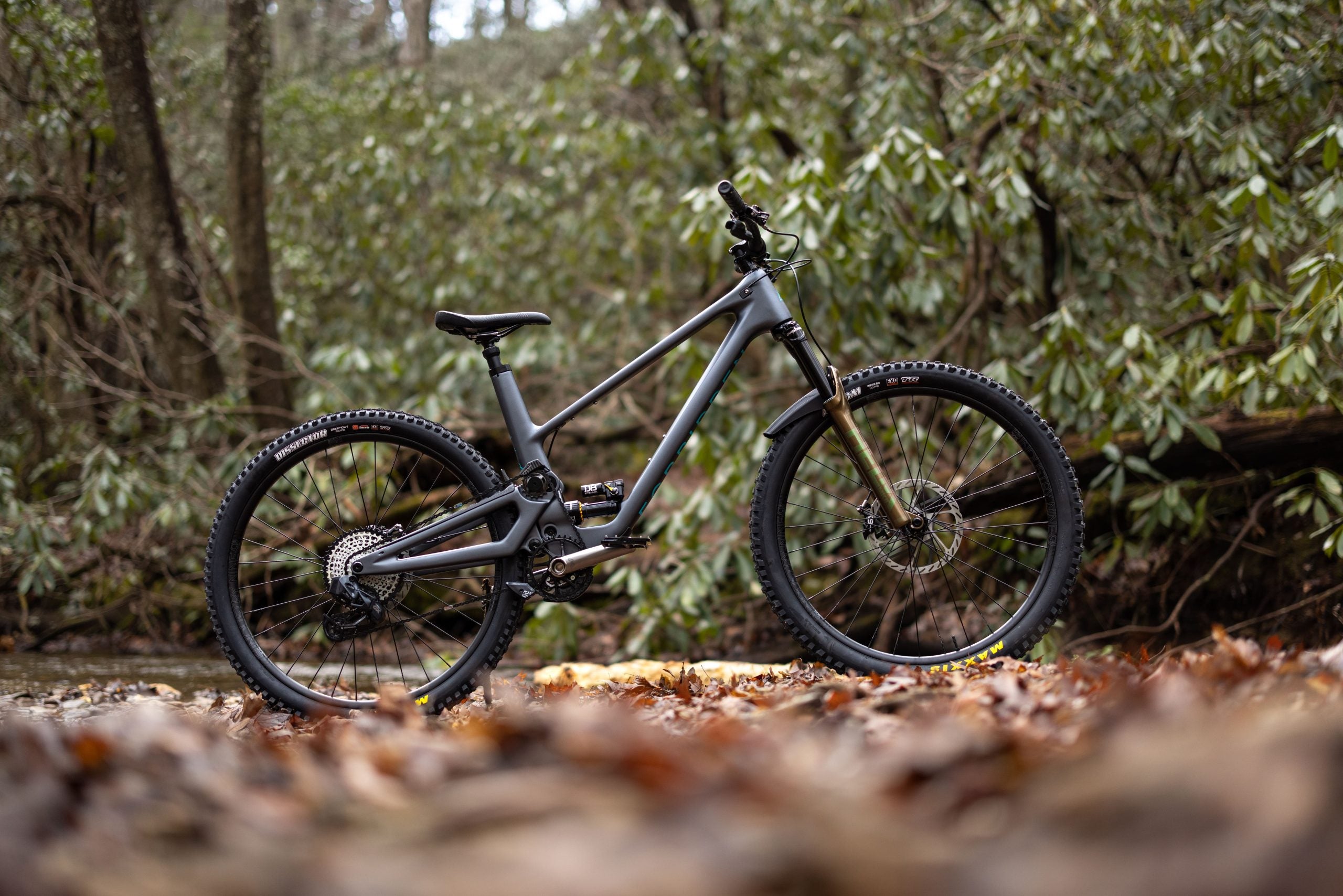

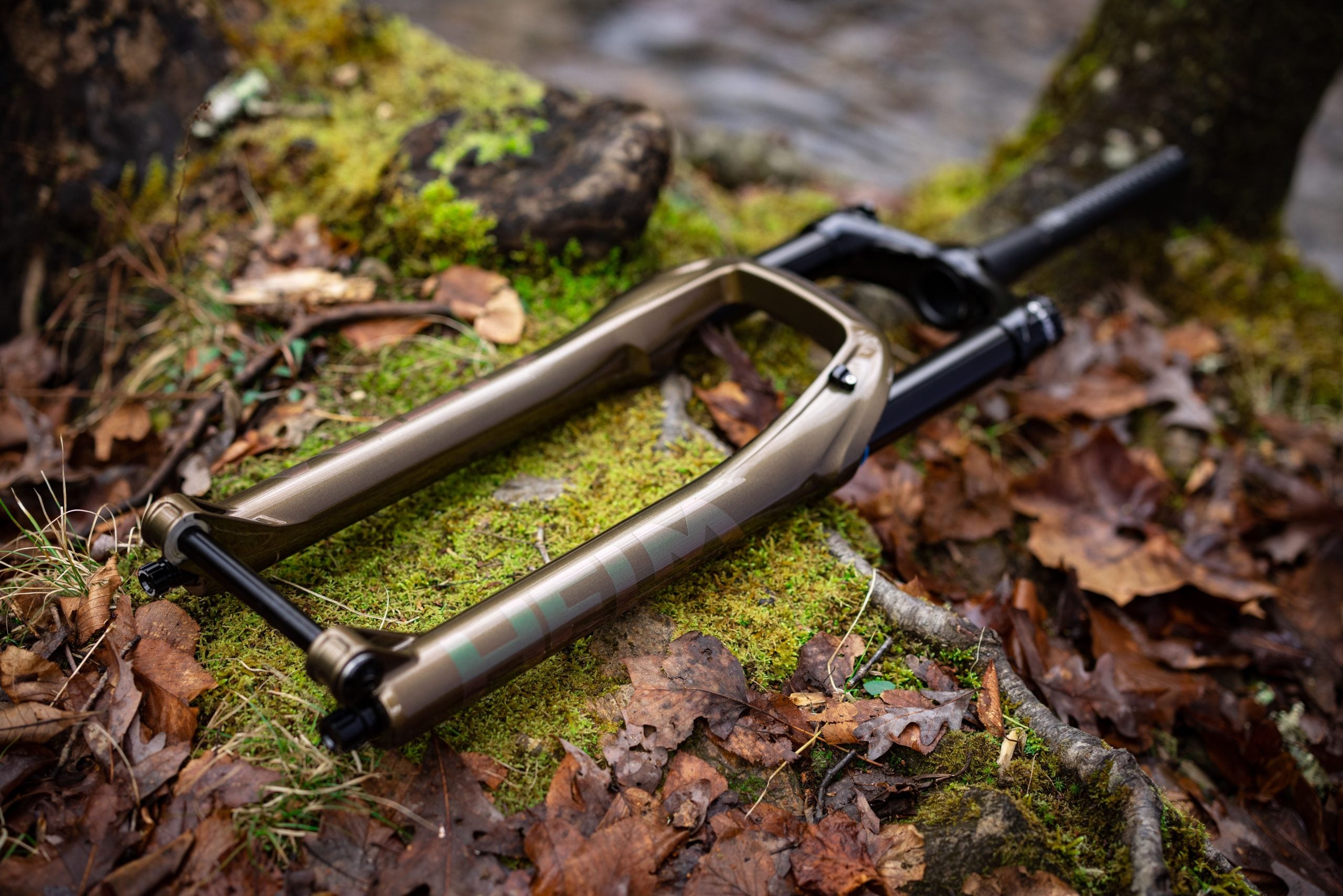

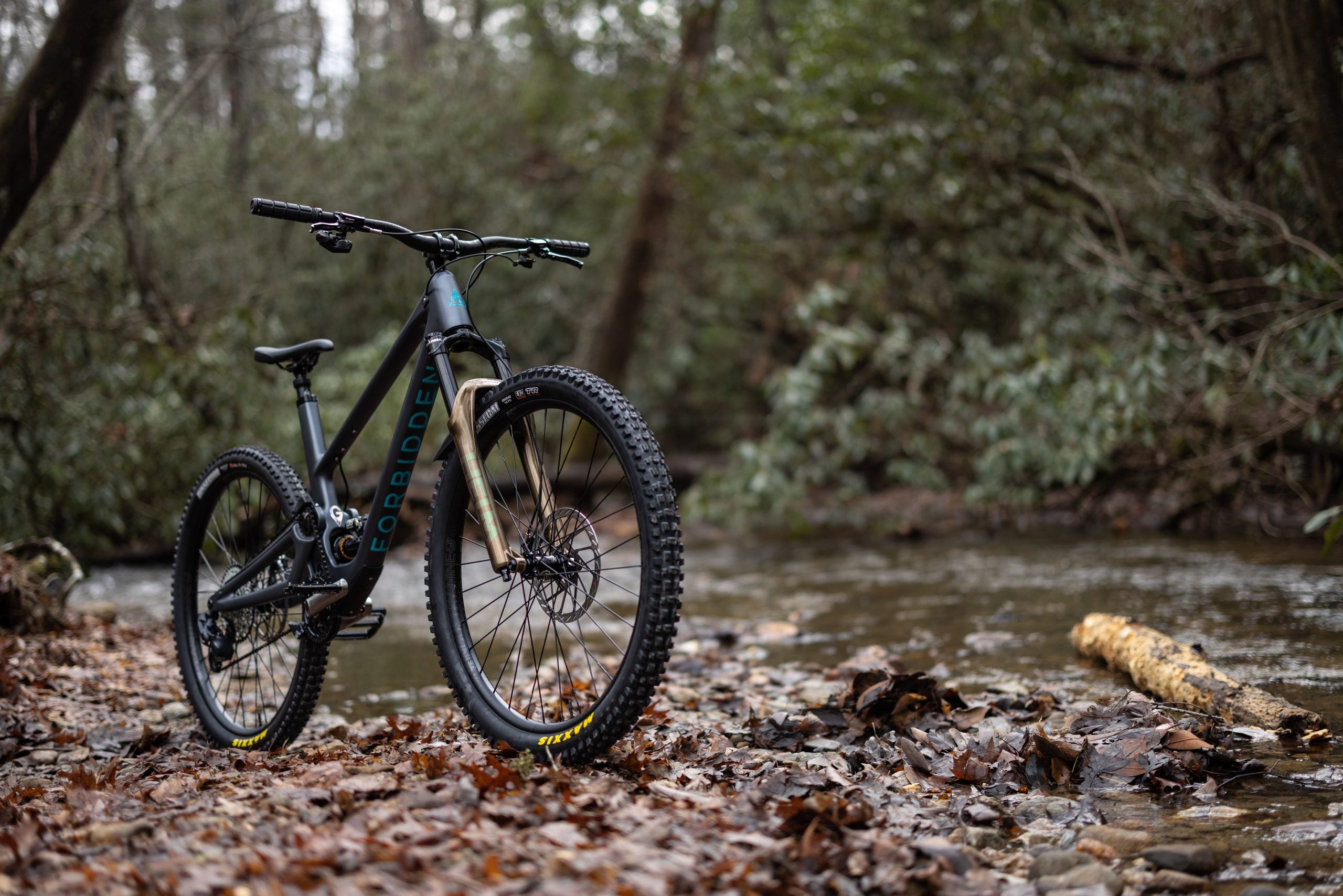

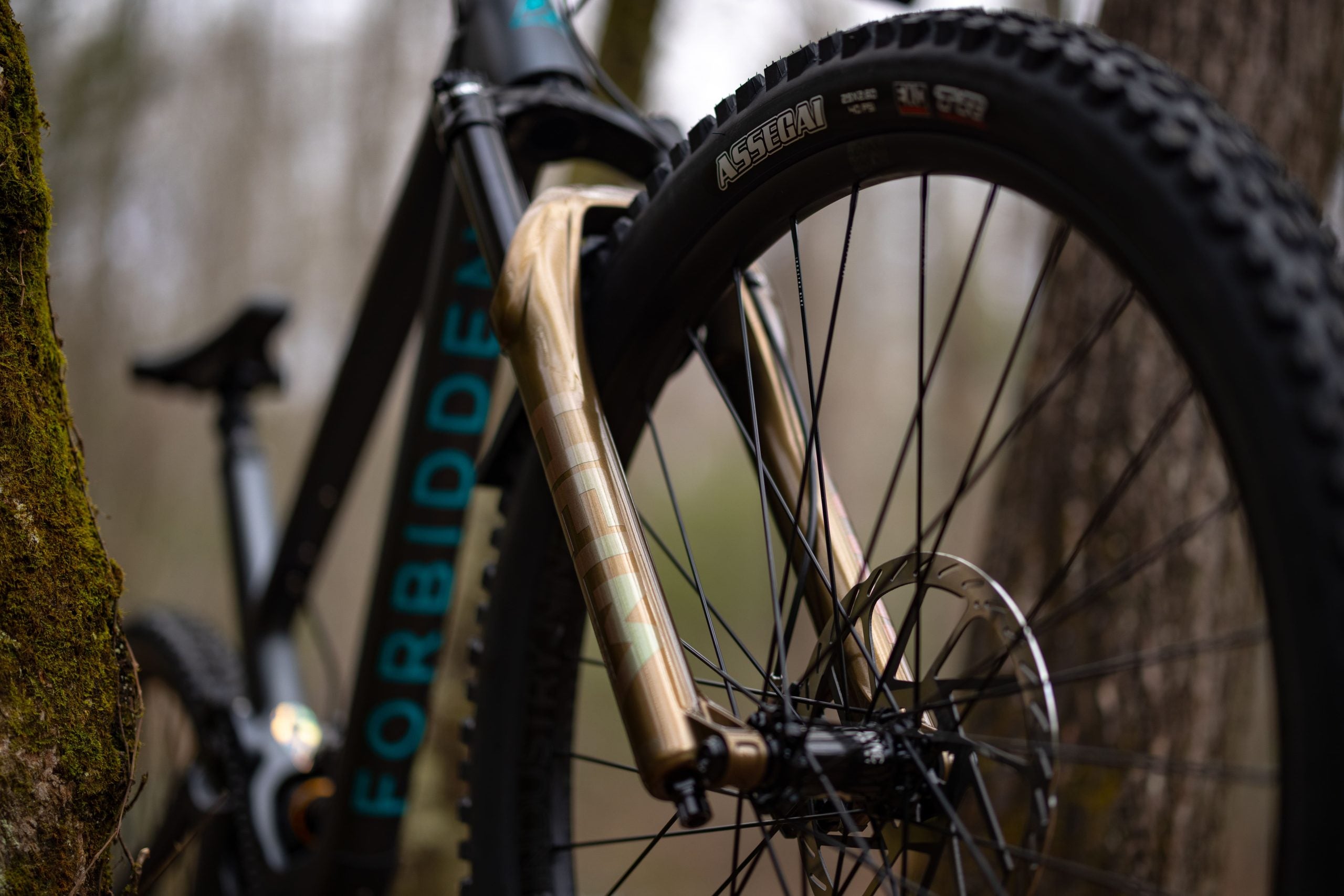

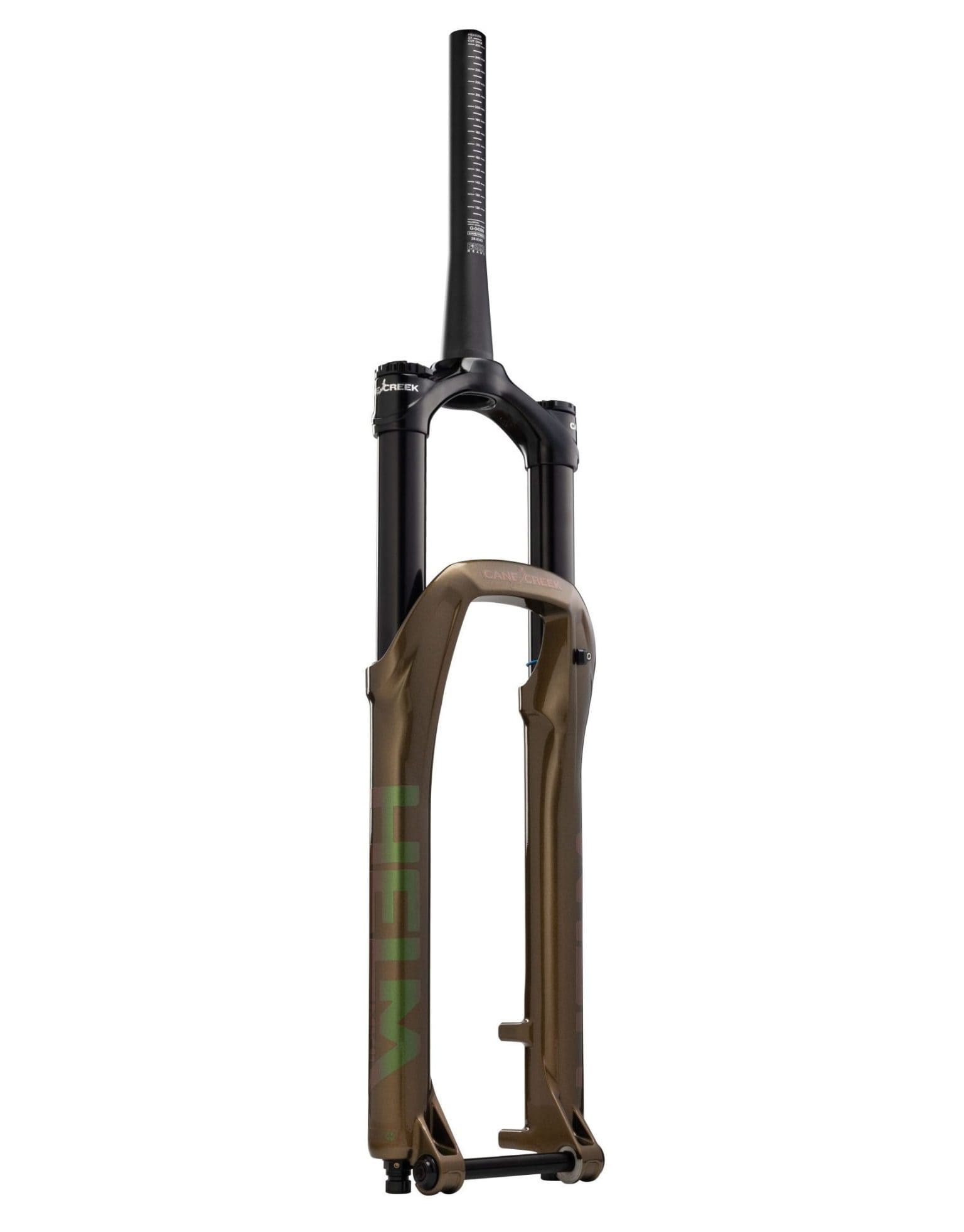

The Limited Edition Chameleon Helm MKII is available in our 29-inch wheel | 44mm offset platform with Cane Creek’s travel adjustable air spring pre-set at 160mm travel or Helm Coil with travel pre-set at 160mm. Looking to blend into the forest?  This unique earth-toned fork with color-shifting decals is the perfect addition to any custom bike build. Helm Chameleon includes Cane Creek’s bolt-on fender.

Technical Documents

Show details Collapse

More Details

Show details Collapse

Fully Revised Damper Tune

  • New compression and midvalve circuit for increased support and control
  • New SKF low friction oil seal head cartridge
  • High performance damper oil from Motorex

New SKF low friction wiper seals installed in the castings.

Redesigned Air Spring

  • Increased air volume for better traction and suppleness
  • New air piston for reduced friction
  • New threadless air seal head for easier travel change

Coil Spring Recommendations

  • 35lb spring – AAG0421 RED – (90-120lbs rider)*
  • 45lb spring – AAG0422 BLACK – (120-160lbs rider)*
  • 55lb spring – AAG0424 GREEN – (160-200lbs rider) ** Stock Spring in Helm Coil
  • 65lb spring – AAG0426 BLUE –  (200-240lbs rider)*

*Optional Coil Springs can be purchased separately

Marketing Assets

Show details Collapse

Link: Helm Chameleon Marketing Assets


Details

PRODUCT SPEC

Weight

2080 grams

Damping

High Speed Compression, Low Speed Compression, Low Speed Rebound

Adjustments

High speed compression (10 positions)
Low speed compression (17 positions)
Low speed rebound (10 positions)
Independent positive air spring
Independent negative air spring
Indexed travel adjust system (8 positions)

Spring

Double-Air spring system. High volume positive and negative air springs

Stanchion Diameter

35mm

Minimum Brake Rotor Size

180mm. *If you are using a Hope Tech brake on a Helm fork, you will need to use a 200mm rotor with appropriate adapter.

Travel

Optimized for 130-160mm of travel

Travel Adjustments

Internal, 10mm Increments (160mm down to 130mm)

2 Travel spacers included

Axel / Spacing / Offset

"D-Loc" 15mm Bolt-on thru axle / 15mm x 110 BOOST spacing / 51mm and 44mm

Max Tire Size

64mm wide by 749mm tall (29) / 75mm wide by 739mm tall (27.5+)
