Helm MKII 29 Galaxy

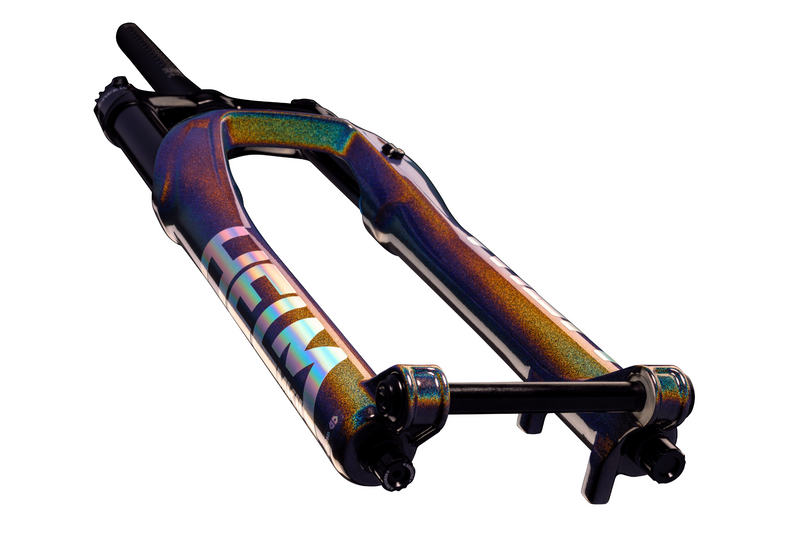

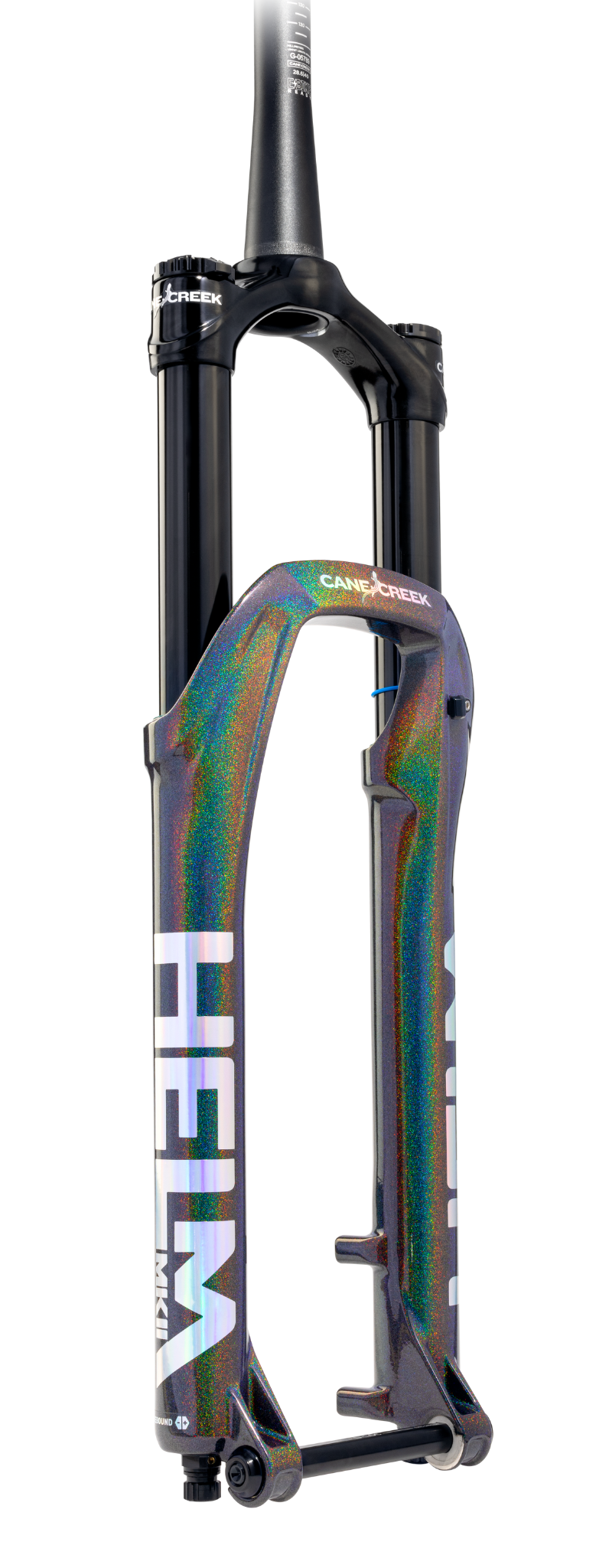

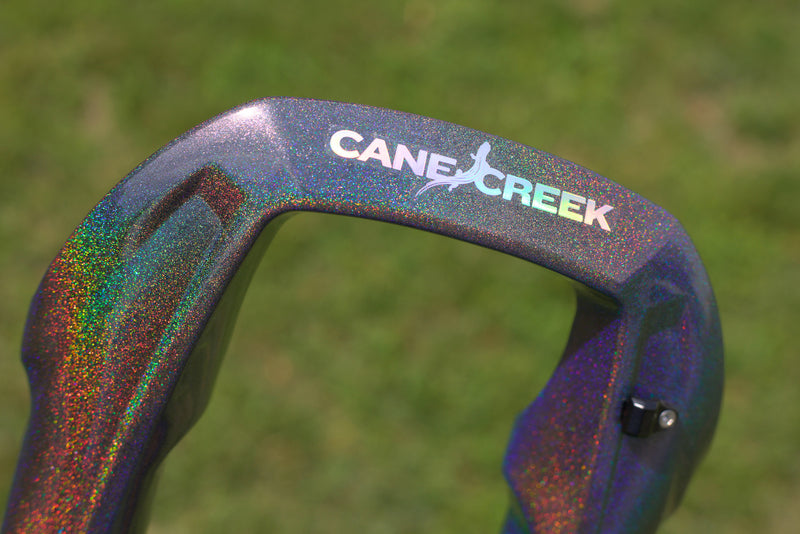

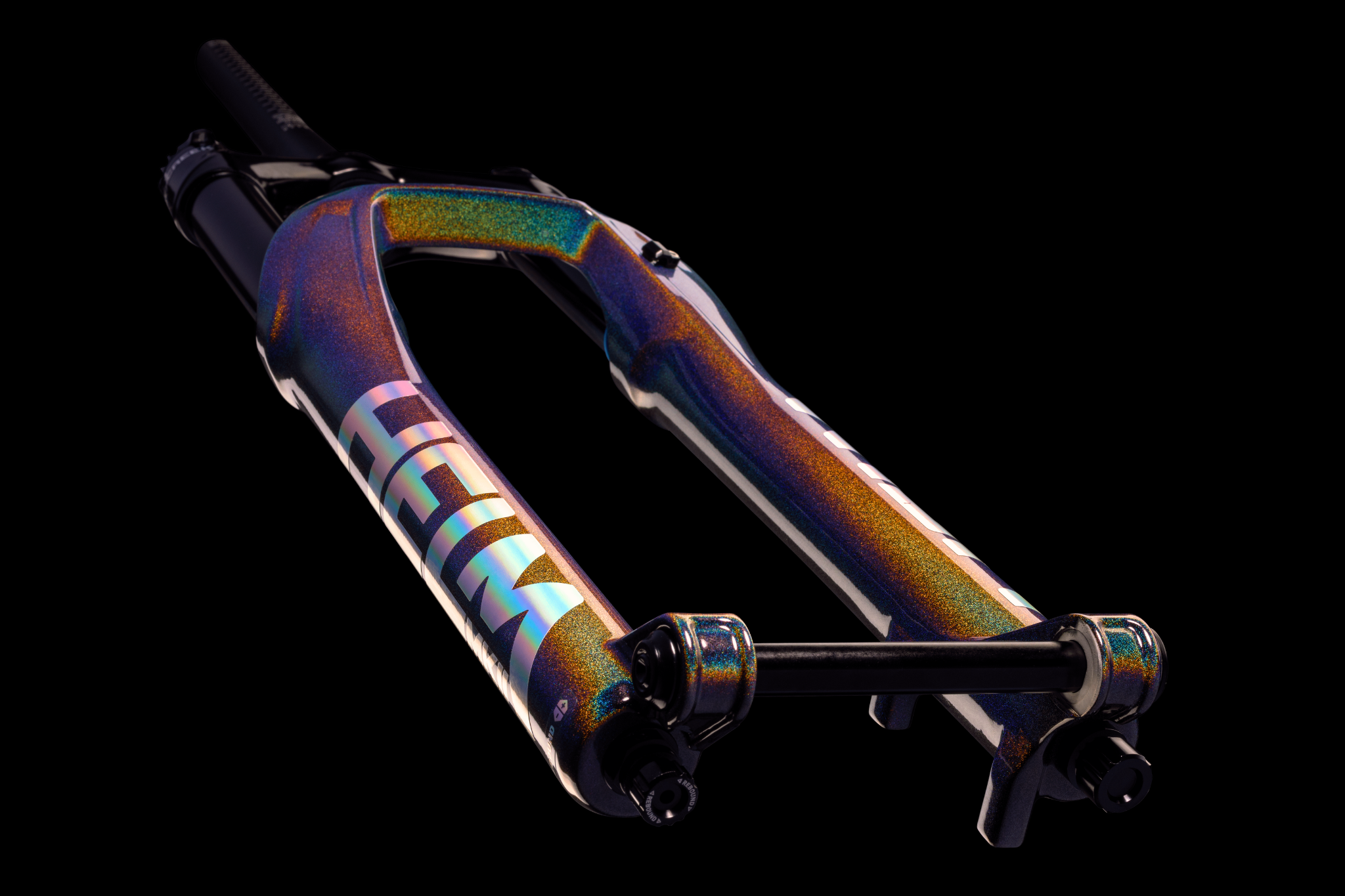

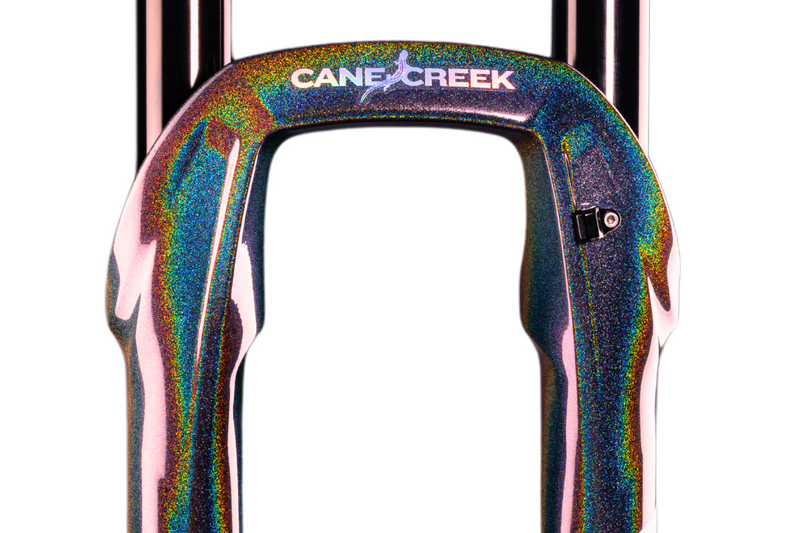

Inspired by the cosmos, the Galaxy lowers are painted with a holographic ultraviolet glitter that gives it a brilliant color changing effect.
Helm MKII is our highly adaptable trail and enduro mountain bike fork. It’s easily travel adjusted with simple tools at the workbench and has a unique air volume adjustment system that allows you to dial in your perfect amount of middle and end-stroke support. The damper and seals on Helm MKII have been revised to be smoother and more sensitive than before. Helm MKII is burly enough for bold moves, sensitive enough for incredible traction and control, and fits just about any bike you can dream of putting it on.
Sold in 29 inch wheel, Air or Coil spring, with 160mm travel. All Helm MKII forks are easily travel adjusted at home for use on various bikes.
Technical Documents
More Details
The independent positive and negative air chambers – along with the self contained indexed volume adjustment system allow all Helm air forks to be set up for any rider and any style.
The Helm MKII air spring has a redesigned air piston which increases air volumes and reduces friction, greatly improving traction and suppleness on trail. The threadless seal head and manual negative air charge button designs allow for easy travel setting adjustments and the ability to properly set up riders of all different sizes and abilities.
- Indexed Air Volume Adjustment (No tokens)
- 30psi Minimum Operating Pressure
- Tunable Negative Air Spring
- Internally Travel Adjustable
Marketing Assets
Details
PRODUCT SPEC
2080g – Air
2340g – Coil
29"
35mm
Air Helms can be internally adjusted from 100-160mm, Coil Helms can be adjusted from 130-160mm. Galaxy is also available in 120mm and 130mm options.
64mm wide by 749mm tall
15mm x 110 Boost
44mm Offset
High speed compression
Low speed compression
Low speed rebound
Indexed travel adjust system
BAG0685-GALAXY Air 160MM
BAG0692-GALAXY Coil 160MM
