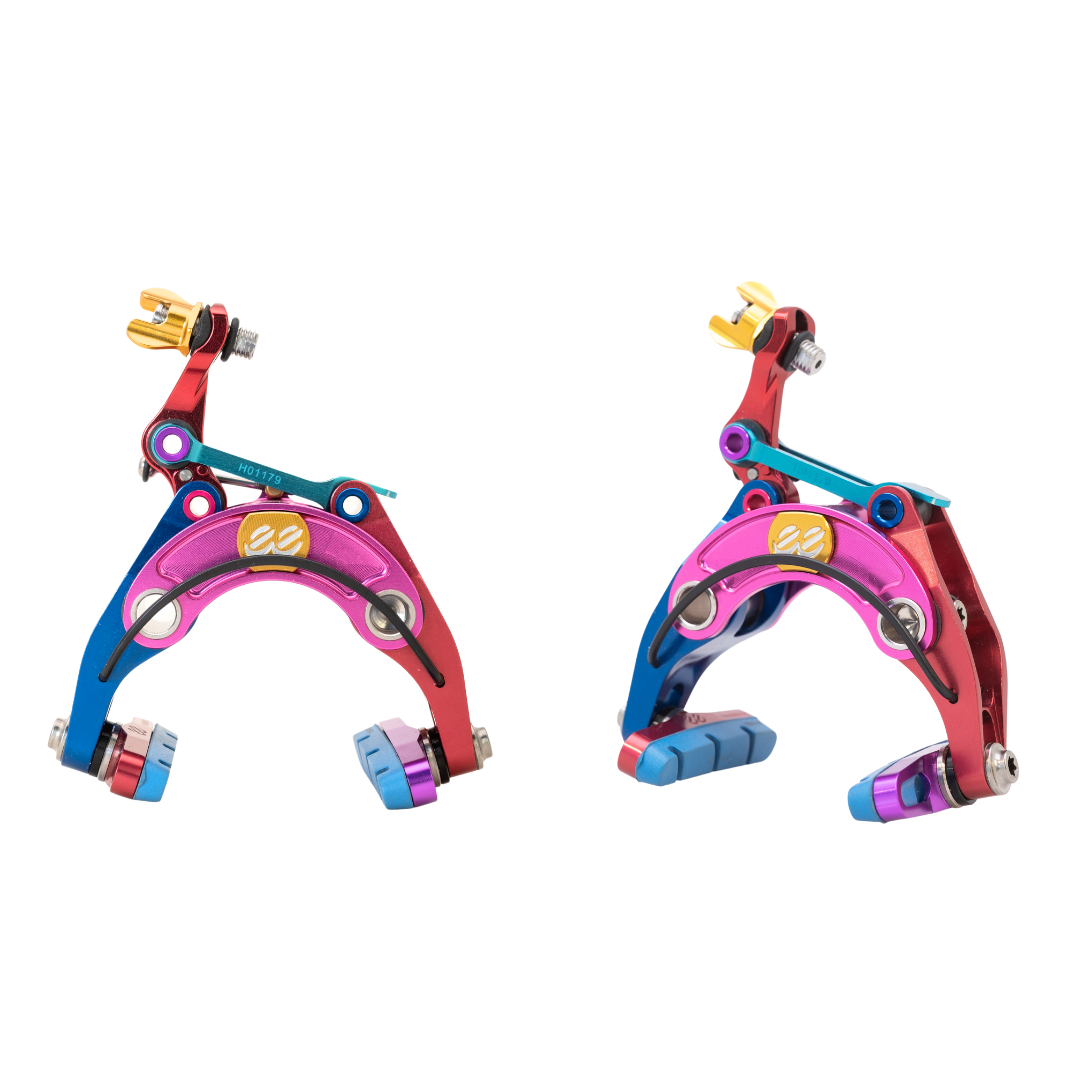

eeBrakes Tie-Dye II
Our newest limited edition brake - Tie-Dye II combines six bold colors to create the ultimate statement piece. Known for their extraordinary stopping power, incredible adjustability and striking design, eeBrakes are also half the weight of their competitors - truly setting them apart in the world of performance.
eeBrakes are a collaboration between acclaimed component designer Craig Edwards and Cane Creek. They are assembled by hand in our facility just outside of Asheville, North Carolina.
We have released two limited edition eeBrakes per year since 2017, each limited to a small quantity. The brakes have become a favorite for custom builders and enthusiasts looking to add character and stopping power to their bikes.
Tie-Dye II brakes are sold as a set of 2 (front & rear). There will only be 200 sets made.
Technical Documents
More Details
Perfect Cable Alignment

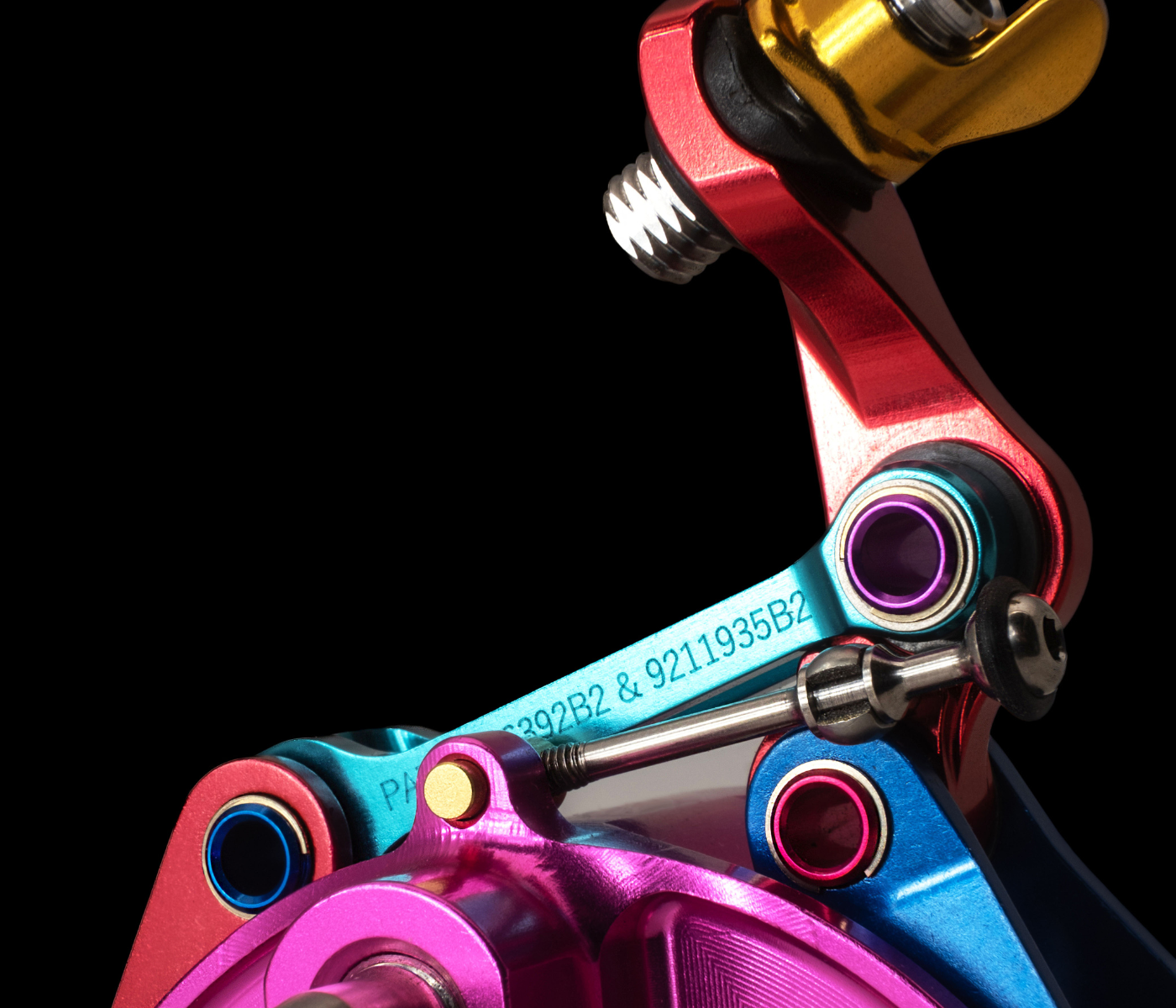

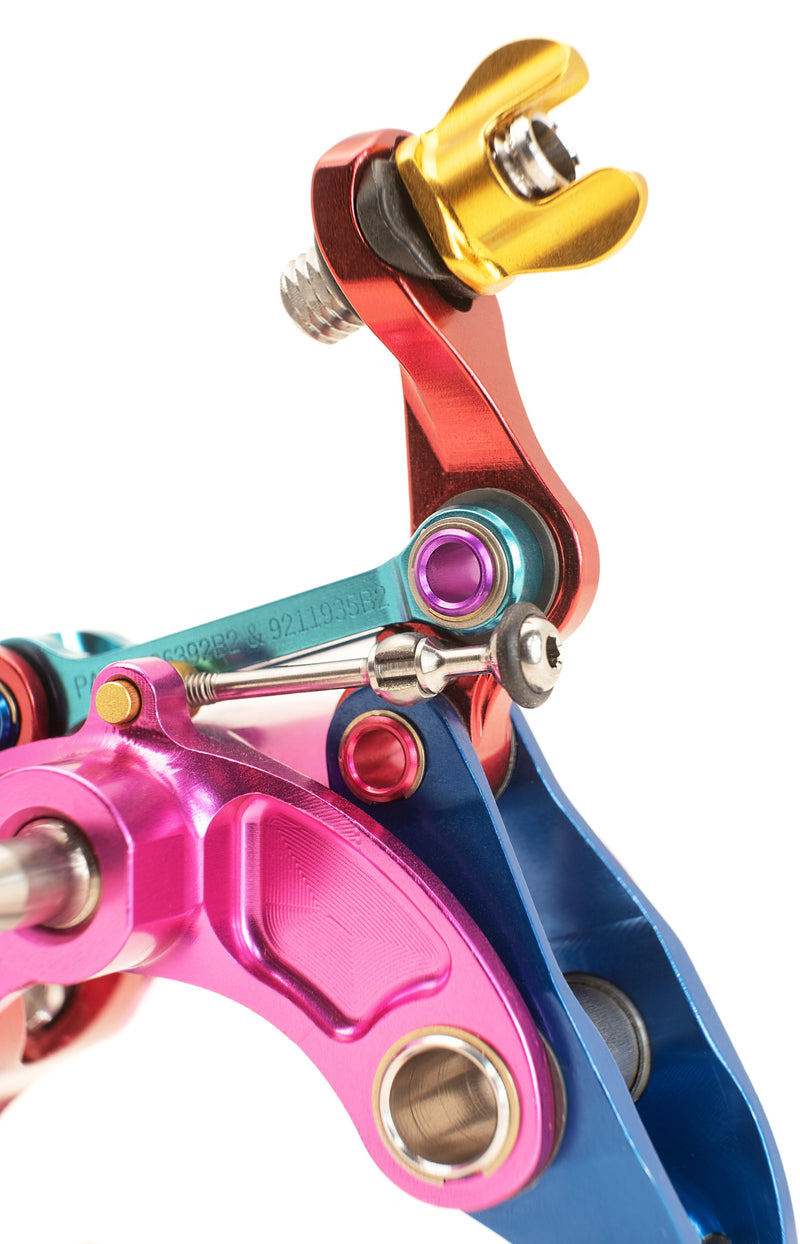

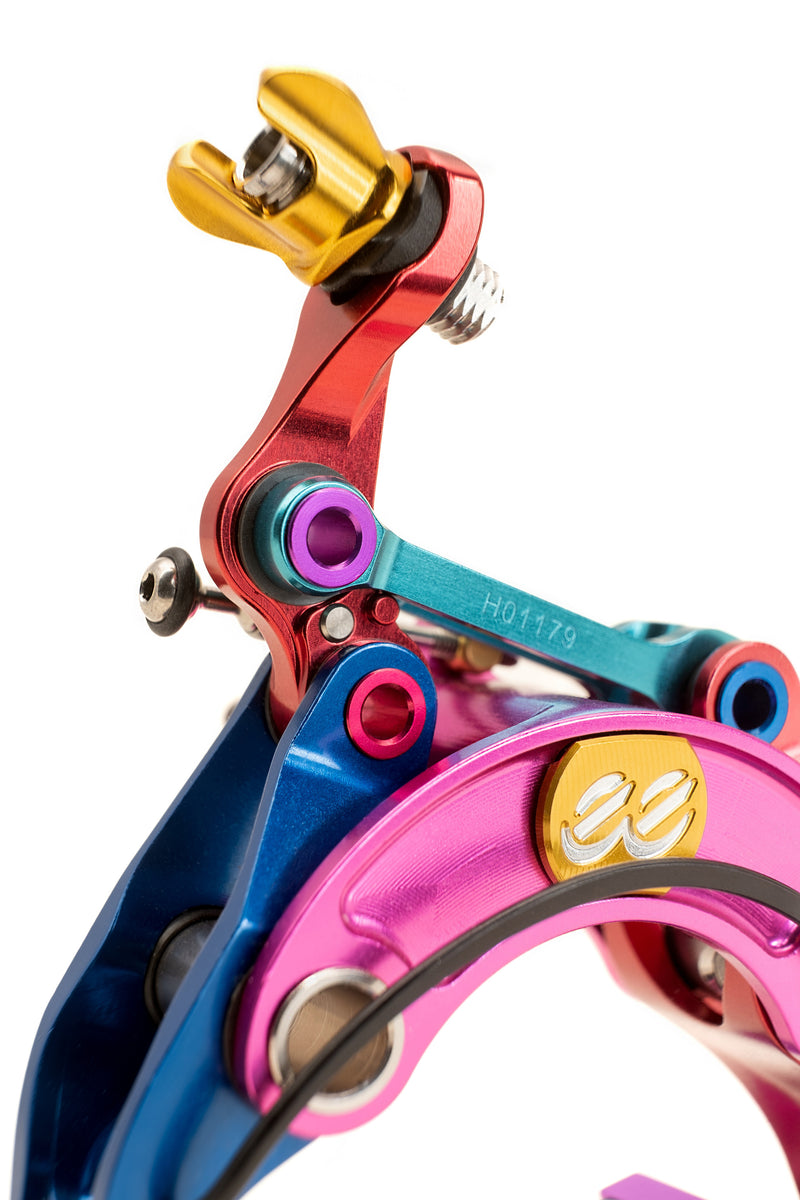

The titanium eeBrake cable adjuster pivots as the brake is applied, optimizing cable alignment during brake actuation. Also, the cable housing extends to lower tip of the cable adjustment screw eliminating added friction. That means, as the brake lever is squeezed, you get even and friction-free braking power.
Aerodynamic

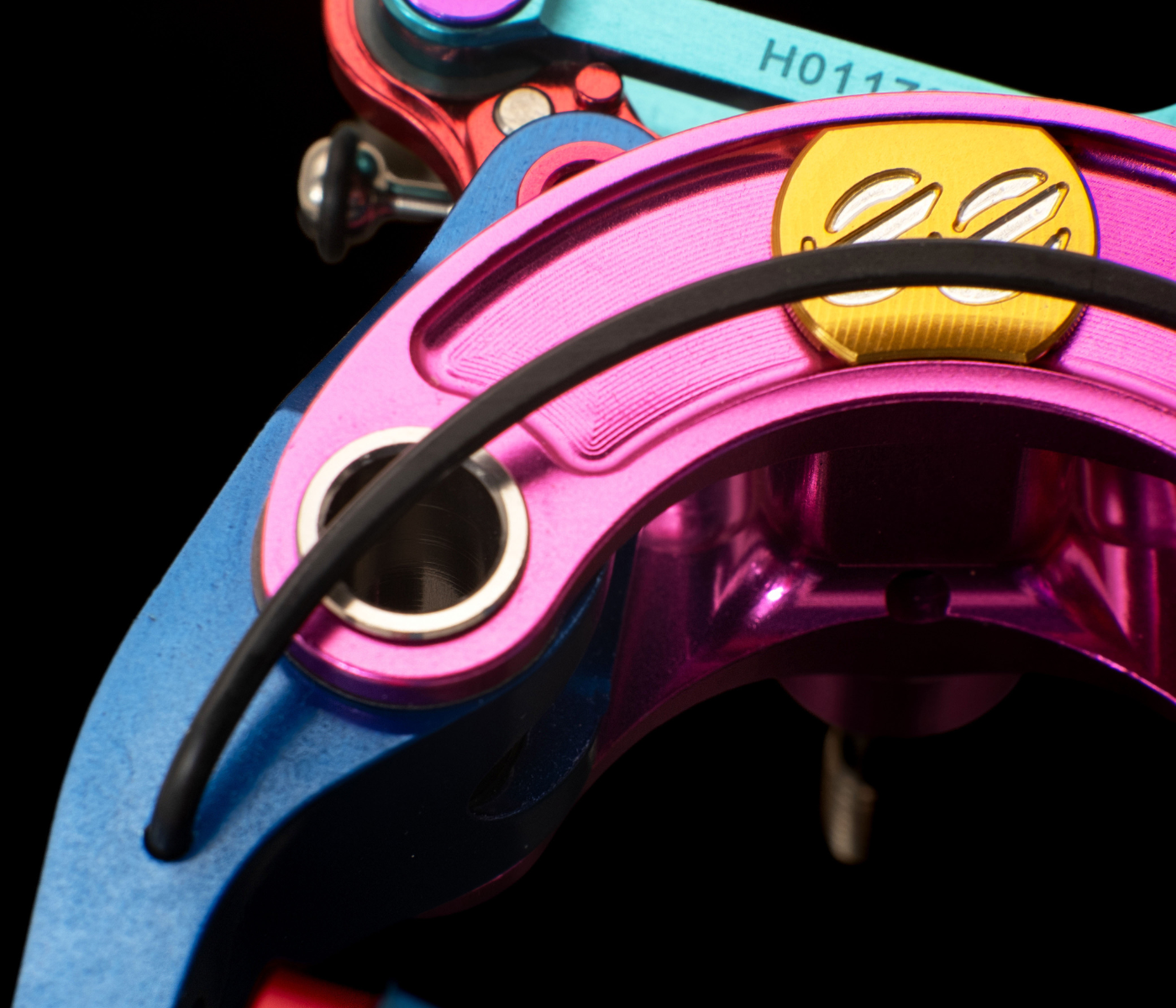

Cross Cable Path aligns the brake cable over the center of the brake. This alignment provides a graceful, clean line and moves cables into the “wind shadow” of the frame, providing an aerodynamic advantage over traditional brakes with their cables and lever arms off to one side of the caliper.
Marketing Assets
Details
PRODUCT SPEC
CNC High Grade Aluminum, Titanium, and Stainless Steel
19mm to 28mm
39mm to 49mm
Tool-free caliper centering adjustment
Wheel removal – quick release
Titanium Barrel adjuster w/ retention O-ring
T-25 Torx pad holder / cable clamp
Optimized to work with Shimano, Campagnolo, and SRAM levers
Two stage anodized engraved aluminum ee badge
DIRECT MOUNT 78.4 grams (Front), 78.2 grams (Rear)
REGULAR MOUNT 85.3 grams (Front), 83.7 grams (Rear)
3 Years
Carbon and Aluminum compatible brake pad inserts.
*Carbon compatible brake pads are included with every brake.
