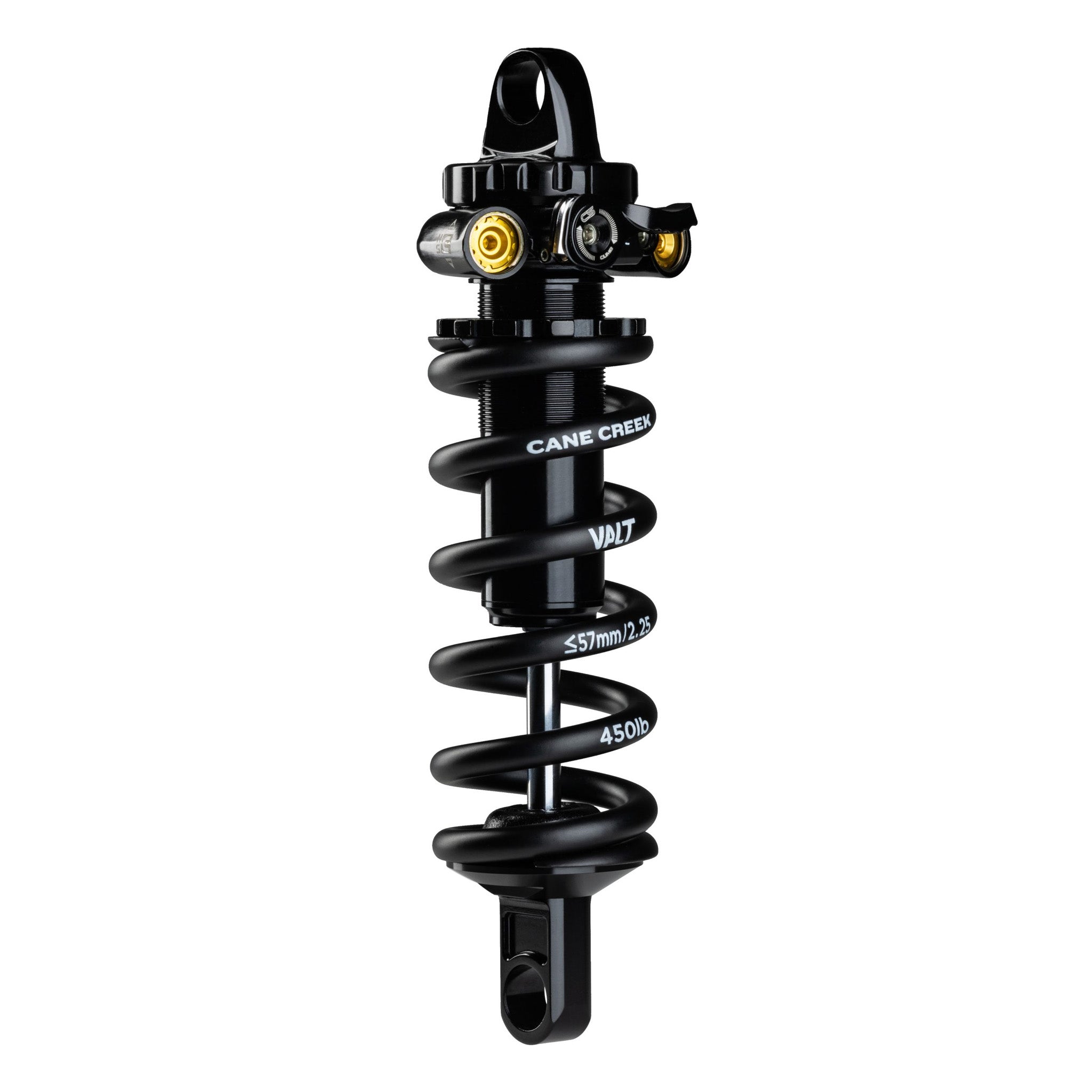

DBcoil IL G1

SKU: BAD1741K
Sale price$213.50 USD

DBcoil IL is the lightest weight coil shock on the market, while using 40-50% more damper oil compared to other shocks in its class. The DBcoil IL is the first ever twin-tube inline shock that packs in all of the function of a piggyback coil shock in a lighter and sleeker package.

All shocks are built to order by hand in our facility in North Carolina, USA.

For estimated build times see below:

  • Standard DBCoil IL shocks will ship within 5-10 business days

Not sure what spring you need? Check out our article Everything You Need To Know About Coil Springs

COIL IL shocks are not compatible with Specialized Stumpjumper and Levo frames.

Note: All Sales are final on DBcoil IL G1.

Need help tuning your shock? Visit our Rear Shock Tuning Guide

Technical Documents

Show details Collapse

More Details

Show details Collapse

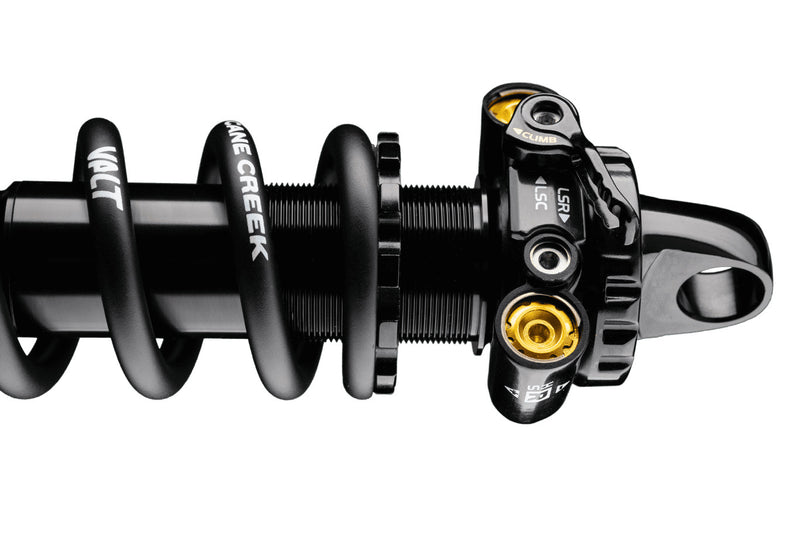

The DBcoil IL offers an unparalleled range of adjustability through external adjusters that independently control each phase of damping without crossover effects. High and low speed compression, and high and low speed rebound are independently adjusted.

Other inline shocks typically provide the user with a single rebound adjustment or rebound combined with limited pre-set low-speed compression. The easy tunability of DBcoil IL means a rider can make a quick trail-side change, increasing pop, plushness, or other features for personalized fine-tuning.

Marketing Assets

Show details Collapse


Details

Product Spec

Weight

~285 grams (weight varies by size)

Damping

Twin-tube independent compression and rebound in two high-speed and two low-speed damping circuits

Adjustments

4-way independent adjustment:

High speed compression
Low speed compression
High speed rebound
Low speed rebound

Spring preload Climb Switch On/off

Shaft Material

Induction-hardened 4130 steel

Shaft Diameter

8mm

Finish

Anodized and laser-etched

Mounting Interface

High performance low friction bushing 1/2" Universal Axle
