AngleSet
Change Your Game

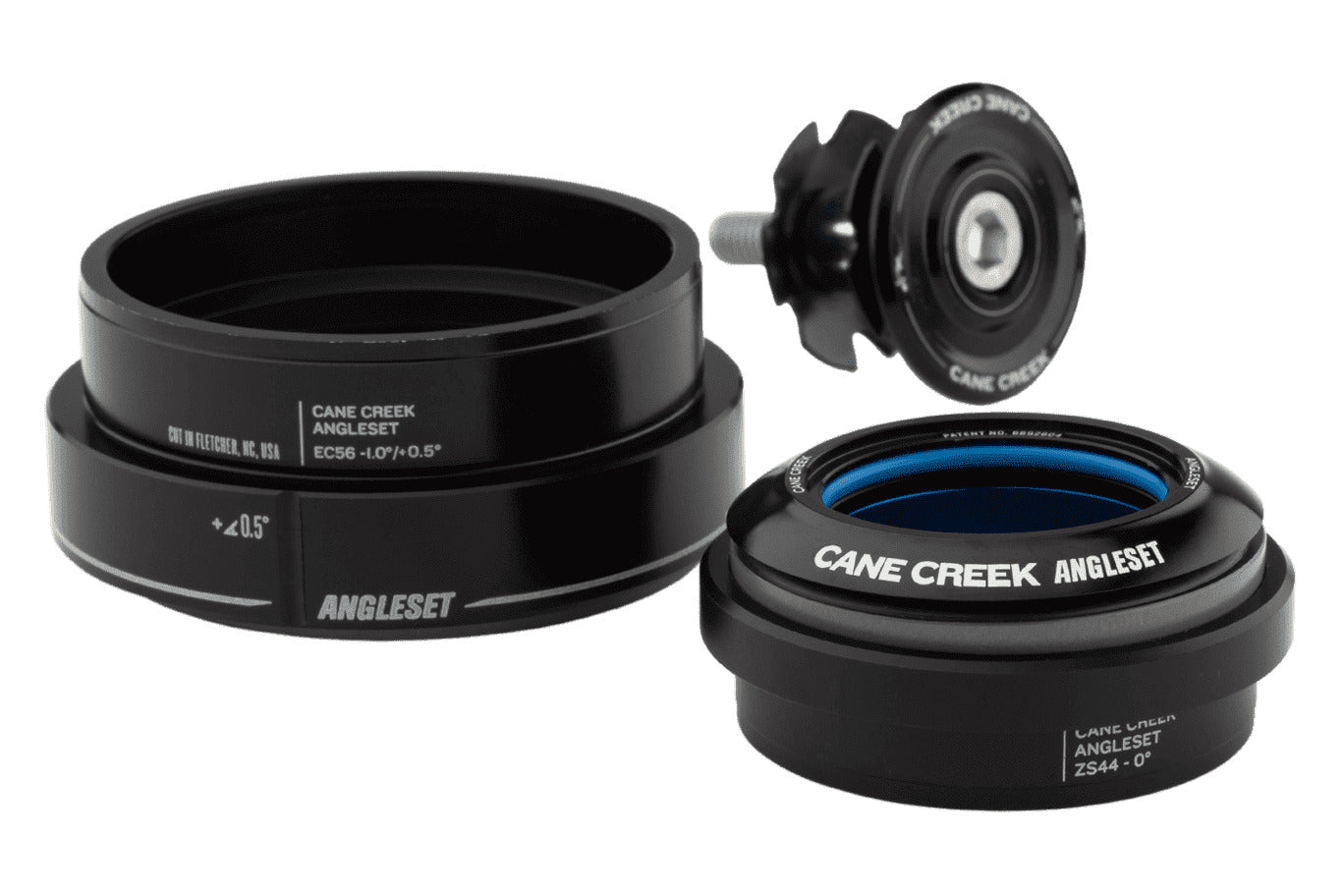

The award-winning AngleSet threadless headset makes it possible to change your game. You can transform the head angle of your mountain bike and dial in the perfect geometry to attack the trail with ease. The design of AngleSet is head-tube length independent and fits most popular head-tube standards for both tapered and straight forks.
Highlights:
- Up to 6 offset angle adjustments
- Steeper or slacker adjustments from 0.5 to 1.5 degrees
- 7075 T-6 Aluminum, internally contoured and relieved to minimize weight and maximize strength
- Dependable zinc coated, sealed bearings
- Fully face-sealed 30mm & 40mm crown race
Technical Documents
More Details

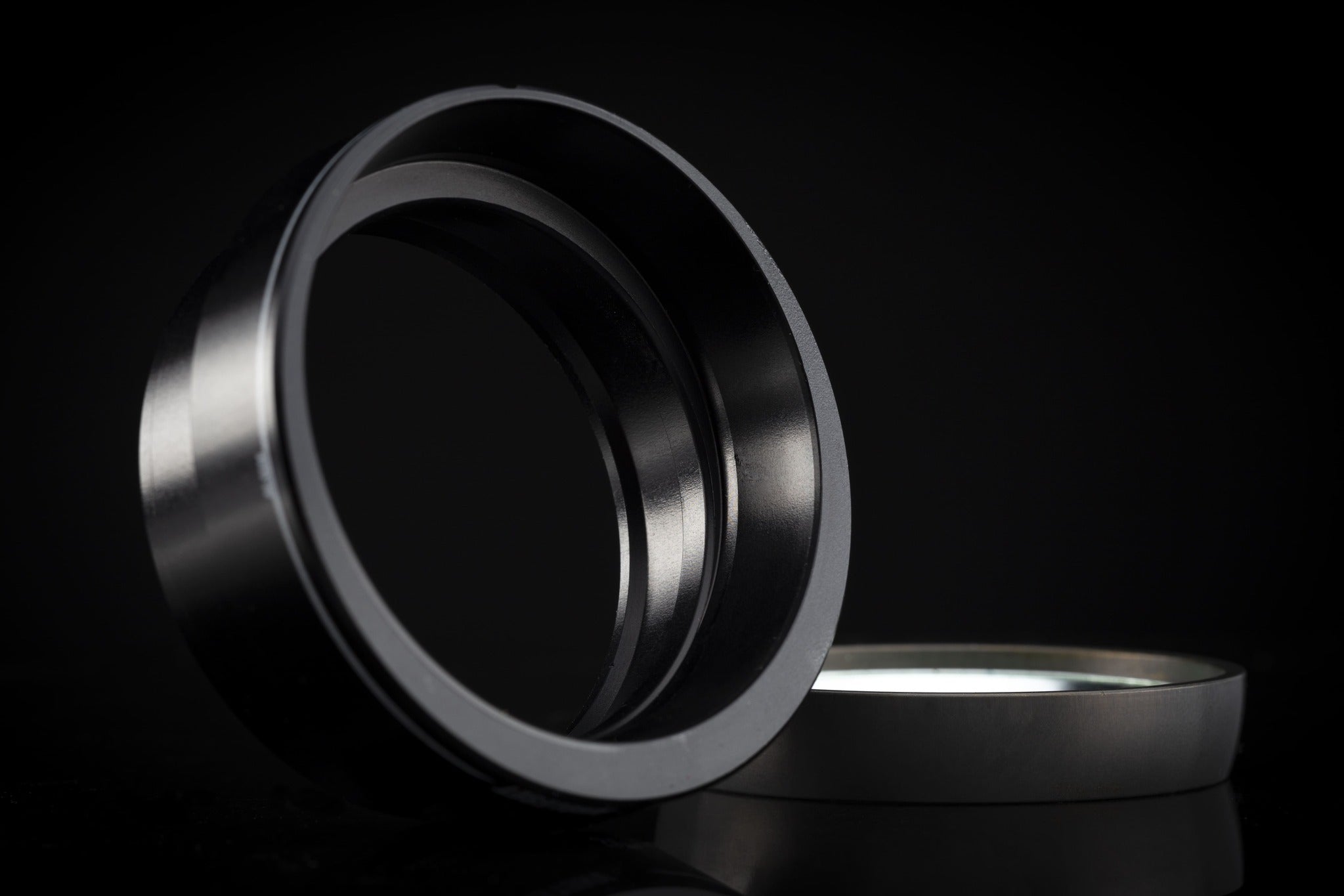

Featuring 7075 T-6 aluminum cups and covers, and long lasting Zinc coated sealed cartridge bearings, the AngleSet is the only option for riders looking to change their headtube angle without sacrificing quality and performance.
Marketing Assets
Link:
Details
PRODUCT SPEC
7075 T-6 Aluminum, Internally contoured and relieved to minimize weight and maximize strength
Low-friction upper bearing seal completely seals cup from contaminants and is fully captured by the top cover with no loose parts

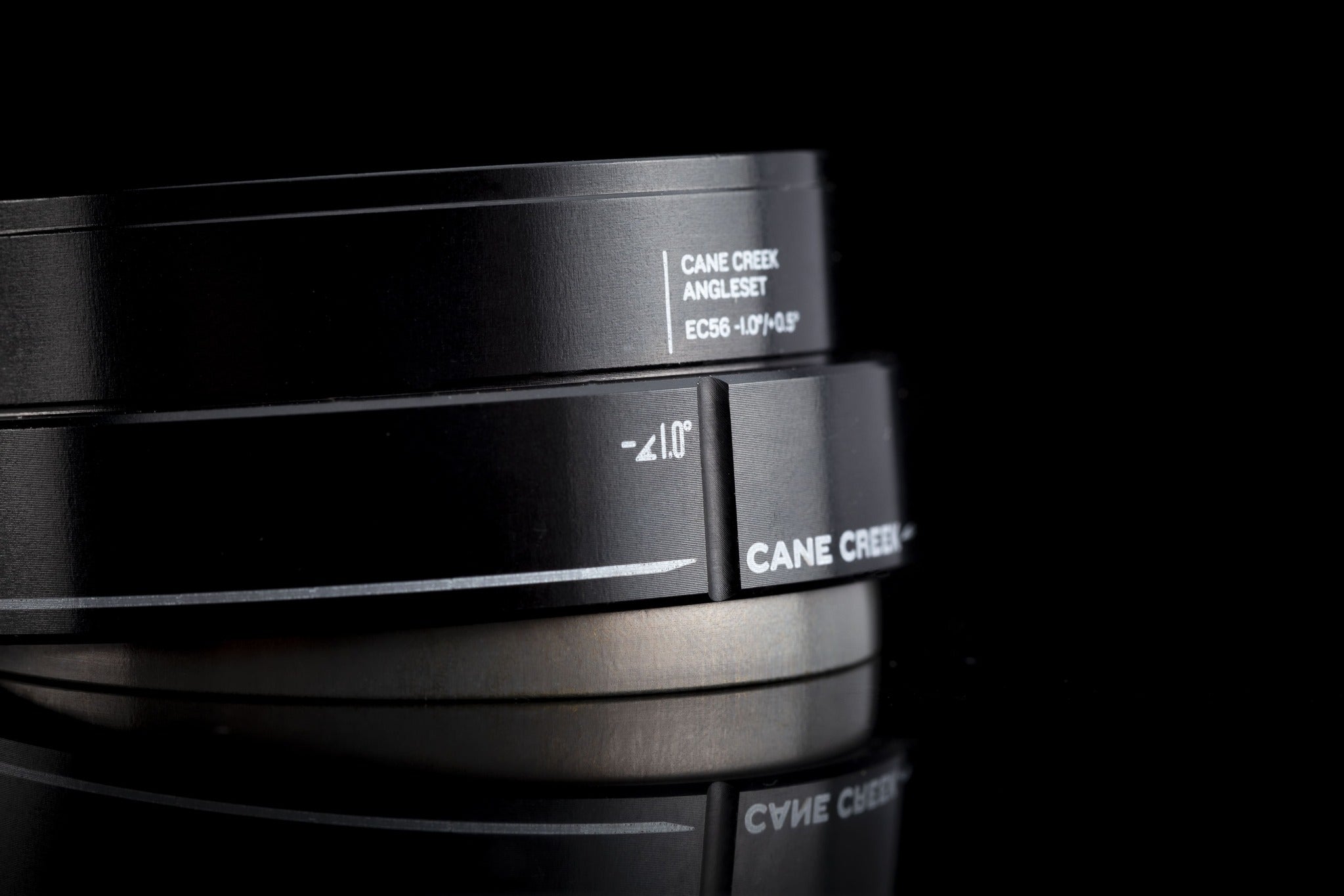

Steeper or Slacker +/-0.5, +/-1.0, +/-1.5

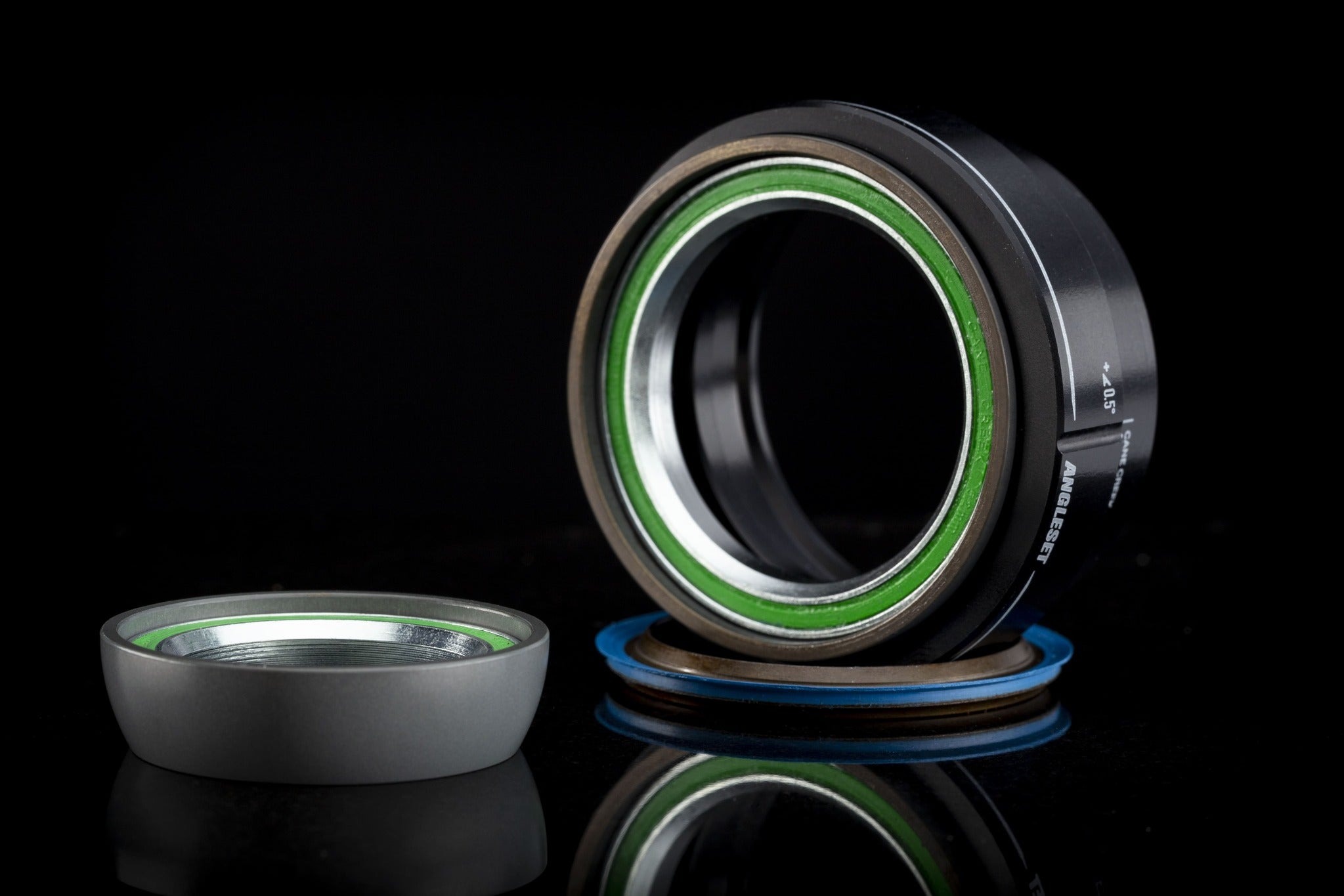

Dependable zinc coated, sealed bearings
Interlok® spacer compatible
Design is head-tube length independent
Fully face-sealed 30mm & 40mm crown race
